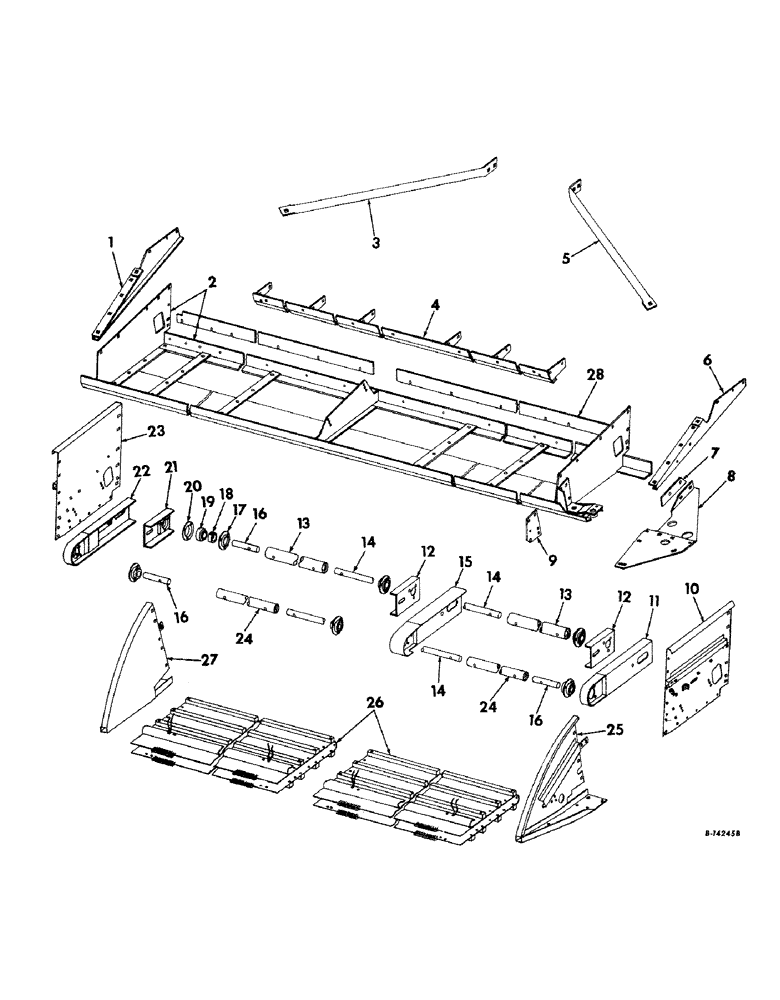

Запчасти Case IH 503 (022) - PLATFORM DRAPER EXTENSION, 16 FT RICE PLATFORM WITH 24 IN. OD AUGER (58) - ATTACHMENTS/HEADERS

1

937434R91

SECTION ASSY, platform draper, extension frame right

2шт.

5/16 X 1 C-Z MACH BOLT W/NUT

4шт.

3/8 X 1 C-Z CRG BOLT W/NUT

10шт.

7/16 X 1-1/4 C-Z MACH BOLT W/NUT

2шт.

1/2 X 1-1/4 C-Z MACH BOLT W/NUT

2шт.

5/16 C-Z LOCK WASHER

4шт.

3/8 C-Z LOCK WASHER

10шт.

7/16 C-Z LOCK WASHER

2шт.

1/2 C-Z LOCK WASHER

2шт.

15/32 X 1 X 11 GA WASHER

3шт.

2

937348R91

FRAME ASSY, platform draper extension, Serial no 2430 and below

1шт.

2

150526C91

FRAME ASSY, platform draper extension, Serial no. 2430 and above

1шт.

3/8 X 1-1/4 C-Z MACH BOLT W/NUT

8шт.

1/2 X 1-1/4 C-Z MACH BOLT W/NUT

1шт.

5/16 X 1 C-Z NO. 3 PLOW BOLT W/NUT

1шт.

7/16 X 1-1/2 C-Z NO. 3 PLOW BOLT W/NUT

1шт.

5/16 C-Z LOCK WASHER

1шт.

3/8 C-Z LOCK WASHER

18шт.

7/16 C-Z LOCK WASHER

1шт.

13/32 X 3/4 X 16 GA WASHER

18шт.

3

937894R91

PIPE ASSY, feeder brace, RH, Serial no. 2430 and below

1шт.

3/8 X 2-1/2 C-Z MACH BOLT W/NUT

1шт.

1/2 X 1-1/4 C-Z CRG BOLT W/NUT

3шт.

3/8 C-Z LOCK WASHER

1шт.

1/2 C-Z LOCK WASHER

3шт.

4

937345R91

SUPPORT ASSY, platform draper extension frame rear

1шт.

7/16 X 1-1/4 C-Z CRG BOLT W/NUT

12шт.

7/16 C-Z LOCK WASHER, Serial no. 2430 and below

12шт.

5

937893R91

PIPE ASSY, feeder brace, LH

1шт.

1/2 X 1-1/4 C-Z CRG BOLT W/NUT

3шт.

3/8 x 2-1/2 C-Z MACH BOLT W/NUT

1шт.

3/8 C-Z LOCK WASHER

1шт.

1/2 C-Z LOCK WASHER

3шт.

6

937433R91

SECTION ASSY, platform draper extension frame LH

2шт.

5/16 X 1 C-Z MACH BOLT W/NUT

2шт.

3/8 X 1 C-Z CRG BOLT W/NUT

10шт.

7/16 X 1-1/4 C-Z MACH BOLT W/NUT

2шт.

1/2 X 1-1/4 C-Z MACH BOLT W/NUT

2шт.

5/16 C-Z LOCK WASHER

2шт.

3/8 C-Z LOCK WASHER

10шт.

7/16 C-Z LOCK WASHER

2шт.

1/2 C-Z LOCK WASHER

2шт.

15/32 X 1 X 11 GA WASHER

3шт.

7

937340R1

STRAP, platform LH divider runner reinforcement section spacer

1шт.

8

937307R1

SECTION, divider runner LH support

1шт.

9

937342R1

STRIP, platform draper extension frame LH section

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

1шт.

5/16 C-Z LOCK WASHER

1шт.

10

937331R91

SIDE ASSY, platform draper extension frame LH, Serial no. 2430 and below

1шт.

10

152170C91

SIDE ASSY, platform draper extension left, Serial no. 2431 and above

1шт.

1/4 X 3/4 C-Z MACH BOLT W/NUT

4шт.

5/16 X 3/4 C-Z MACH BOLT W/NUT

1шт.

5/16 X 1 C-Z CRG BOLT W/NUT

3шт.

5/16 X 1 NO. 3 CD-Z PLOW BOLT W/NUT

5шт.

1/2 X 1 NO. 3 C-Z PLOW BOLT W/NUT

1шт.

1/2 X 1-1/4 NO. 3 C-Z PLOW BOLT W/NUT

1шт.

1/2 X 1-1/2 NO. 3 C-Z PLOW BOLT W/NUT

2шт.

1/4 C-Z NUT

1шт.

1/4 X 1/2 C-Z SLT-RD-HD MACH SCREW

1шт.

1/4 C-Z LOCK WASHER

9шт.

5/16 C-Z LOCK WASHER

10шт.

1/2 C-Z LOCK WASHER

4шт.

11

937361R91

SUPPORT ASSY, platform draper roller LH end

1шт.

1/2 X 1-1/2 C-Z CAP SCREW

1шт.

1/2 C-Z LOCK WASHER

1шт.

17/32 X 1 X 16 GA WASHER

1шт.

12

937318R91

CHANNEL ASSY, draper tightener bracket LH

2шт.

518813R1

7/16 X 7 C-Z MACH BOLT

1шт.

1/2 X 1-1/4 C-Z CAP SCREW

2шт.

1/2 C-Z LOCK WASHER

2шт.

17/32 X 1 X 16 GA WASHER

2шт.

13

937311R91

PIPE ASSY, platform draper rear roll

2шт.

14

937314R1

SHAFT, platform draper roller center

2шт.

441015R1

LOCK PIN,5/16" x 2 1/4", Slotted

2шт.

18424R1

5/16 X 1-7/8 SLT-SPRING PIN

2шт.

15

937360R92

SUPPORT ASSY, platform draper center

1шт.

1/2 X 1-1/2 C-Z CAP SCREW

1шт.

1/2 C-Z LOCK WASHER

1шт.

17/32 X 1 X 16 GA WASHER

1шт.

16

937315R1

SHAFT, draper roller end

3шт.

441015

5/16 X 2-1/4 SLT-SPRING PIN

1шт.

18424R1

5/16 X 1-7/8 SLT-SPRING PIN

2шт.

17

937518R91

FLANGE

ASSY, platform draper roller shaft bearing

6шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

9шт.

5/16 X 1 C-Z SLT-FIL-HD MACH SCREW

9шт.

5/16 C-Z NUT

18шт.

5/16 C-Z INTERNAL TOOTH LOCK WASHER

9шт.

5/16 C-Z LOCK WASHER

9шт.

18

455102R11

COLLAR

W/SET SCREW, locking

6шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 HEX-SOC-HD, cup-pt set screw

6шт.

19

625020R91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING, ball

6шт.

20

937517R1

FLANGE

platform draper roller shaft plain

6шт.

21

937319R91

CHANNEL ASSY, draper tightener bracket RH

1шт.

518813R1

7/16 X 7 C-Z MACH BOLT

1шт.

1/2 X 1-1/4 C-Z CAP SCREW

1шт.

1/2 C-Z LOCK WASHER

1шт.

17/32 X 1 X 16 GA WASHER

1шт.

22

937362R91

SUPPORT ASSY, platform draper roller RH end

1шт.

1/2 X 1-1/2 C-Z CAP SCREW

1шт.

1/2 C-Z LOCK WASHER

1шт.

17/32 X 1 X 16 GA WASHER

1шт.

23

937332R91

SIDE ASSY, platform draper extension frame RH, Serial no. 2430 and below

1шт.

23

152171C91

SIDE ASSY, platform draper extension right, Serial no. 2431 and above

1шт.

5/16 X 1 C-Z NO. 3 PLOW BOLT W/NUT

3шт.

1/4 X 1/2 C-Z SLT-RD-HD MACH SCREW

1шт.

1/4 C-Z LOCK WASHER

5шт.

5/16 C-Z LOCK WASHER

6шт.

24

937308R91

PIPE ASSY, platform draper front roller

2шт.

25

937343R91

DIVIDER ASSY, platform draper frame LH

1шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

4шт.

5/16 X 1/2 C-Z CAP SCREW

2шт.

5/16 C-Z LOCK WASHER

6шт.

26

937306R91

APRON ASSY, platform draper canvas, Special

2шт.

27

937344R91

DIVIDER ASSY, platform draper frame RH

1шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

4шт.

5/16 X 1/2 C-Z CAP SCREW

2шт.

5/16 C-Z LOCK WASHER

6шт.

28

150401C1

STRIP, platform draper extension retainer, Serial no. 2431 and above

2шт.
