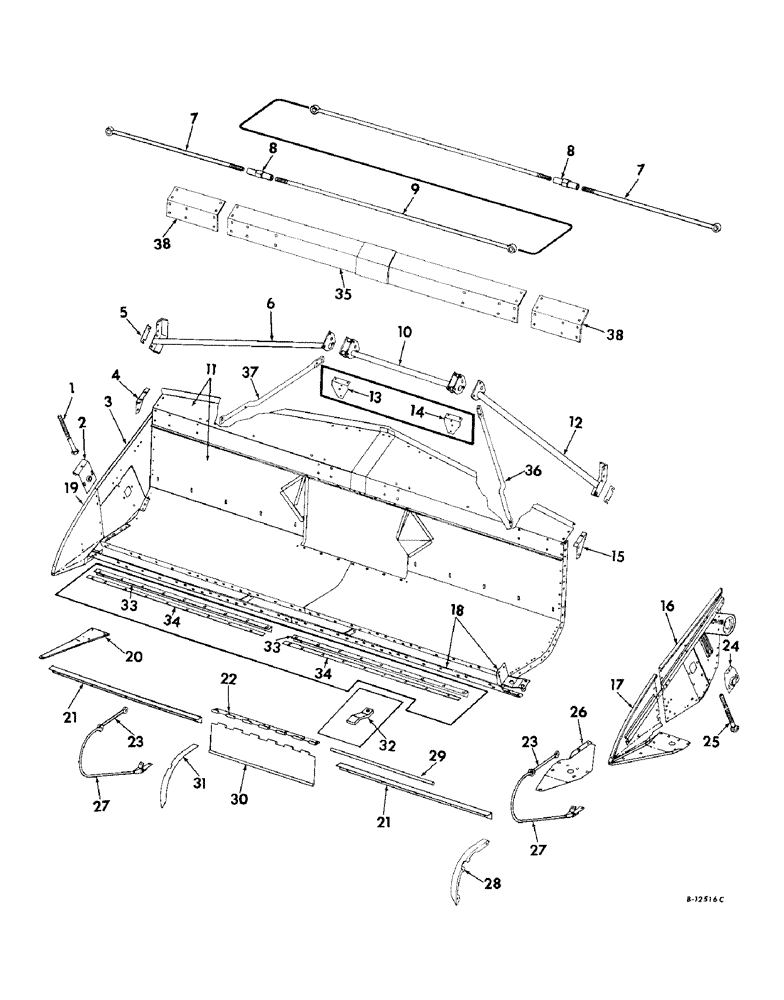

Запчасти Case IH 503 (017) - PLATFORM, NOT FOR USE WITH 16-FT RICE, 24 IN. O.D. AUGER (58) - ATTACHMENTS/HEADERS

1

565392R1

BOLT, platform auger RH adjusting, 3/8 x 6-1/2

1шт.

3/8 NUT

2шт.

13/32 X 1 X 16 GA WASHER

1шт.

2

569244R21

PLATE W/HUB, platform auger adjusting RH

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

3

633722R91

END W/STIFFENER AND SUPPORT, platform RH

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

1/2 X 1-1/4 CRG BOLT W/NUT

1шт.

5/16 X 1/2 MACH BOLT W/NUT

1шт.

11/32 X 3/4 X 16 GA WASHER

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

4

564911R1

GUSSET, platform support RH, Platform serial no. 1012 and below

1шт.

4

631293R1

GUSSET, platform upper support RH, Platform serial no. 1013 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

4шт.

5

570369R1

SHIM, platform lower brace outer

1шт.

5

587860R1

SHIM, platform lower brace outer

1шт.

6

585924R91

BRACE W/PIPE, platform lower RH 12-ft

1шт.

6

654790R91

BRACE W/PIPE, platform lower RH 13-ft

1шт.

6

583111R91

BRACE W/PIPE, platform lower RH 14-ft

1шт.

6

156145C91

BRACE ASSY, platform lower right 15-ft

1шт.

6

583131R91

BRACE W/PIPE, platform lower RH 16-ft

1шт.

6

583087R91

BRACE W/PIPE, platform lower RH 18-ft

1шт.

6

631278R91

BRACE W/PIPE, platform lower RH 20-ft

1шт.

1/2 X 1-3/4 CRG BOLT W/NUT

1шт.

7/16 X 1-1/4 CRG BOLT W/NUT

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

7

573062R1

ROD, platform lower truss, 14-ft, 15-ft, 16-ft and 20-ft

2шт.

7

631525R1

ROD, lower truss, 13-ft

2шт.

7

583094R1

ROD, lower truss, 18-ft

2шт.

5/8 X 1-3/4 MACH BOLT

2шт.

5/8 NUT

3шт.

5/8 LOCK WASHER

2шт.

8

M4175

TURNBUCKLE, platform truss rod

2шт.

5/8 NUT

2шт.

9

654796R1

ROD, platform upper truss 13-ft

2шт.

9

583114R1

ROD, upper truss, 14-ft

2шт.

9

588583R1

ROD, platform upper truss 15-ft

2шт.

9

583134R1

ROD, upper truss, 16-ft

2шт.

9

573062R1

ROD, upper truss, 18-ft

2шт.

9

631282R1

ROD, upper truss, 20-ft

2шт.

5/8 X 1-3/4 MACH BOLT W/NUT

2шт.

5/8 LOCK WASHER

2шт.

10

583023R91

LIFT W/GUSSET AND SPACER, platform

1шт.

1/2 X 2-3/4 MACH BOLT W/NUT

1шт.

1/2 X 3 MACH BOLT W/NUT

1шт.

1/2 LOCK WASHER

1шт.

11

585911R91

PLATFORM W/BACKSHEET AND BOTTOM 12-FT

1шт.

11

654736R91

PLATFORM W/BACKSHEET AND BOTTOM 13-FT, Serial no. 4765 and below

1шт.

11

159660C91

PLATFORM 13-FT, Serial no 4766 and above

1шт.

11

583096R91

PLATFORM W/BACKSHEET AND BOTTOM 14-FT

1шт.

11

156144C91

PLATFORM ASSY, 15-ft platform, Serial no. 6287 and below

1шт.

11

159693C91

PLATFORM 15-ft, Serial no. 6288 and above

1шт.

11

583115R91

PLATFORM W/BACKSHEET AND BOTTOM 16-FT

1шт.

11

583063R91

PLATFORM W/BACKSHEET AND BOTTOM 18-FT

1шт.

11

631260R91

PLATFORM W/BACKSHEET AND BOTTOM 20-FT

1шт.

5/16 X 1/2 CRG BOLT W/NUT

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

7/16 X 1 CRG BOLT W/NUT

1шт.

7/16 X 1-1/2 CRG BOLT W/NUT

1шт.

1/2 X 1-3/4 CRG BOLT W/NUT

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

1/2 X 1-1/2 MACH BOLT W/NUT

1шт.

1/4 X 5/8 WAGON-BOX-HD RIVET

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

7/16 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

1шт.

12

585922R91

BRACE W/PIPE, platform lower LH 12-ft

1шт.

12

654789R91

BRACE ASSY, platform lower LH 13-ft

1шт.

12

156140C91

BRACE ASSY, platform lower left 15-ft

1шт.

12

583107R91

BRACE W/PIPE, platform lower LH 14-ft

1шт.

12

583128R91

BRACE W/PIPE, platform lower LH 16-ft

1шт.

12

583084R91

BRACE W/PIPE, platform lower LH 18-ft

1шт.

12

631274R91

BRACE W/PIPE, platform lower LH 20-ft

1шт.

7/16 X 1-1/2 CRG BOLT W/NUT

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

1/2 X 1-3/4 CRG BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

13

631366R1

REINFORCEMENT, platform top rail RH, Serial no. 2430 and below, 13-ft serial no 2431 to 4765, 14-ft serial no 2431 and above

1шт.

13

159649C1

REINFORCEMENT, platform top rail RH, 13-ft serial no. 4766 and above

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

7/16 X 3/4 MACH BOLT W/NUT

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

3/8 LOCK WASHER

1шт.

7/16 LOCK WASHER

1шт.

Q1505

WASHER

13/32 X 1 X 16 GA WASHER

2шт.

W6652

WASHER

15/32 X 1 X 11 GA WASHER

1шт.

14

631365R1

STIFFENER

REINFORCEMENT, platform top rail LH, Serial no. 2430 and below, 13-ft serial no 2431 to 4765, 14-ft serial no 2431 and above

1шт.

14

159648C1

REINFORCEMENT, platform top rail LH, 13-ft serial no. 4766 and above

1шт.

3/8 X 1 MACH BOLT

1шт.

7/16 X 3/4 MACH BOLT W/NUT

2шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

3/8 LOCK WASHER

2шт.

7/16 LOCK WASHER

2шт.

Q1505

WASHER

13/32 X 1 X 16 GA WASHER

2шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

1шт.

15

564910R1

GUSSET, platform upper support LH, Platform serial no. 1012 and below

1шт.

15

631292R1

GUSSET, platform upper support LH, Platform serial no. 1013 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

4шт.

16

633721R91

END W/STIFFENER AND SUPPORT, platform LH

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

7/16 X 1 CRG BOLT W/NUT

1шт.

7/16 X 1-1/2 CRG BOLT W/NUT

1шт.

1/2 X 1-1/4 CRG BOLT W/NUT

1шт.

1/2 X 1-1/2 CRG BOLT W/NUT

1шт.

5/16 X 1/2 MACH BOLT W/NUT

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

3/8 X 1-1/4 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

7/16 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

11/32 X 3/4 X 16 GA WASHER

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

15/32 X 1 X 16 GA WASHER

1шт.

17

627812R91

DIVIDER W/STIFFENER AND STRAP, LH, Not for use with windrow special, Serial no., Serial Range: 501-1470

1шт.

17

634557R91

DIVIDER W/STIFFENER AND STRAP, LH, For use with windrow special, Serial no., Serial Range: 501-1470

1шт.

17

634557R91

DIVIDER W/STIFFENER AND STRAP, LH, regular, Serial no. 1471 and above

1шт.

5/16 X 1/2 CRG BOLT W/NUT

2шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

1/4 NUT

1шт.

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

5/16 LOCK WASHER

4шт.

1/4 LOCK WASHER

1шт.

18

585921R91

SUPPORT W/ANCHOR, cutter bar 12-ft

1шт.

18

654768R91

SUPPORT W/ANCHOR, cutter bar 13-ft, Serial no. 2430 and below

1шт.

18

939612R91

SUPPORT W/ANCHOR, cutter bar 13-ft, Serial no. 2431 and above

1шт.

18

583160R91

SUPPORT W/ANCHOR, cutter bar 14-ft, Serial no. 2430 and below

1шт.

18

939613R91

SUPPORT ASSY, cutter bar 14-ft, Serial no. 2431 and above

1шт.

18

156139C91

SUPPORT ASSY, cutter bar 15-ft

1шт.

18

583159R91

SUPPORT W/ANCHOR, cutter bar 16-ft, Serial no. 2430 and below

1шт.

18

939614R91

SUPPORT ASSY, cutter bar 16-ft, Serial no. 2431 and above

1шт.

18

583157R91

SUPPORT W/ANCHOR, cutter bar 18-ft, Serial no. 2430 and below

1шт.

18

939615R91

SUPPORT ASSY, cutter bar 18-ft, Serial no. 2431 and above

1шт.

18

631273R91

SUPPORT W/ANCHOR, cutter bar 20-ft, Serial no. 2430 and below

1шт.

18

939616R91

SUPPORT ASSY, cutter bar 20-ft, Serial no. 2431 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

7/16 X 1 CRG BOLT W/NUT

1шт.

7/16 X 1-1/4 CRG BOLT W/NUT

1шт.

1/2 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

7/16 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

19

627819R91

DIVIDER W/STIFFENER AND STRAP, RH, Not for use with windrow special, Serial no., Serial Range: 501-1470

1шт.

19

634558R91

DIVIDER W/STIFFENER AND STRAP, RH, For use with windrow special, Serial no., Serial Range: 501-1470

1шт.

19

634558R91

DIVIDER W/STIFFENER AND STRAP, RH, regular, Serial no. 1471 and above

1шт.

5/16 X 1/2 CRG BOLT W/NUT

4шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

1/4 NUT

1шт.

1/4 X 1/2 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

5/16 LOCK WASHER

5шт.

20

633293R1

STIFFENER, platform RH divider runner, Not for use with windrow special, Serial no., Serial Range: 501-1470

1шт.

20

634580R1

PLATE

STIFFENER, platform RH divider runner, For use with windrow special, Serial no., Serial Range: 501-1470

1шт.

20

634580R1

PLATE

STIFFENER, platform RH divider runner, regular, Serial no. 1471 and above

1шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

3/8 X 1-1/4 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

5шт.

21

585918R1

STRIPPER, platform auger, 12-ft

2шт.

21

583105R1

STRIPPER, platform auger, 14-ft

2шт.

21

583126R1

STRIPPER, platform auger, 16-ft

2шт.

21

583095R1

STRIPPER, platform auger, 18-ft

2шт.

21

631270R1

STRIPPER, platform auger, 20-ft

2шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3420H

13/32 X 1-3/4 X 16 GA WASHER

1шт.

22

583031R1

HINGE, feeder front shield door

1шт.

23

564825R1

LINK, divider rod, Not for use w/24 in. OD auger

1шт.

7/16 X 1-1/2 WAGON BOX-HD RIVET

2шт.

15/32 X 1 X 11 GA WASHER

4шт.

24

564810R91

PLATE W/HOUSING, platform auger, adjusting left

1шт.

25

M86308

BOLT, platform auger LH adjusting

1шт.

3/8 NUT

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

26

633292R1

STIFFENER, platform LH divider runner, Not for use with windrow special, Serial no., Serial Range: 501-1470

1шт.

26

634579R1

PLATE

STIFFENER, platform LH divider runner, For use with windrow special, Serial no., Serial Range: 501-1470

1шт.

26

634579R1

PLATE

STIFFENER, platform LH divider runner, regular, Serial no. 1471 and above

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

1/2 X 1-1/2 CRG BOLT W/NUT

3шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

3шт.

1/2 LOCK WASHER

3шт.

27

568309R91

ROD

W/LINK, divider, Includes ref. no. 23, Not for use w/24 in. OD auger

2шт.

28

568443R2

DEFLECTOR, platform end sheet LH, Regular for rice, Special for grain, For 20 in. OD auger

1шт.

1/4 NUT

4шт.

1/4 X 1/2 SLT-HD-HD MACH SCREW

3шт.

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

4шт.

29

583033R1

ROD, feeder front shield door hinge

1шт.

30

583030R1

DOOR, feeder front shield

1шт.

31

568444R2

DEFLECTOR, platform end sheet RH, Regular for Rice, Special for grain, For 20 in. OD auger

1шт.

1/4 NUT

4шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

4шт.

32

936544R1

BRACKET, platform extension support, Less cutting parts, Serial no. 1471 and above

3шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

33

654776R1

ANGLE, auger stripper LH 13-ft

1шт.

33

156155C1

ANGLE, auger stripper LH 15-ft

1шт.

33

654777R1

ANGLE, auger stripper RH 13-ft

1шт.

33

156156C1

ANGLE, auger stripper RH 15-ft

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

1/2 X 1-1/4 CRG BOLT W/NUT

1шт.

3/8 MED LOCK WASHER

1шт.

1/2 MED LOCK WASHER

1шт.

34

654778R1

STRIPPER, platform auger, 13-ft

2шт.

34

156154C1

STRIPPER, platform auger, 15-ft

2шт.

35

156126C91

PLATE ASSY, platform upper rail 15-ft, Serial no. 6287 and below

1шт.

35

159704C91

SUPPORT ASSY, platform upper rail 15-ft, Serial no. 6288 and above

1шт.

35

150797C91

PLATE ASSY, platform upper rail 16-ft, Serial no. 2431 and above

1шт.

35

150802C91

PLATE ASSY, platform upper rail, 18-ft, Serial no. 2431 and above

1шт.

35

150809C91

PLATE ASSY, platform upper rail, 20-ft, Serial no. 2431 and above

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

1/2 X 1 CRG BOLT W/NUT

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

1/2 X 1-1/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

36

150800C1

BRACE, feeder to platform LH, 16-ft, 18-ft and 20-ft, Grain serial no. 2431 and above

1шт.

1/2 X 1-1/4 C-Z CRG BOLT W/NUT

3шт.

3/8 X 2-1/2 C-Z MACH BOLT W/NUT

1шт.

3/8 C-Z LOCK WASHER

1шт.

1/2 C-Z LOCK WASHER

3шт.

36

937893R91

PIPE ASSY, feeder to platform LH brace, 16-ft rice, Serial no. 2431 and above

1шт.

550618R1

17/32 X 1-1/2 X 3/16 WASHER

1шт.

1/2 X 1-1/4 C-Z CRG BOLT W/NUT

3шт.

3/8 X 2-1/2 C-Z MACH BOLT W/NUT

1шт.

3/8 C-Z LOCK WASHER

1шт.

1/2 C-Z LOCK WASHER

3шт.

550618R1

17/32 X 1-1/2 X 3/16 WASHER

1шт.

37

150801C1

BRACE, feeder to platform RH, 16-ft, Serial no. 2431 and above

1шт.

37

150808C1

BRACE, feeder to platform RH, 18-ft, Serial no. 2431 and above

1шт.

37

150813C1

BRACE, feeder to platform RH, 20-ft, Serial no. 2431 and above

1шт.

1/2 X 1-1/4 C-Z CRG BOLT W/NUT

3шт.

3/8 X 2-1/2 C-Z MACH BOLT W/NUT

1шт.

3/8 C-Z LOCK WASHER

1шт.

1/2 C-Z LOCK WASHER

3шт.

550618R1

17/32 X 1-1/2 X 3/16 WASHER

1шт.

38

150843C1

SHEET, platform upper rail LH reinforcing, 14-ft rice, Serial no. 2431 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

38

150844C1

SHEET, platform upper rail RH reinforcing, 14-ft rice, Serial no. 2431 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

2шт.
