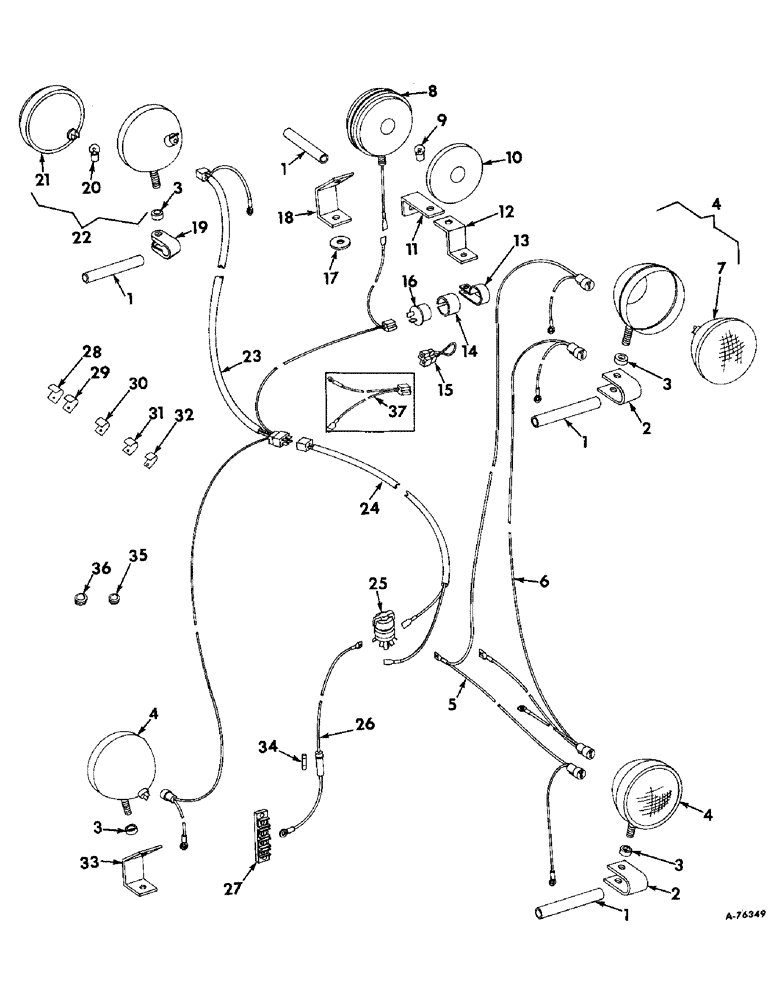

Запчасти Case IH 503 (245) - LIGHTING PARTS (55) - ELECTRICAL SYSTEMS

1

U17570

SPACER,1/2" X-Strng Pipe x 4 11/16"

PIPE, light pivot, 1 used w/o operators cab, 4 used w/operators cab

1шт.

18790R1

BOLT

3/8 x 5-1/2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

575807R1

WASHER

13/32 x 1 x 11 ga

1шт.

2

561916R1

CLAMP, headlight, Not used on combines w/operators cab

2шт.

3

49069D

SPACER

headlight

4шт.

4

376849R91

HEADLIGHT

LIGHT ASSY, 12 volt, Includes ref no. 7

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

5

155926C92

WIRE ASSY, head light front, Not operators cab

1шт.

6

155927C92

WIRE ASSY, head light front, Operators cab

1шт.

7

373662R91

LAMP

UNIT ASSY, headlight sealed beam

3шт.

8

394129R91

LIGHT

ASSY, flasher, Includes ref nos. 9 and 10

1шт.

120371

NUT,1/2"-20, G5

1шт.

9

9417866

BULB,C6, #1156, 12.8V

LAMP, no. 1156-12 volt

1шт.

10

396585R1

LENS

warning light amber

1шт.

10

397442R1

LENS, warning light red

1шт.

11

158747C1

ANGLE, flasher light bracket, For combines w/28.1/26-26 main wheel tires

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

158746C1

BRACE, flasher light, For use w/operators cab

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

394133R1

FASTENER

CLAMP, flasher mounting

1шт.

14

394134R1

SEAL

HOSE, flasher mounting absorber

1шт.

15

394473R91

CABLE ASSY, flasher light jumper

1шт.

16

394132R91

FLASHER UNIT

FLASHER ASSY

1шт.

17

394262R1

WASHER

flasher light

1шт.

18

561915R1

BRACKET

flasher light mounting

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach, Not for use w/operators cab

1шт.

21043R1

BOLT, 5/16 x 5-3/4 C-Z hex-hd mach, For use w/operators cab

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

350920R1

CLAMP

light, 1 used w/o operators cab, 3 used w/operators cab

1шт.

20

455490

BULB,C-6, #1003, 12V, .94W

tail light

1шт.

21

371461R91

LENS

UNIT, rear light sealed beam

1шт.

22

377102R91

NO LONGER SERVICED

LIGHT ASSY, rear lamp and tail, Includes ref nos. 20 and 21

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

23

161142C91

HARNESS ASSY, light rear cable

1шт.

24

161141C91

HARNESS ASSY, lights front cable

1шт.

25

376851R91

LIGHT SWITCH

SWITCH ASSY, light

1шт.

26

161140C91

WIRE ASSY, primary

1шт.

27

565481R91

BAR

BLOCK ASSY, junction

1шт.

100779

BOLT,Rd Hd, #12 - 24 x 3/4"

SCREW, no 12 x 3/4 slt-rd-hd mach

2шт.

103102

NUT, no. 12 sq mach screw

2шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

2шт.

28

NOT USED

1шт.

29

362127R1

CLIP

light rear cable

7шт.

30

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP

1шт.

31

362667R1

CLIP

light rear cable

1шт.

32

702093C1

CABLE TIE

CLAMP, light cable

9шт.

33

561915R1

BRACKET

grain tank light

1шт.

34

432644

FUSE,20 Amp, Type SFE

20 amp 1-1/4 in. long

1шт.

35

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

plain no 95 diagonal cut

1шт.

36

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

1/4 rubber

1шт.

37

155146C91

CABLE ASSY, flasher light, Serial no. 6287 and below

1шт.
