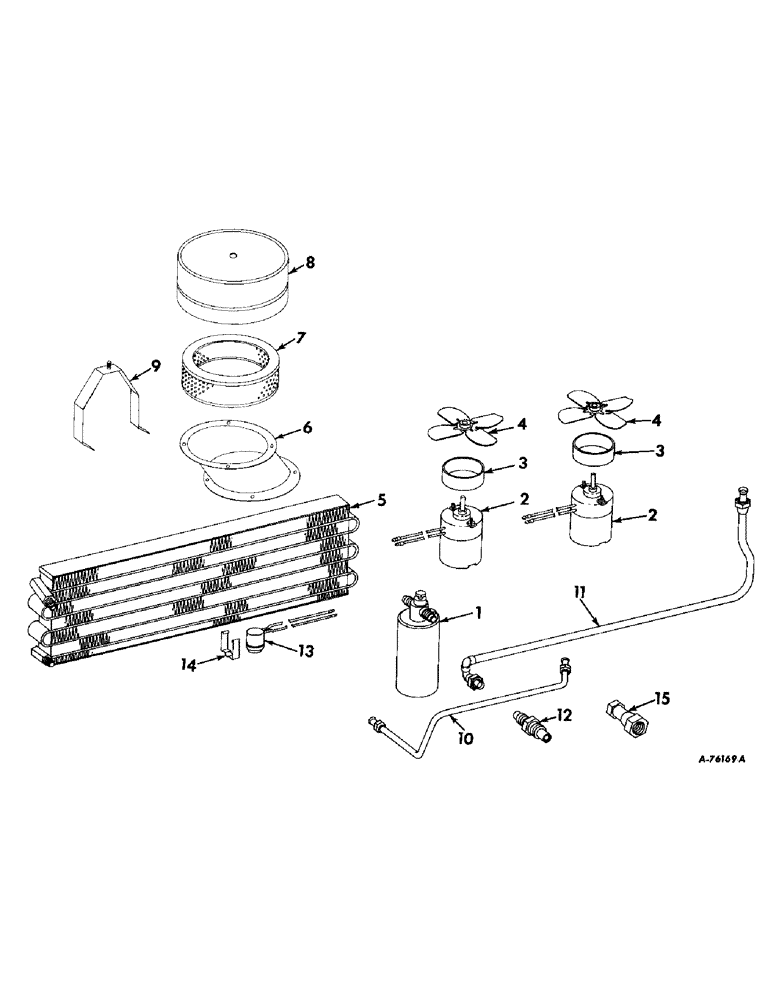

Запчасти Case IH 503 (274) - CONDENSOR ASSEMBLY COMPONENTS, FOR CABS WITH SIDE MOUNTED CONDENSER (50) - CAB CLIMATE CONTROL

155486C91

CONDENSER ASSY, air conditioning, Includes the following parts

1шт.

1

155485C91

RECEIVER ASSY, filter, dryer and

1шт.

2

155487C91

MOTOR ASSY, condenser

2шт.

3

155493C1

RING, rubber motor insulator

2шт.

4

161170C91

BLADE ASSY, fan

2шт.

140880

SCREW, no. 10 x 1/4 hex-soc-hd cup-pt-set

2шт.

5

155489C91

CORE ASSY, condenser

1шт.

6

161172C1

SUPPORT, filter

2шт.

7

155969C91

ELEMENT

FILTER, cartridge

2шт.

8

156076C91

COVER ASSY, filter

2шт.

9

161171C91

BRACE ASSY, filter cover

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

86627130

WING NUT,1/4"-20

NUT, 1/4 C-Z wing

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

10

155480C91

TUBE W/FITTINGS, Serial Range: condenser-receiver

1шт.

11

155481C91

TUBE W/FITTINGS, Serial Range: condenser-discharge

1шт.

12

155723C91

COUPLER ASSY, 1/2 in. tube male

1шт.

426099

NUT,3/4"-16, G5

3/4-16 C-Z hex.

1шт.

13

155491C91

THERMOSTAT

1шт.

14

155482C1

CLIP

thermostat mounting

1шт.

15

155490C91

COUPLER ASSY, 3/8 in. tube female

1шт.
