(273) - EVAPORATOR ASSEMBLY COMPONENTS

Запчасти Case IH 503 (273) - EVAPORATOR ASSEMBLY COMPONENTS (50) - CAB CLIMATE CONTROL

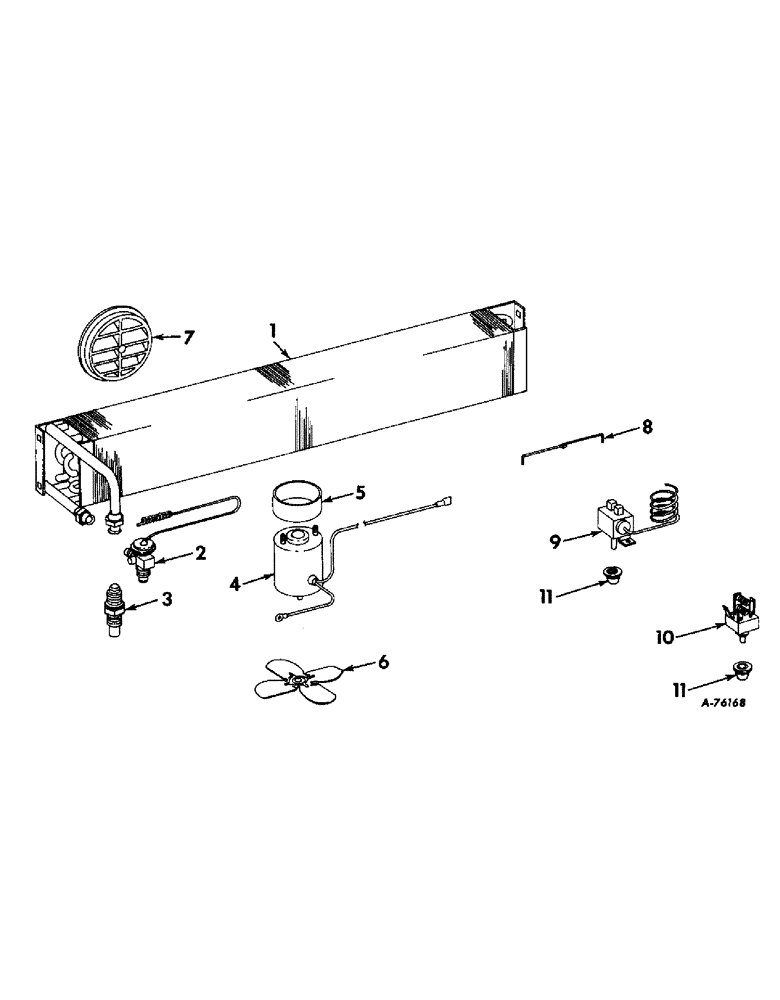

Схема запчастей Case IH 503 - (273) - EVAPORATOR ASSEMBLY COMPONENTS (50) - CAB CLIMATE CONTROL
4
7
10
11
8
1
5
3
11
6
2
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

161310C91

EVAPORATOR ASSY, air conditioning, Includes the following parts

1шт.

1

155492C91

CORE ASSY, evaporator

1шт.

2

244562R91

VALVE

ASSY, expansion

1шт.

3

155722C91

COUPLER ASSY, 5/8 male

1шт.

4

155483C91

MOTOR ASSY, evaporator

1шт.

5

155493C1

RING, rubber motor insulator

1шт.

6

155708C91

FAN ASSY, evaporator

1шт.

7

155725C91

DEFLECTOR ASSY, evaporator air

2шт.

8

155488C1

WIRE, retainer spring

2шт.

9

244546R91

SWITCH ASSY, temperature control

1шт.

10

155494C91

IGNITION SWITCH

SWITCH W/RESISTOR, fan

1шт.

11

244565R1

KNOB, switch

2шт.
