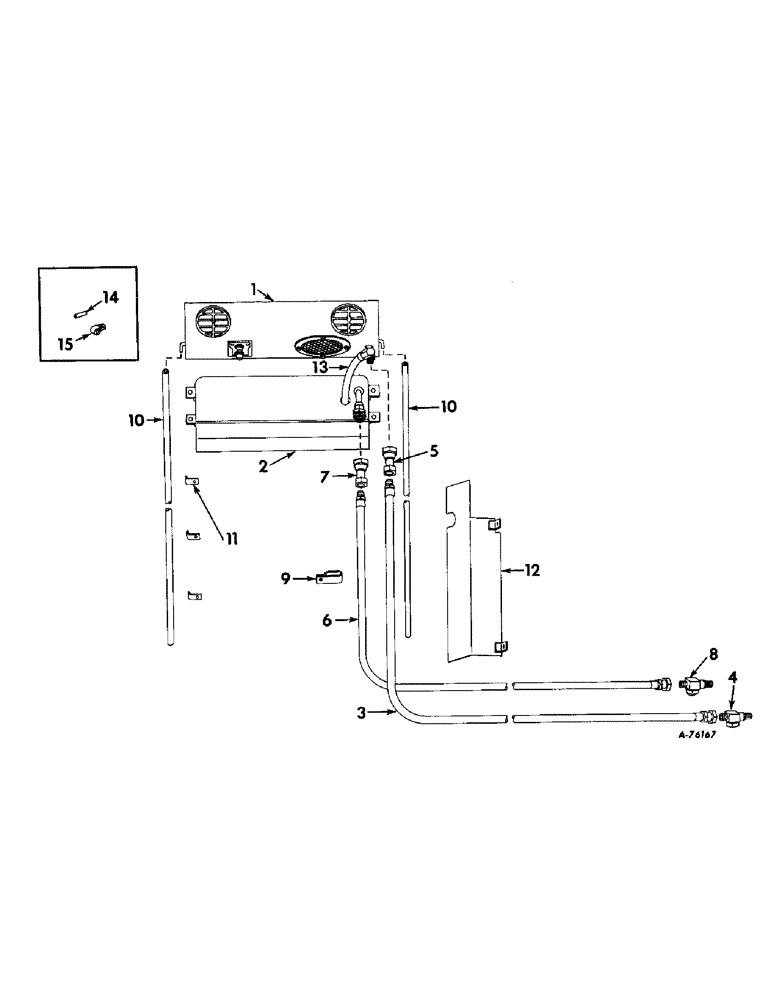

Запчасти Case IH 503 (271) - AIR CONDITIONING ATTACHMENT, SERIAL NO. 3251 TO 6287 (50) - CAB CLIMATE CONTROL

154684C91

AIR CONDITIONER ASSY

1шт.

1

155495C91

EVAPORATOR ASSY, air conditioning, For details see unit listing under evaporator assy components

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

8шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

8шт.

2

155486C91

CONDENSER ASSY, air conditioning, For details see unit listing under condenser assy components

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd cap

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

4шт.

154698C91

HOSE ASSY, suction, Includes ref nos 3, 4 and 5

1шт.

3

154693C91

HOSE W/FITTINGS, suction

1шт.

4

938196R91

VALVE

ASSY, horizontal rotalock

1шт.

5

154701C91

COUPLER ASSY, female

1шт.

154700C91

HOSE ASSY, discharge, Includes ref nos 6, 7 and 8

1шт.

6

154694C91

HOSE W/FITTINGS, discharge

1шт.

7

154699C91

COUPLER ASSY, female

1шт.

8

938197R91

LOCK VALVE

VALVE ASSY, horizontal rotalock

1шт.

9

154695C1

CLAMP

hose

4шт.

10

154696C1

HOSE ASSY.

HOSE, drain

2шт.

11

154697C1

CLAMP, drain hose

3шт.

12

154690C91

COVER ASSY, hose

1шт.

171654

SCREW, no. 6-32 x 3/8 C-Z pan-slt-hd mach

2шт.

13

156184C91

HOSE W/FITTINGS, pressure

1шт.

14

46893H

CONNECTION

CONNECTOR, wire, Hydrostatic drive only

1шт.

15

567895R2

CLIP, wire, Hydrostatic drive only

1шт.
