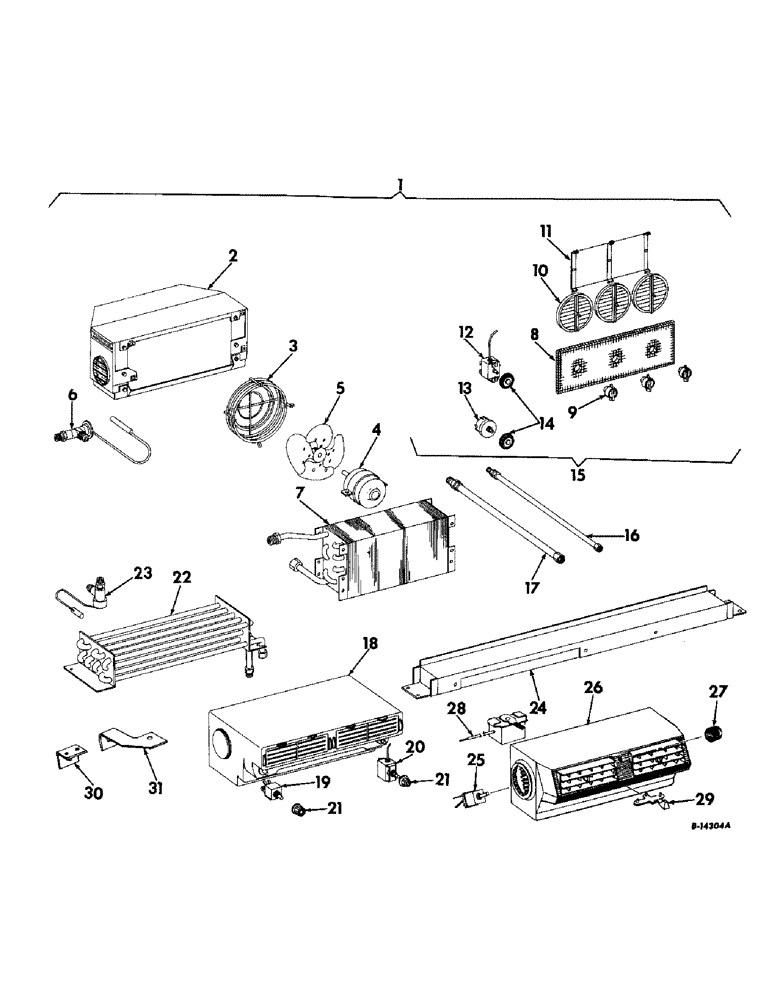

Запчасти Case IH 503 (269) - OPERATORS CAB AIR CONDITIONING, SERIAL NO. 3250 AND BELOW (50) - CAB CLIMATE CONTROL

1

634770R91

EVAPORATOR ASSY, air conditioning, Includes ref. nos. 2 and 15, Serial no. 1470 and below

1шт.

1

571479R91

KIT EVAPORATOR, Serial no. 1470 and below, Consists of

1шт.

BOLT

1шт.

CONNECTOR BOLT

1шт.

HOSE

1шт.

NUT

1шт.

TERMINAL LOOP

1шт.

WASHER

1шт.

WIRE

1шт.

2

634391R91

CASE ASSY, evaporator, Includes ref. nos. 3, 4, 5, 6 and 7, Serial no. 1470 and below

1шт.

3

571488R91

GUARD ASSY, pan, Serial no. 1470 and below

1шт.

4

571480R91

MOTOR ASSY, fan, Serial no. 1470 and below

1шт.

5

571489R91

BLADE ASSY, fan, Serial no. 1470 and below

1шт.

142650

AUGER,1/2" - 13 x 2 3/4", Drilled

NO. 10-32 X 1/4 HDLESS CUP-PT SET SCREW

1шт.

6

571487R91

VALVE ASSY, expansion, Serial no. 1470 and below

1шт.

7

634390R91

COIL ASSY, evaporator, Serial no. 1470 and below

1шт.

8

571490R1

GRILLE, evaporator face panel, Serial no. 1470 and below

1шт.

9

571481R91

KNOB ASSY, air deflector, Serial no. 1470 and below

1шт.

10

571483R91

DEFLECTOR ASSY, air, Serial no. 1470 and below

3шт.

11

571482R1

RETAINER, air deflector, Serial no. 1470 and below

3шт.

12

571485R91

SWITCH ASSY, thermostatic, Serial no. 1470 and below

1шт.

13

571484R91

SWITCH ASSY, thermostatic, Serial no. 1470 and below

1шт.

14

571486R91

KNOB ASSY, thermostat and blower, Serial no. 1470 and below

1шт.

15

634392R91

FACE PANEL ASSY, evaporator, Consists of ref. nos. 8 through 14

1шт.

16

634620R91

HOSE ASSY, evaporator to pressure tube, Serial no. 3250 and below

1шт.

17

634621R91

HOSE ASSY, evaporator to suction tube, Serial no. 3250 and below

1шт.

18

937899R91

EVAPORATOR ASSY, air condition, Includes ref. nos. 19 through 23, Serial no., Serial Range: 1471-2430

1шт.

19

150386C91

SWITCH ASSY, blower, Serial no., Serial Range: 1471-2430

1шт.

20

150385C91

SWITCH ASSY, thermostat, Serial no., Serial Range: 1471-2430

1шт.

21

150383C91

KNOB, control, Serial no., Serial Range: 1471-2430

1шт.

22

150382C91

CORE ASSY, evaporator, Serial no., Serial Range: 1471-3250

1шт.

23

150384C91

VALVE ASSY, expansion, Serial no., Serial Range: 1471-2430

1шт.

24

937898R1

HEADER, air conditioning, Serial no., Serial Range: 1471-2430

1шт.

24

150690C91

HEADER ASSY, air conditioning unit, Serial no., Serial Range: 2751-3250

1шт.

25

153615C91

SWITCH ASSY, blower motor, Serial no., Serial Range: 1646-3250

1шт.

26

151691C91

EVAPORATOR ASSY, air conditioning, Includes ref nos 22, 23, 25, 26, 28 and 29 also blower wheels 150388C91 and 150389C91, Serial no., Serial Range: 1646-3250

1шт.

27

153616C91

KNOB AND DECAL ASSY, Serial no., Serial Range: 1646-3250

1шт.

28

153613C91

SWITCH ASSY, thermostat, Serial no., Serial Range: 1646-3250

1шт.

29

153614C91

ARM THERMOSTAT SWITCH, Serial no., Serial Range: 1646-3250

1шт.

30

150912C1

ANGLE, idle anchor, For hydrostatic ground drive, Serial no. 7251 and above

1шт.

31

151462C1

BRACKET, condensor rear

1шт.

150387C91

WHEEL ASSY, blower LH, Serial no., Serial Range: 1471-2430

1шт.

150389C91

WHEEL ASSY, blower LH, Serial no., Serial Range: 1471-2430

1шт.

150388C91

WHEEL ASSY, blower RH, Serial no., Serial Range: 1471-2430

1шт.

46893H

CONNECTION

CONNECTOR, wire, Serial no., Serial Range: 2751-3250

1шт.

567895R2

CLIP, wire, Serial no., Serial Range: 2751-3250

1шт.
