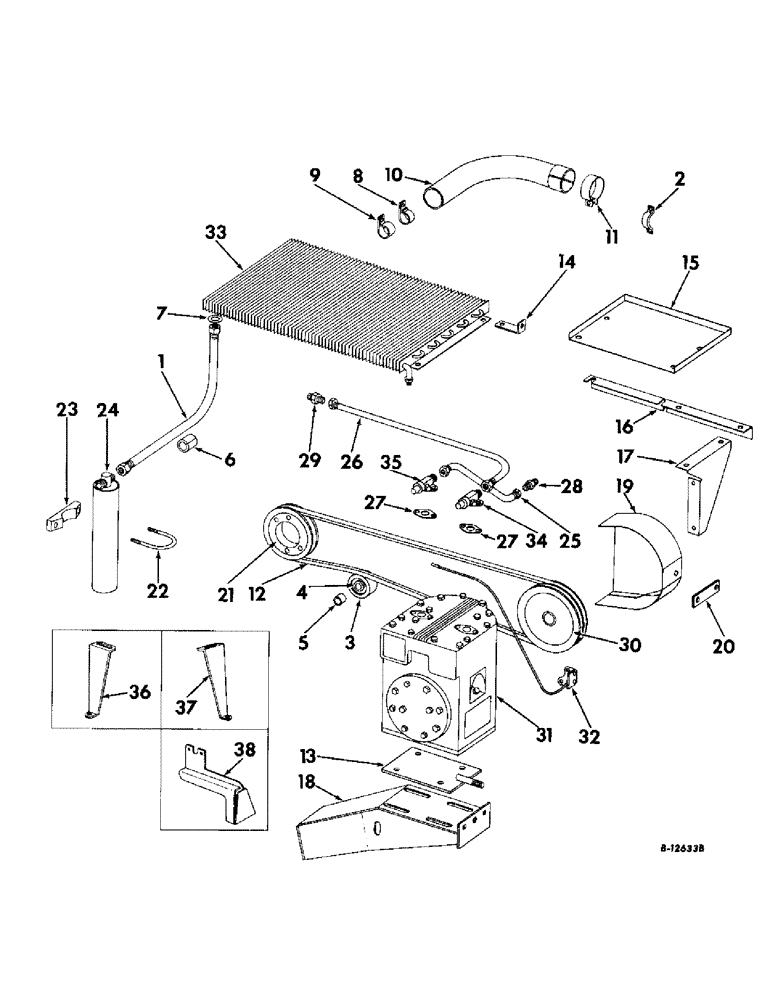

Запчасти Case IH 503 (264) - CONDENSOR AND COMPRESSOR, SERIAL NO. 6287 AND BELOW (50) - CAB CLIMATE CONTROL

1

587574R91

HOSE,7.94mm ID x 889mm L

Condenser to Receiver, Serial no. 3250 and Below

1шт.

2

570385R1

SPARE PART CLAMP, compressor line tube, Serial no. 3250 and below

9шт.

143140

NO. 8 X 3/8 SLT-RD-HD, self tapping screw

16шт.

3

583495R11

BUSHING

RIM W/BEARING, compressor drive belt idler, Includes ref no. 4, 1 used not hydrostatic ground drive, 2 used w/hydrostatic ground drive

1шт.

4

88510H

SPARE PART BEARING ASSY, idler rim, 1 used not hydrostatic ground drive, 2 used w/hydrostatic ground drive

1шт.

5

583496R1

SPACER

SPACER, compressor drive belt idler, 1 used not hydrostatic ground drive, 2 used w/hydrostatic ground drive

1шт.

*

5/8 X 2-3/4 MACH BOLT W/NUT

1шт.

*

5/8 LOCK WASHER

1шт.

*

21/32 X 1-1/4 X 11 GA WASHER

6шт.

6

550851R1

SPARE PART SPACER, condensor hose, Serial no. 3250 and below

1шт.

29

222-716

UNION

CONNECTOR, 1/2 male, Serial no. 3250 and below

1шт.

7

628619R1

SPARE PART GROMMET, condensor tube, Serial no. 3250 and below 1/2" ID x 1 1/2" x .062"

1шт.

8

362127R1

CLIP

CLIP, tube, Serial no. 3250 and below

5шт.

*

5/16 X 3/4 MACH BOLT W/NUT

1шт.

*

5/16 LOCK WASHER

1шт.

9

27200K

CLIP, tube, Serial no. 3250 and below

1шт.

10

634305R1

SPARE PART ELBOW, muffler

1шт.

11

31790DA

CLAMP

CLAMP, muffler

1шт.

*

3/8 X 1-1/4 MACH BOLT W/NUT

1шт.

*

3/8 LOCK WASHER

1шт.

12

936331R1

V-BELT,0.50" W

Compressor drive

1шт.

13

632939R91

SPARE PART BASE W/SCREW, compressor mounting

1шт.

*

7/16 JAM NUT

1шт.

*

7/16 NUT

1шт.

14

632931R1

SPARE PART CLIP, condensor support, Serial no. 2750 and below

4шт.

14

151463C1

SPARE PART BRACKET, condensor front, Serial no., Serial Range: 2751-3250

2шт.

*

1/4 X 1/2 C-Z MACH BOLT W/NUT

8шт.

*

1/4 C-Z LOCK WASHER

8шт.

15

155866C1

SPARE PART CARRIER, battery

1шт.

*

3/8 X 1 MACH BOLT W/NUT

2шт.

*

3/8 LOCK WASHER

2шт.

16

628593R1

SPARE PART SUPPORT, battery

1шт.

*

3/8 X 1-1/2 MACH BOLT W/NUT

2шт.

*

3/8 LOCK WASHER

2шт.

PO10532

WASHER

13/32 X 1-1/4 X 11 GA WASHER

10шт.

17

629625R1

SPARE PART BRACKET, battery support

1шт.

*

3/8 X 1 MACH BOLT W/NUT

2шт.

*

3/8 LOCK WASHER

2шт.

111640

1/4 X 3/4 TAPPING SCREW

2шт.

18

632933R91

SPARE PART BRACKET W/TOP AND SIDES, compressor mounting, Serial no. 3250 and below

1шт.

*

3/8 X 1 HEX-HD MACH BOLT W/NUT

3шт.

*

5/16 X 3/4 CRG BOLT W/NUT

1шт.

*

3/8 X 1-3/4 CAP SCREW

4шт.

*

5/16 LOCK WASHER

1шт.

*

3/8 LOCK WASHER

7шт.

575807R1

WASHER

13/32 X 1 X 11 GA WASHER

4шт.

19

632941R91

SPARE PART SHIELD ASSY, compressor drive belt

1шт.

*

5/16 X 1/2 CRG BOLT W/NUT

1шт.

*

5/16 X 3/4 CRG BOLT W/NUT

1шт.

*

5/16 LOCK WASHER

2шт.

20

632944R1

SPARE PART SUPPORT, drive belt shield

1шт.

*

5/16 X 3/4 CRG BOLT W/NUT

1шт.

*

5/16 LOCK WASHER

1шт.

21

150911C1

SPARE PART SHEAVE, compressor drive

1шт.

*

3/8 LOCK WASHER

4шт.

22

634825R1

SPARE PART U-BOLT, filter drier, Serial no. 3250 and below

1шт.

*

1/4 NUT

1шт.

*

1/4 LOCK WASHER

1шт.

23

MA6103

SPARE PART BRACKET, filter drier clamp, Serial no. 3250 and below

1шт.

24

572832R91

CONTAINER

FILTER ASSY, receiver, Serial no. 3250 and below

1шт.

25

572833R91

SPARE PART HOSE ASSY, refrigerant 5/8, Serial no. 3250 and below

1шт.

26

572834R91

SPARE PART HOSE ASSY, refrigerant 1/2, Serial no. 3250 and below

1шт.

27

572841R1

SPARE PART GASKET, valve

2шт.

28

119467

HYD CONNECTOR,5/8" NPT x 7/8"-14, 45 Degree Fl

CONNECTOR, 5/8 male, Serial no. 3250 and below

1шт.

30

165129C91

CLUTCH

CLUTCH ASSY, compressor

1шт.

*

5/16-24UNF X 1 MACH BOLT

1шт.

22859R1

WASHER

11/32 X 3/4 X 7 GA WASHER

1шт.

31

527541R91

AIRCOND. COMPRESSOR

COMPRESSOR ASSY, When replacing 628565R9 compressor w/527541R9 compressor, Also order 165129C91 clutch assy

1шт.

31

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

31

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured COMPRESSOR

1шт.

31

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

32

629733R91

SPARE PART LEAD BRUSH AND BRACKET ASSY

1шт.

33

633452R91

SPARE PART CONDENSOR ASSY, Serial no. 3250 and below

1шт.

34

868600R91

VALVE, suction, For 628565R91 compressor, Serial no. 2431 and below

1шт.

34

938196R91

VALVE

VALVE, suction, For 628565R92 and 628565R93 compressor

1шт.

35

868601R91

VALVE, discharge, For 628565R92 and 628565R93 compressor, Serial no. 2430 and below

1шт.

35

938197R91

LOCK VALVE

VALVE, discharge, For 628565R92 and 628565R93 compressor, Serial no. 2431 and above

1шт.

36

NOT USED

1шт.

37

NOT USED

1шт.

38

155153C91

SPARE PART BRACE ASSY, compressor mounting bracket

1шт.

634540R91

SPARE PART PACKAGE, copper tubing, Not illustrated, Serial no. 3250 and below

1шт.

*

20 FT OF 5/8 OD TUBING

1шт.

*

6 FT OF 1/2 OD TUBING

1шт.

*

17 FT OF 3/8 OD TUBING

1шт.

144371

NUT, 3/8 marine tube

2шт.

144373

NUT, 1/2 marine tube

2шт.

144374

NUT, 5/8 marine tube

2шт.

415574R1

FREON

REFRIGERANT, Not illustrated

3шт.

420770R91

SPARE PART VALVE, refrigerant can, Not illustrated

1шт.
