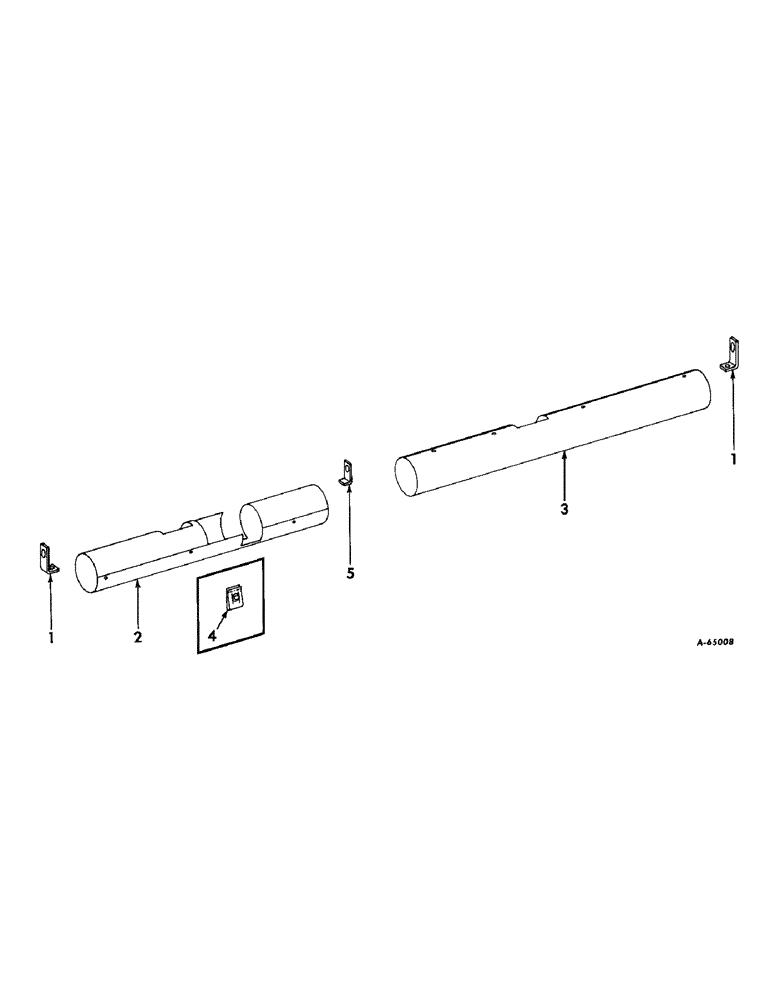

Запчасти Case IH 503 (322) - TRACK AXLE FINAL DRIVE SHIELDS (48) - TRACKS & TRACK SUSPENSION

1

568810R1

CLIP, axle final drive shaft shield

6шт.

Q5028

WASHER

15/32 X 1 X 11 GA WASHER

6шт.

2

628910R1

SHIELD, axle final drive shaft, LH

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

3шт.

1/4 LOCK WASHER

3шт.

3

628913R1

SHIELD, axle final drive shaft RH

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

4шт.

1/4 LOCK WASHER

4шт.

4

564791R1

SPRING NUT

axle final drive shaft shield

7шт.

5

634978R1

CLIP, axle final drive shaft shield LH

6шт.

975807R1

13/32 X 1 X 11 GA WASHER

6шт.
