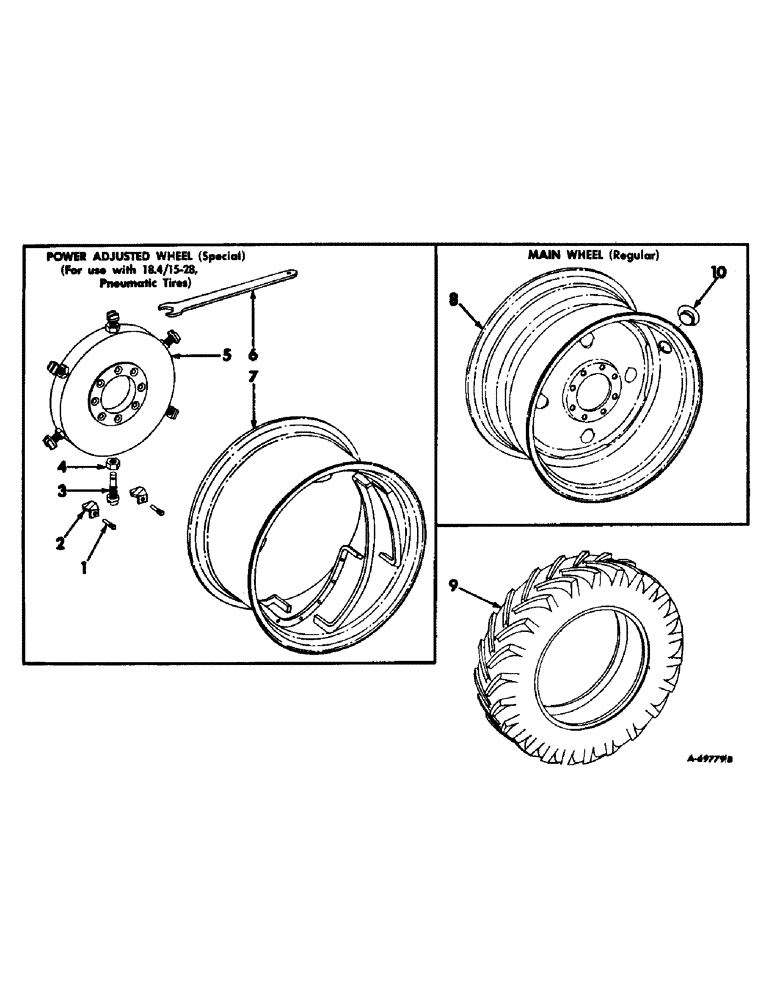

Запчасти Case IH 503 (062) - MAIN WHEEL, TIRES AND TUBE, REGULAR, POWER ADJUSTED WHEEL, SPECIAL (44) - WHEELS

1

365326R1

SCREW

body stop

4шт.

2

365327R2

STOP

body

4шт.

3

366104R1

JACK SCREW,1" - 16 x 3.34"

jack

12шт.

4

366105R1

WHEEL NUT,Hex, 1" - 16

jack screw

12шт.

5

633012R1

DISC, main wheel rim

2шт.

6

366106R1

WRENCH, jack screw

1шт.

7

633011R91

RIM ASSY, main wheels

2шт.

8

564805R91

DISC AND RIM ASSY, DW 14-26 main wheel left, For use w/18.4/15-26, 6 ply tires

1шт.

8

585934R91

DISC AND RIM ASSY, DW 14-26 main wheel right, For use w/18.4/15-26, 6 ply tires

1шт.

8

627370R91

DISC AND RIM ASSY, DW 14-26 main wheel left, For use w/18.4/15-26, 6 or 10 ply tires

1шт.

8

936440R91

DISC AND RIM ASSY, DW 14-26 main wheel left, Special reinforced offset, For use w/18.4-26, 10 ply tires

1шт.

8

627371R91

DISC AND RIM ASSY, DW 14-26 main wheel right, For use w/18.4/15-26, 6 or 10 ply tires

1шт.

8

574804R91

DISC AND RIM ASSY, DW 16-26 main wheel left, For use w/18.4/15-26, 6 ply tires

1шт.

8

627672R91

DISC AND RIM ASSY, DW 16-26 main wheel right, For use w/18.4/15-26, 6 ply tires

1шт.

8

169531C1

WHEEL

DISC AND RIM ASSY, DW 16-26 main wheel left, Heavy duty, for use w/6 row corn heads, For use w/18.4-26, 10 ply tires

1шт.

8

569366R91

WHEEL

DISC AND RIM ASSY, DW 20-26 main wheel, For use w/23.1/18-26, 8 or 10 ply tires

2шт.

8

936444R91

DISC AND RIM ASSY, DW 20-34 main wheel, For use w/23.1/18-34, 8 or 10 ply tires

2шт.

8

155914R91

DISC AND RIM ASSY, DW 25-26 main wheel, For use w/28.1-26, 10 ply tires

2шт.

9

TIRE, main wheel, 18.4/15-26, 6-ply, Code R1

2шт.

9

TIRE, main wheel, 18.4/15-26, 6-ply, Code R2

2шт.

9

TIRE, main wheel, 18.4/15-26, 6-ply, Code R3

2шт.

9

TIRE, main wheel, 18.4/15-28, 6-ply, Code R1, Power adjusted wheels

2шт.

9

TIRE, main wheel, 18.4/15-28, 10-ply, Code R2, For power adjusted wheels

2шт.

9

TIRE, main wheel, 18.4/15-28, 10-ply, Code R1, Power adjusted wheels

2шт.

9

TIRE, main wheel, 18.4/15-28, 10-ply, Code R2, Power adjusted wheels

2шт.

9

TIRE, main wheel, 18.4/15-26, 10-ply, Code R1

2шт.

9

TIRE, main wheel, 18.4/15-26, 10-ply, Code R3

2шт.

9

TIRE, main wheel, 18.4/15-26, 10-ply, Code R2

2шт.

9

TIRE, main wheel, 23.1/18-26, 8-ply, Code R2

2шт.

9

TIRE, main wheel, 23.1/18-26, 8-ply, Code R1

2шт.

9

TIRE, main wheel, 23.1/18-34, 10-ply, Code R2

2шт.

9

TIRE, main wheel, 23.1/18-26, 10-ply, Code R1

2шт.

9

TIRE, main wheel, 23.1/18-26, 10-ply, Code R3

2шт.

9

TIRE, main wheel, 28.1-26, 10-ply, Code R-2

2шт.

9

TUBE, main wheel, 18.4/15-26

2шт.

9

TUBE, main wheel, 23.1/18-26

2шт.

9

TUBE, main wheel, 23.1/18-34

2шт.

9

TUBE, main wheel, 28.1-26

2шт.

9

TUBE, main wheel, 18.4/15-28, For use with power adjusted wheels

2шт.

10

383697R1

PLUG

valve hole

1шт.
