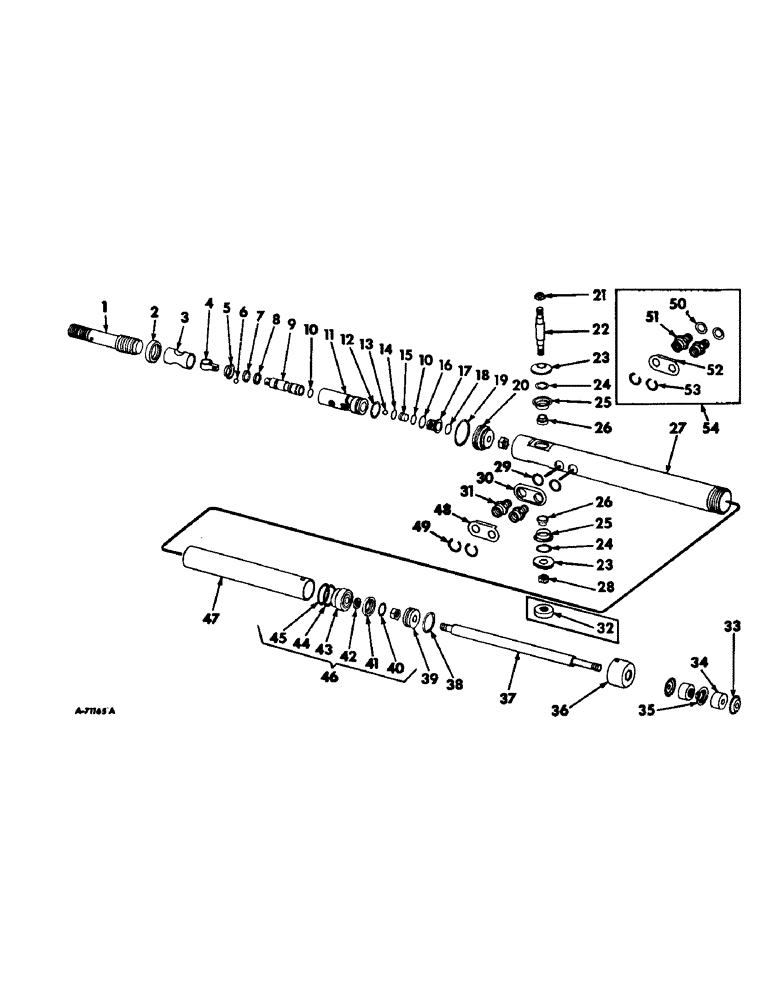

Запчасти Case IH 503 (201) - HYDRAULIC STEERING CYLINDER, MONROE, SERIAL NO 501 TO 1470 (41) - STEERING

629266R92

CYLINDER

AND VALVE ASSY, hydraulic steering, Includes ref. nos. 1 through 20, 31, 33 through 47, Order kit assy, 156165C91, For components see list of parts under power steering kit

1шт.

1

375277R1

PLUG, adjusting valve outer

1шт.

2

375278R1

RING, locking

1шт.

3

375276R1

SPACER, tube

1шт.

4

375275R1

ROD END

1шт.

5

375274R1

RETAINER

1шт.

6

BALL

2шт.

7

375273R1

WASHER

2шт.

8

375272R1

T-RING

1шт.

9

SPOOL, valve, Order cylinder and valve assy 629266R92

1шт.

10

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

11

BODY, valve, Order cylinder and valve assy 629266R92

1шт.

12

375269R1

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

13

BALL

1шт.

14

375271R1

O-RING,0.426" ID x 0.07" Width

1шт.

15

375270R1

PISTON, reaction

1шт.

16

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

2шт.

17

378115R1

PLUG

1шт.

18

NOT USED

1шт.

19

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

20

378114R1

BASE, cylinder tube

1шт.

21

82448R1

NUT

valve stud stop

1шт.

22

375280R1

STUD, valve

1шт.

23

364096R1

CUSHION, valve stud

2шт.

24

375279R1

WASHER, valve thrust

2шт.

25

364097R1

RETAINER, valve stud cushion

2шт.

26

375281R1

COLLAR

2шт.

19695R1

PIN, roll

1шт.

27

629263R91

TUBE, hydraulic steering cylinder outer 19.406" Length

1шт.

28

364099R1

NUT, valve stud slotted

1шт.

29

375283R1

GASKET

2шт.

30

378160R1

SEAL

2шт.

31

936276R1

FITTING

2шт.

32

363205R1

CAP, valve, Not included in cylinder assy

1шт.

33

363206R1

RETAINER, piston rod cushion

2шт.

34

363207R1

CUSHION

piston rod

2шт.

35

363208R1

LOCATOR, piston rod cushion

1шт.

36

364110R1

CAP, cylinder

1шт.

37

629265R1

ROD, hydraulic steering piston

1шт.

25-118

NUT,1/2"-20, G5

piston rod stop

1шт.

STOP

1шт.

125366

SLOTTED NUT,1/2"-20, G5, Thk

Piston rod cushion 1/2"-20, G5, Thk

1шт.

38

364102R1

RING

piston cylinder

1шт.

39

364100R1

PISTON

1шт.

40

367808R1

SEAL

1шт.

41

375266R1

RETAINER

T-ring

1шт.

42

388795R91

WASHER

T-RING AND WASHER ASSY

1шт.

43

GUIDE, piston rod, Order piston guide assy 375264R91, ref no. 46

1шт.

44

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1шт.

45

375265R1

RETAINER, o-ring

1шт.

46

375264R91

GUIDE, piston rod assy

1шт.

47

629264R1

TUBE, hydraulic steering cylinder inner 1.691" ID, 11.406" Length

1шт.

48

936277R1

HOLDER, fitting

1шт.

49

324110R1

SNAP RING

RING, snap

2шт.

50

375283R1

GASKET

2шт.

51

936276R1

FITTING

2шт.

52

936277R1

HOLDER

1шт.

53

936275R91

KIT

ASSY, power steering cylinder fitting, Note

1шт.

153864C91

KIT ASSY, power steering cylinder valve seal

1шт.
