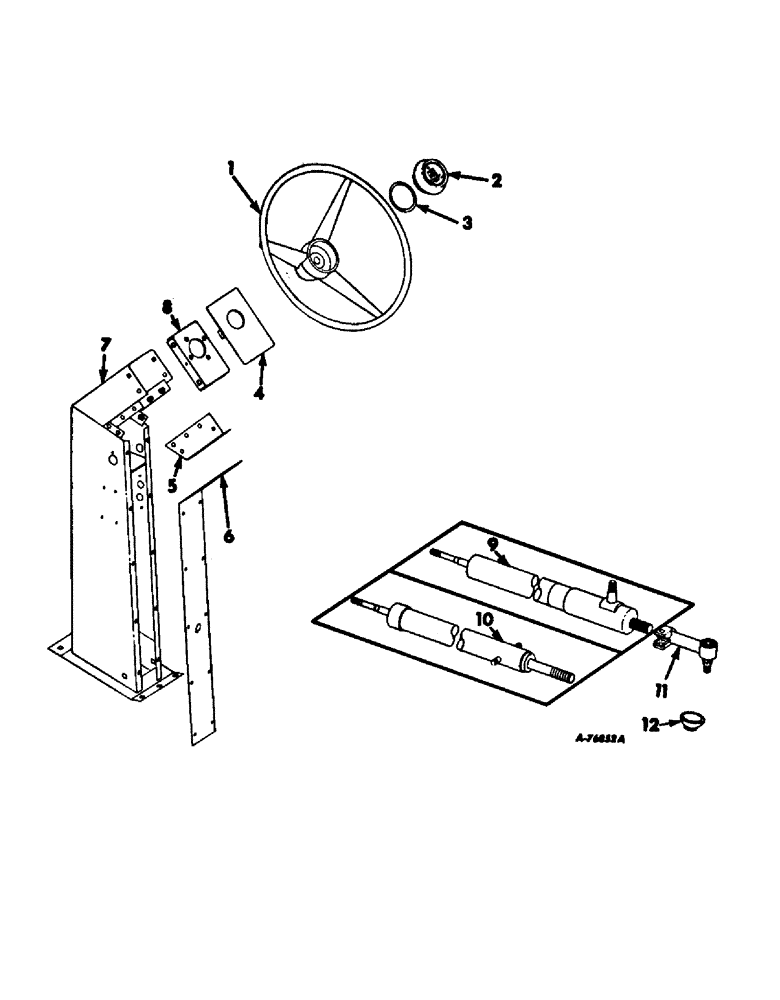

Запчасти Case IH 503 (120) - STEERING, SERIAL NO 2431 AND ABOVE (41) - STEERING

1

385156R1

WHEEL (STEERING)

WHEEL, steering

1шт.

1

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

2

366566R1

CAP

steering wheel

1шт.

3

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

steering wheel cap

1шт.

4

633074R91

COVER ASSY, steering column top

1шт.

118832

DRIVE BUSHING

NO. 10 X 1/2 SLT-RD-HD TAPPING SCREW

3шт.

5

633492R1

SIDE, steering column removable LH

1шт.

5

633493R1

SIDE, steering column removable RH

1шт.

17043R1

1/4 X 1/2 MACH BOLT

8шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

6

633490R1

BACK, steering column, Gasoline burning engines

1шт.

6

634780R1

BACK, steering column, Diesel engines

1шт.

171754

BODY

1/4 X 1/2 PAN-HD SLT TAPPING SCREW

12шт.

564791R1

SPRING NUT

1/4 SPEED NUT

12шт.

7

938865R91

COLUMN ASSY, steering, Not hydrostatic ground drive

1шт.

8

633073R11

BRACKET ASSY, steering hand pump

1шт.

9

654631R91

CYLINDER ASSY, steering, For components see list of parts under details of hydraulic steering cylinder, Optional for 397689R91 cylinder assy

1шт.

9

397689R91

CYLINDER ASSY, steering, For components see list of parts under details of steering cylinder assy, Optional for 654631R91 cylinder

1шт.

10

NOT USED

1шт.

11

159807C91

END

ASSY, steering cylinder rod

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8-18 nf C-Z slt hex

1шт.

124944

JAM NUT,Hex, 5/8" - 18, Gr 5

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

12

382562R1

SEAL

steering cylinder rod end

1шт.
