Запчасти Case IH 503 (313) - WINDROW PICKUP HYDRAULIC DRIVE DIAGRAM, BELT TYPE (35) - HYDRAULIC SYSTEMS

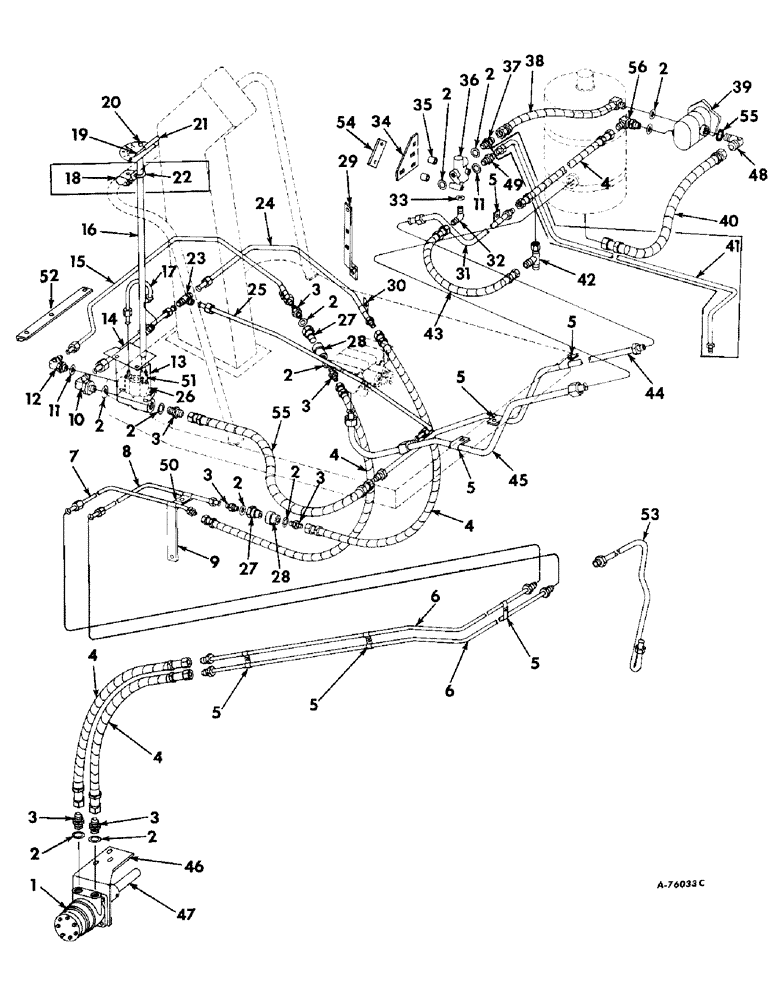

Схема запчастей Case IH 503 - (313) - WINDROW PICKUP HYDRAULIC DRIVE DIAGRAM, BELT TYPE (35) - HYDRAULIC SYSTEMS
5
18
24
35
2
5
41
5
53
52
5
2
2
5
4
7
19
9
25
2
47
51
30
2
12
34
33
28
6
16
49
3
45
3
46
3
4
56
27
2
2
40
42
5
1
50
2
3
43
6
3
14
48
39
11
31
29
3
36
23
2
4
11
22
27
54
2
4
3
2
4
21
55
37
38
17
28
55
5
44
26
13
20
8
10
15
32

Артикул

Название

Примечание

Количество

1

935741R91

MOTOR ASSY, hydraulic pickup drive, For components see list of parts under details of reel drive motor

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

12шт.

3

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR

7шт.

4

587582R91

HOSE ASSY.

HOSE ASSY

6шт.

5

587501R2

CLAMP

CLIP, tube, Serial no. 2750 and below

10шт.

6

935745R11

PIPE ASSY, drive to motor lower, 10-ft

2шт.

6

936590R11

PIPE ASSY, drive to motor lower, 12-ft

2шт.

7

935742R11

PIPE ASSY, drive upper

1шт.

8

935746R11

PIPE ASSY, drive upper

1шт.

9

628562R1

BRACKET, clip

1шт.

5/16 NUT

1шт.

5/16 X 3/4 CAP SCREW

1шт.

5/16 LOCK WASHER

1шт.

10

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

2шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

12

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

13

634781R1

BRACKET, flow divider support, 10-ft and 12-ft serial no. 2431 and below

1шт.

13

939681R1

BRACKET, flow divider support, 10-ft and 12-ft serial no. 2431 and above

1шт.

1/4 NUT

2шт.

1/4 X 2-1/4 CAP SCREW

2шт.

1/4 LOCK WASHER

2шт.

14

935701R91

PIPE ASSY, flow divider to return tee, 10-ft and 12-ft serial no. 2430 and below

1шт.

14

939672R91

PIPE ASSY, flow divider to return tee, 10-ft and 12-ft serial no. 2431 and above

1шт.

15

935644R11

PIPE ASSY, flow divider to feeder hose, 10-ft and 12-ft serial no. 2430 and below

1шт.

15

939679R91

PIPE ASSY, flow divider to feeder hose, 10-ft and 12-ft serial no. 2431 and above

1шт.

16

634767R92

MOUNTING W/INDICATOR, control handle, 10-ft and 12-ft serial no. 2431 and above

1шт.

5/16 X 1/2 CRG BOLT W/NUT

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

3шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 C-Z CRG BOLT W/NUT

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, , w/nut Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

17

935702R11

PIPE ASSY, relief valve return

1шт.

18

935671R1

BRACKET, control hand mounting, 10-ft and 12-ft serial no. 2430 and below

1шт.

1/4 X 1-3/4 MACH BOLT W/NUT

1шт.

1/4 LOCK WASHER

1шт.

19

634765R92

ARM W/HANDLE, flow control valve, 10-ft and 12-ft serial no. 2430 and below

1шт.

19

939708R91

HANDLE ASSY, flow divider, 10-ft and 12-ft serial no. 2431 and above

1шт.

20

634980R1

STOP, flow control valve handle

1шт.

1/4 NUT

1шт.

1/4 LOCK WASHER

1шт.

21

634976R1

GRIP, control valve handle, 10-ft and 12-ft serial no. 2430 and below

1шт.

21

939928R1

GRIP, control valve handle, 10-ft and 12-ft serial no. 2431 and above

1шт.

22

634824R1

U-BOLT, control to support, 10-ft and 12-ft serial no. 2430 and below

1шт.

1/4 NUT

2шт.

1/4 LOCK WASHER

2шт.

23

9402982

TEE,3/4"-16, 37 Degree

1шт.

24

935645R11

PIPE ASSY, return to tee, 10-ft and 12-ft serial no. 2430 and below

1шт.

24

939677R91

PIPE ASSY, return to tee, 10-ft and 12-ft serial no. 2431 and above

1шт.

25

935684R11

PIPE ASSY, drive return, 10-ft and 12-ft serial no. 2430 and below

1шт.

25

939680R91

PIPE ASSY, drive return, 10-ft and 12-ft serial no. 2431 and above

1шт.

26

175338C91

DIVIDER ASSY, flow, For components see list of parts under details of flow divider

1шт.

27

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self sealing male

2шт.

28

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self sealing female

2шт.

29

935642R1

BRACKET, hydraulic clip holder

1шт.

30

277889R1

CLIP

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

5/16 X 1 MACH BOLT W/NUT

3шт.

5/16 LOCK WASHER

5шт.

31

935686R11

PIPE ASSY, pump to flow divider upper

1шт.

32

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

1шт.

33

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

34

653903R1

BRACKET, flow divider mounting

1шт.

1/4 X 2-3/4 CRG BOLT W/NUT

2шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

1/4 LOCK WASHER

2шт.

3/8 LOCK WASHER

2шт.

35

U13039

SPACER

flow divider

2шт.

36

570830R91

VALVE ASSY, flow divider, For components see list of parts under details of flow divider valve

1шт.

37

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR

1шт.

38

653319R91

HOSE ASSY, hydraulic

1шт.

39

632862R92

PUMP ASSY, hydraulic, For components see list of parts under details of hydraulic pump, Serial no. 3250 and below

1шт.

39

154680C92

PUMP

ASSY, hydraulic, For components see list of parts under details of hydraulic pump, Serial no. 3251 and above

1шт.

40

935703R91

HOSE ASSY, suction, Serial no. 3250 and below

1шт.

40

154683C91

HOSE ASSY, suction, Serial no. 3251 and above

1шт.

41

653899R11

PIPE ASSY, upper pressure, 10 ft and 12 ft, Serial no 2430 and below

1шт.

41

937576R11

PIPE ASSY, upper pressure, 12 ft, Serial no. 2431 and above

1шт.

42

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

43

632455R91

HOSE

ASSY, hydraulic

1шт.

44

935689R11

PIPE ASSY, pump to flow divider lower, 10-ft and 12-ft serial no. 2430 and below

1шт.

44

939676R91

PIPE ASSY, pump to flow divider lower, 10-ft and 12-ft serial no. 2431 and above

1шт.

45

935700R91

PIPE ASSY, lower return, Serial no. 2750 and below

1шт.

45

151456C91

PIPE ASSY, lower return, Serial no. 2751 and above

1шт.

46

935744R1

BRACKET, motor mounting, 10-ft

1шт.

46

938127R1

BRACKET, motor mounting, 12-f5

1шт.

3/8 X 3/4 MACH BOLT W/NUT

4шт.

3/8 X 1 MACH BOLT W/NUT

3шт.

3/8 LOCK WASHER

7шт.

13/32 X 3/4 X 16 GA WASHER

3шт.

47

935743R1

COUPLING, motor, 10-ft, 12-ft, Serial no. 3251 and above

1шт.

1/8 X 3/4 COT. PIN

1шт.

AB5331

5/16 X 2-1/8 DLD PIN

1шт.

48

9402867

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF

Serial no. 3250 and below

1шт.

48

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Serial no. 3251 and above

1шт.

49

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, valve

1шт.

50

567711R1

SPACER

1шт.

51

634762R1

COLLAR, control valve

1шт.

1/8 X 1-1/4 COT. PIN

1шт.

1/4 X 1 ROLL PIN

1шт.

52

939688R1

ANGLE, control support, 10-ft and 12-ft serial no. 2431 and above

1шт.

53

654581R11

PIPE ASSY, rear pressure, 10-ft and 12-ft serial no. 2431 and above

1шт.

54

154987C1

STRAP, steering flow divider pad, Serial no. 3251 and above

1шт.

55

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

For 1 in. OD tubing, Serial no. 3251 and above

1шт.

56

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flare tube 90 deg

1шт.
