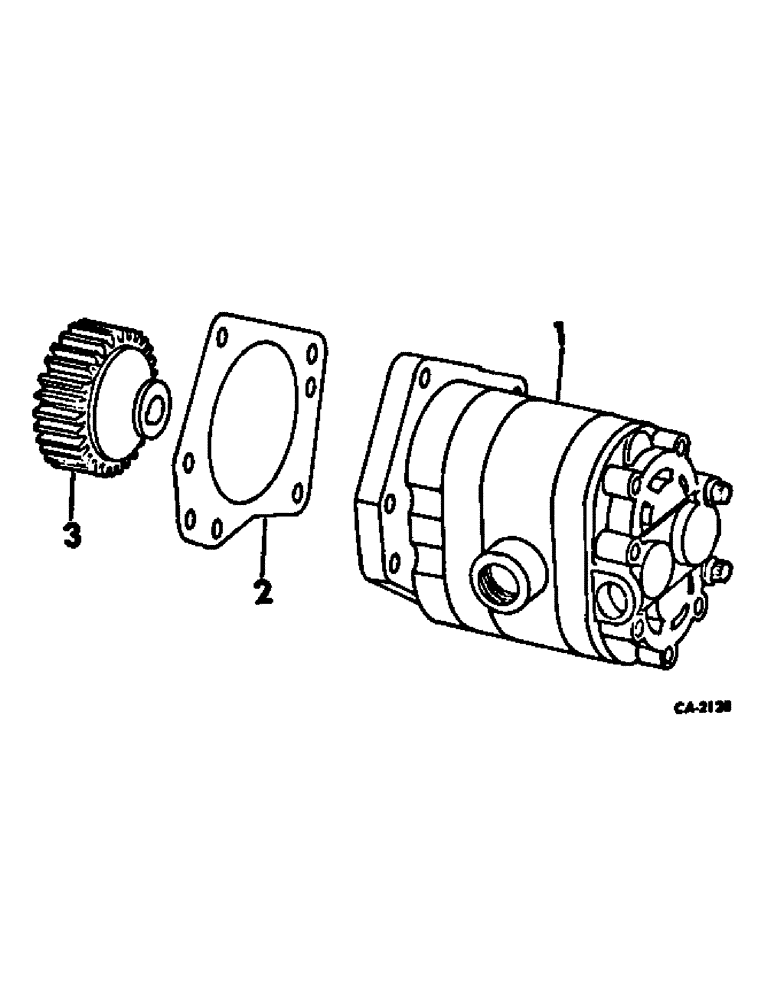

Запчасти Case IH 503 (230) - HYDRAULIC REEL DRIVE CHAIN REDUCTION PUMP (35) - HYDRAULIC SYSTEMS

1

632862R91

PUMP ASSY, hydraulic double, Includes ref nos. 1 thru 18, Serial no. 3250 and below

1шт.

1

154680C92

PUMP

ASSY, hydraulic, Includes ref nos. 1 thru 19, Serial no. 3251 and above

1шт.

5/16 X 4-3/4 CAP SCREW

4шт.

5/16 X 5 CAP SCREW

2шт.

632878R1

5/16 X 5 CAP SCREW

2шт.

2

NOT SERVICED SEPARATELY

1шт.

3

NOT SERVICED SEPARATELY

1шт.

159644C91

KIT

ASSY, seal repair, Consists of

1шт.

632855R1

SEAL

1шт.

632851R1

GASKET

1шт.

371523R1

SPRING

S

2шт.

17007R1

BALL

S, For 632862R91 pump

2шт.

170005C91

KIT

seal repair, Consists of

1шт.

371523R1

SPRING

S

2шт.

383533R1

SEAL

1шт.

636628R91

SEAL

1шт.

371552R1

SEAL

1шт.

371551R1

DIAPHRAGM

1шт.

371553R1

GASKETS

2шт.

381155R1

GASKETS

2шт.

174875C1

GASKET

1шт.

17007R1

BALL

S

2шт.

RINGS (No number), For 154680C92 pump

2шт.
