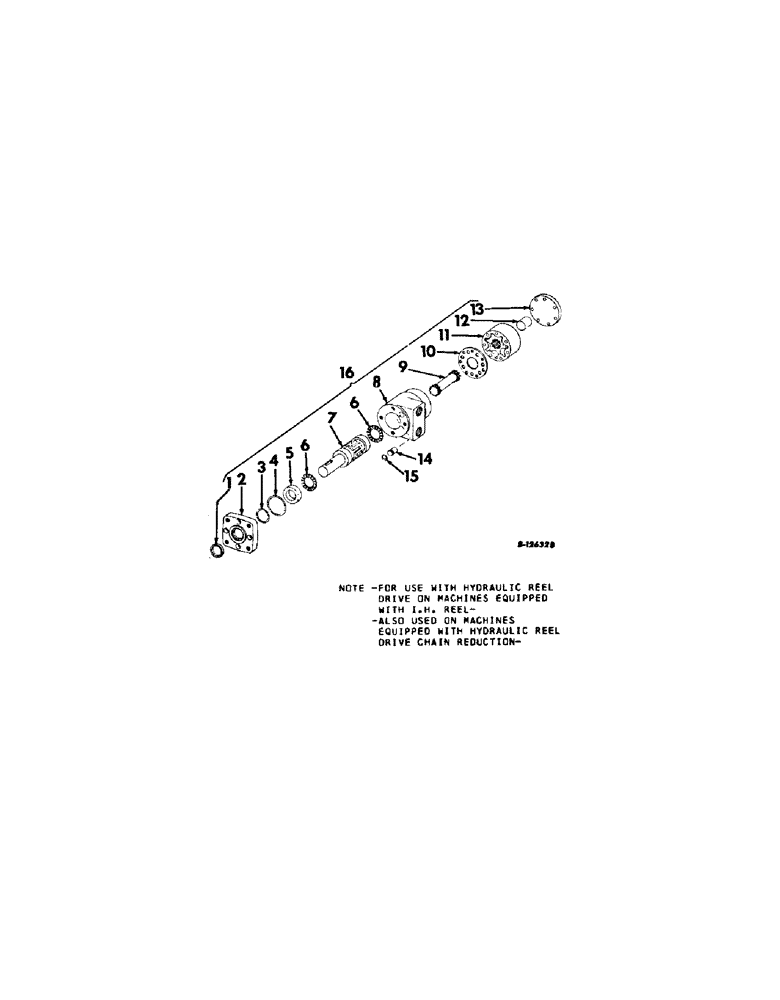

Запчасти Case IH 503 (229) - REEL DRIVE MOTOR (35) - HYDRAULIC SYSTEMS

1

697494R91

OIL SEAL

OIL SEAL

1шт.

2

653950R1

PLATE, mounting valve housing

1шт.

1/4 X 1 ESNA ROLl PIN

2шт.

1/4 X 2-1/4 SKT-HD CAP SCREW

7шт.

5/16 X 5/8 SKT-HD CAP SCREW

4шт.

3

201893H1

SEALING RING

O-RING, 1-5/16 OD x 1/8 sec. quad.

1шт.

4

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1-11/16 x 1-7/8 x 3/32

1шт.

5

653946R1

SPACER

RACE, bearing

1шт.

6

653947R91

BEARING ASSY, thrust

2шт.

7

SHAFT, Order motor assy 634733R91 ref. no. 17

1шт.

8

BODY, motor, Order motor assy 634733R91 ref. no. 17

1шт.

9

653944R1

DRIVE

1шт.

10

653943R1

LARGE PLATE

PLATE, spacer

1шт.

11

MOTOR ASSY, Order motor assy 634733R91 ref no. 17

1шт.

12

653945R1

SPACER

1шт.

13

653949R1

END, cap

1шт.

14

653948R1

PLUG

housing

1шт.

15

355967R1

O-RING,0.364" ID x 0.003" Width

1шт.

16

634733R91

HYDRAULIC MOTOR

MOTOR ASSY, hydraulic reel drive, Includes ref nos 1 thru 15

1шт.
