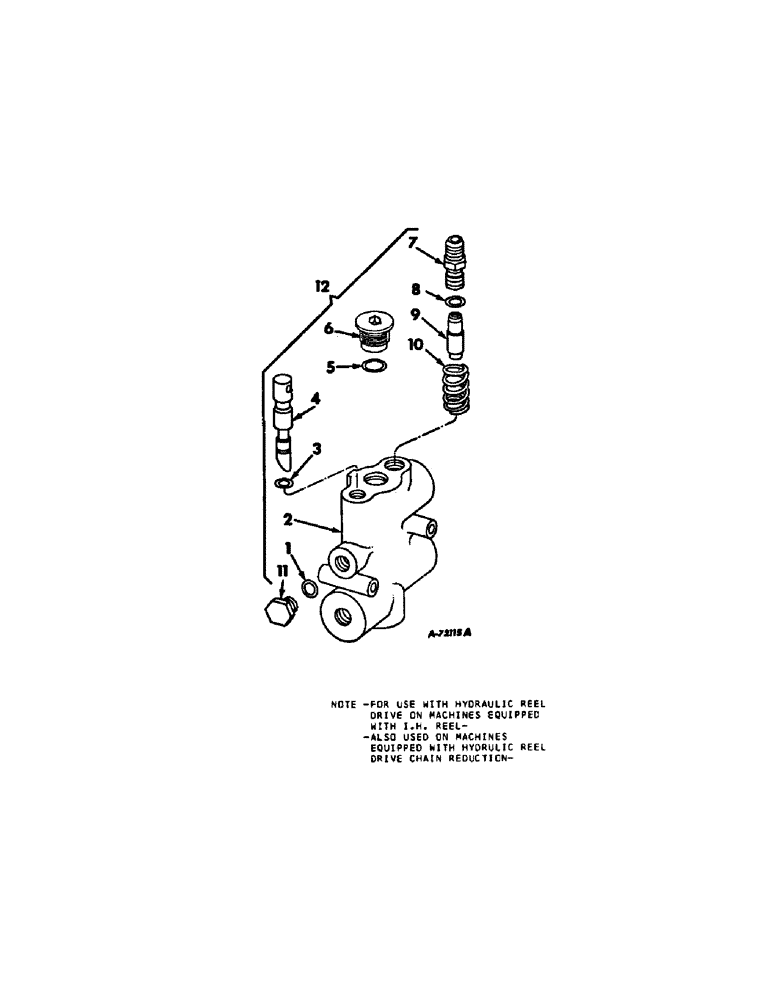

Запчасти Case IH 503 (229[1]) - REEL DRIVE FLOW DIVIDER (35) - HYDRAULIC SYSTEMS

2

BODY, flow divider, Order 175338C91 flow divider, Ref no 12

1шт.

3

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

4

654247R91

VALVE ASSY, control

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 end plug

1шт.

6

152415C1

PLUG, end

1шт.

7

654244R1

FITTING, male tube

1шт.

8

370920R1

O-RING,1/2" ID

SEAL, o-ring

1шт.

9

654248R91

PISTON ASSY, relief

1шт.

10

654242R1

SPRING

1шт.

11

9410357

PLUG

5/16

1шт.

12

175338C91

FLOW DIVIDER ASSY, hydraulic reel drive

1шт.

1

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Gasket

1шт.
