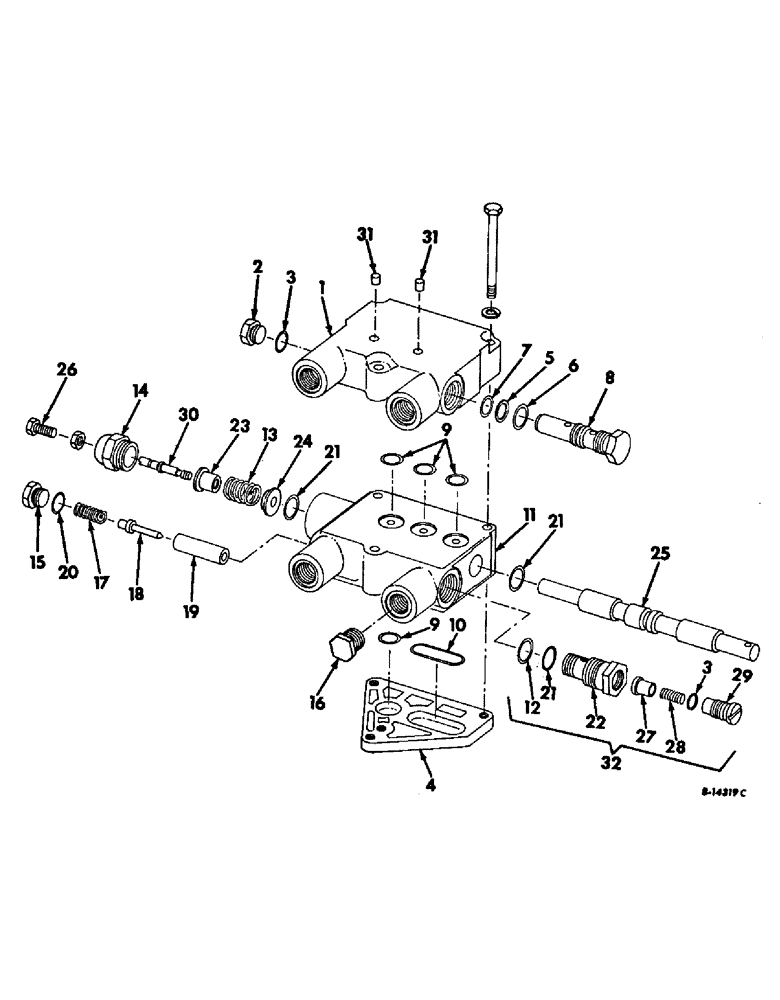

Запчасти Case IH 503 (215) - PLATFORM HYDRAULIC LIFT CONTROL VALVE, FOR HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

156196C92

VALVE

ASSY, platform lift control, Consists of ref nos. 1 thru 30

1шт.

1

587569R1

PLATE, valve port

1шт.

426444

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

SCREW, 5/16 x 3-1/4 cap

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

588347R1

PLUG

1шт.

3

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

2шт.

4

587571R1

PLATE, end

1шт.

5

587585R1

WASHER

backup

1шт.

6

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

1шт.

7

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

8

167447C91

VALVE

ASSY, Includes ref nos. 5, 6 and 7

1шт.

9

587579R1

O-RING

3/4 x 7/8 x 1/16

4шт.

10

587594R1

O-RING

1-1/2 x 1-11/16 x 3/32

1шт.

11

159376C91

VALVE

ASSY, four-way, Includes ref nos. 12 through 30

1шт.

12

169240R1

O-RING

3/32 x 9/16 ID

1шт.

13

588353R1

SPRING

spool centering

1шт.

14

937198R91

CAP

ASSY

1шт.

15

159801C1

PLUG

1шт.

16

171325C1

VALVE ASSY, thermal relief

1шт.

17

159382C1

SPRING

lockout

1шт.

18

159380C91

VALVE

POPPET ASSY

1шт.

19

159379C1

PLUNGER

lockout

1шт.

20

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

21

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

3шт.

22

159381C1

SEAT, lockout

1шт.

23

937195R1

SPRING WASHER

1шт.

24

937194R1

SPRING WASHER

spool spring

1шт.

25

SPOOL, Order valve assy 159376C91

1шт.

26

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

27

387436R1

TAPPET

PLUNGER, check

1шт.

28

387437R1

SPRING

check

1шт.

29

NOT SERVICED SEPARATELY ORDER 159803C91 CHECK VALVE ASSY

1шт.

30

937197R1

SCREW,1/4" - 20 x 2-5/16"

spool spring

1шт.

31

K11181

SPACER, platform lift valve support

2шт.

32

159803C91

VALVE

ASSY, check plug

1шт.

155962C91

KIT ASSY, seal repair, Composed of

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

S

2шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

S

3шт.

588351R91

VALVE

POPPET ASSY

1шт.

156197C91

KIT, major seal repair, Composed of

1шт.

155962C91

KIT

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

587585R1

WASHER

1шт.

587579R1

O-RING

S

4шт.

587594R1

O-RING

1шт.

2751272R1

PRODUCT GRAPHIC

INTERNATIONAL, Product graphic

1шт.

2751273R1

PRODUCT GRAPHIC

INTERNATIONAL, Product graphic

1шт.

654389R93

PRODUCT GRAPHIC

KIT, product graphics decal, Consists of the following

1шт.

1001615R1

DECAL

DIRECTION, open sieve, product graphic

1шт.

1001855R2

FILTER

IMPORTANT, product graphic

1шт.

1001856R3

DIRECTION, oil reservoir, product graphic

1шт.

2750738R1

GREASE FITTING INDICATOR, product graphic

10шт.

2751549R1

INSTRUCTION

LUBRICATION INSTRUCTIONS, propulsion sheave, product graphic

1шт.

2752659R2

INDICATOR

DIRECTION, product graphic

1шт.

2752660R1

INDICATOR

DIRECTION, product graphic

1шт.

2752855R1

PRODUCT GRAPHIC

I.H., operator cab, product graphic

1шт.

2753592R1

DECAL

IMPORTANT, product graphic

1шт.

2753652R1

IMPORTANT, product graphic

1шт.

2753929R1

DECAL

SAFETY AND OPERATING INSTRUCTIONS, product graphic

1шт.

2753943R1

DECAL

IMPORTANT, product graphic

1шт.

2754032R1

PRODUCT GRAPHIC

MODEL NUMBERS, product graphic

2шт.

2754033R1

MODEL NUMBERS, product graphic

1шт.

2754145R1

SHIFTING UNIT

SHIFT PATTERN, product graphic

1шт.
