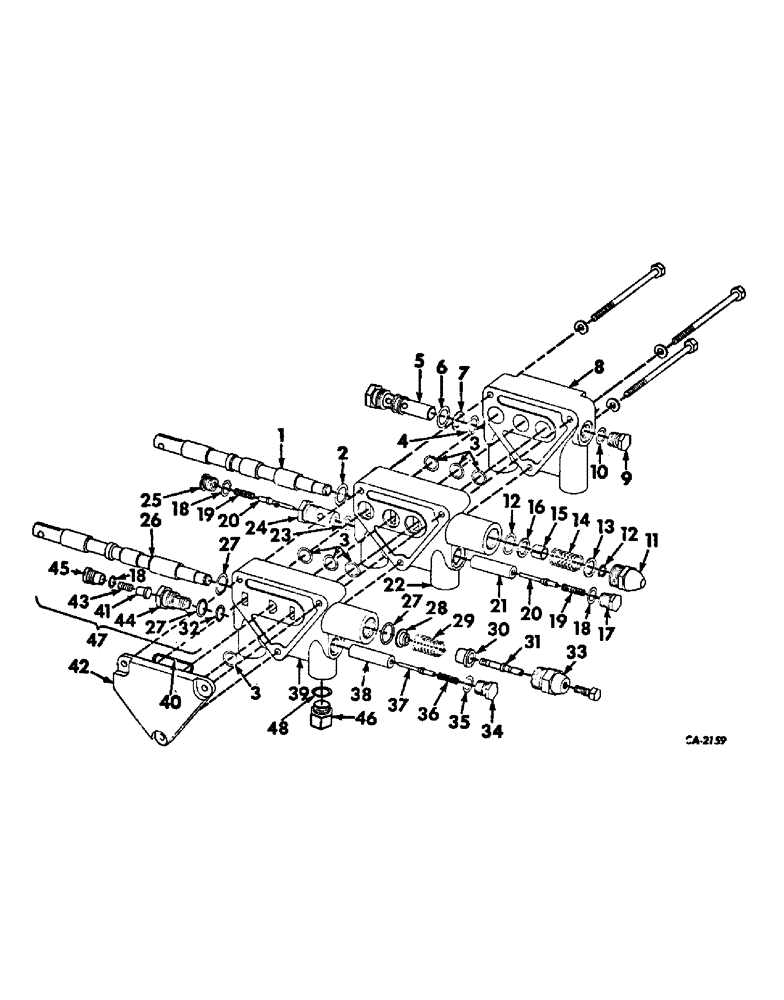

Запчасти Case IH 503 (213) - HYDRAULIC PROPULSION DRIVE AND PLATFORM, LIFT VALVE (35) - HYDRAULIC SYSTEMS

156201C92

LOCK VALVE

VALVE ASSY, platform lift and propulsion control, Not hydrostatic ground drive

1шт.

1

SPOOL, Order 588344R91 valve assy, Ref. no. 22

1шт.

2

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 ID

3шт.

3

587579R1

O-RING

1/16 x 3/4 ID

7шт.

4

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

5

167447C91

VALVE

ASSY, relief, Includes ref. nos. 4, 6 and 7, 1750 PSI

1шт.

6

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 ID

1шт.

7

587585R1

WASHER

backup

1шт.

8

587569R1

PLATE, valve port

1шт.

272392

NUT,Hex, 5/16" - 18 x 4 3/4", Gr 5

5/16 X 4-7/8 CAP SCREW

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9

588347R1

PLUG

1шт.

10

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

11

588346R91

CAP ASSY

1шт.

12

NOT USED

1шт.

13

557268R1

WASHER

1шт.

14

588353R1

SPRING

spool centering

1шт.

15

588345R1

SLEEVE

spool

1шт.

16

11002VA

WASHER

1шт.

17

588347R1

PLUG

1шт.

18

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

19

574789R1

SPRING

2шт.

20

588351R91

VALVE

POPPET ASSY

2шт.

21

588352R1

PLUNGER

lockout

1шт.

22

588344R91

VALVE ASSY, four-way, Includes ref nos. 1, 2, 11 through 16, 17 through 21, 23, 24 and 25

1шт.

23

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

24

588349R1

SEAT

lockout

1шт.

25

391458R1

PLUG

slt.

1шт.

26

SPOOL, Order 159376C91 valve assy ref no. 39

1шт.

27

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 ID

3шт.

28

937194R1

SPRING WASHER

spool spring

1шт.

29

588353R1

SPRING

spool centering

1шт.

30

937195R1

SPRING WASHER

spool spring

1шт.

31

937197R1

SCREW,1/4" - 20 x 2-5/16"

spool spring

1шт.

32

169240R1

O-RING

3/32 x 9/16 ID

1шт.

33

937198R91

CAP

ASSY

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

34

159801C1

PLUG

1шт.

35

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

36

159382C1

SPRING

lockout

1шт.

37

159380C91

VALVE

POPPET ASSY

1шт.

38

159379C1

PLUNGER

lockout

1шт.

39

159376C91

VALVE

ASSY, four way, Includes ref nos 26 through 38, 43, 44, 45 and 47

1шт.

40

587594R1

O-RING

3/32 x 1-1/2 ID

1шт.

41

387436R1

TAPPET

PLUNGER, check

1шт.

42

587571R1

PLATE, end

1шт.

43

387437R1

SPRING

check

1шт.

44

159381C1

PLUG

1шт.

45

PLUG, Not serviced separately order 159803R91 plug assy

1шт.

46

171325C1

VALVE ASSY, thermal relief

1шт.

47

159803C91

VALVE

PLUG ASSY, check

1шт.

48

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/32 x 41/64

1шт.

159383C91

PACKAGE

KIT ASSY, seal repair, Composed of

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

S

3шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

159380C91

VALVE

POPPET ASSY

1шт.

156202C92

SEAL KIT

ASSY, major seal repair, Composed of

1шт.

159383C91

PACKAGE

KIT ASSY

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

S

3шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

S

4шт.

588351R91

VALVE

POPPET ASSY

2шт.

587579R1

O-RING

S

4шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

587585R1

WASHER

1шт.

587594R1

O-RING

1шт.
