Запчасти Case IH 503 (209) - FOOT-N-INCH CONTROL PEDAL AND VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

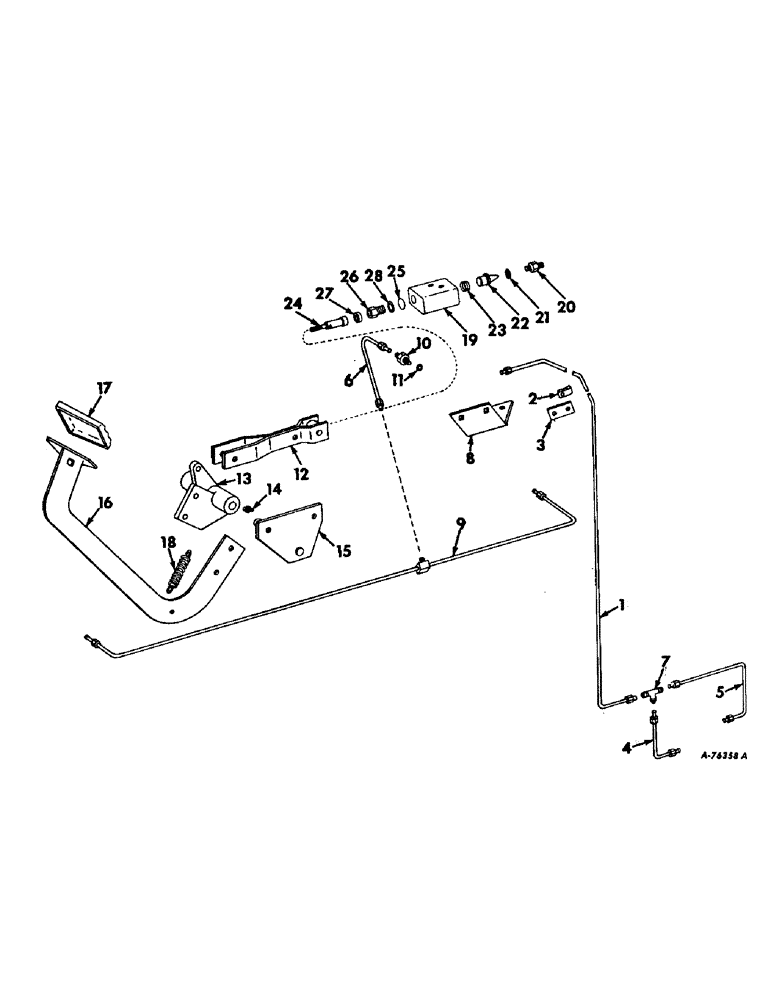

Схема запчастей Case IH 503 - (209) - FOOT-N-INCH CONTROL PEDAL AND VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS
21
14
5
9
27
15
12
25
18
10
20
13
2
4
19
24
17
16
7
11
22
26
1
23
3
6
28
8

Артикул

Название

Примечание

Количество

1

164410C92

TUBE ASSY, foot-n-inch valve upper

1шт.

2

573674R1

CLIP

hydraulic tube

2шт.

3

634109R1

STRIP, hydraulic tube clip

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

4

165626C92

TUBE

ASSY, foot-n-inch valve lower front

1шт.

5

164407C92

TUBE

ASSY, foot-n-inch valve lower rear

1шт.

6

164408C91

TUBE ASSY, foot-n-inch valve return

1шт.

7

9402979

TEE,7/16"-20, 37 Degree

7/16-20 three way 37 deg hyd tube

1шт.

8

164369C1

SUPPORT, foot-n-inch valve

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

164409C91

TUBE ASSY, steering return

1шт.

120368

NUT,5/16"-24, G5

5/16 C-Z hex-jam

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

164419C1

CONNECTOR, 1/2-20 and 9/16-18 37 deg hyd tube

1шт.

11

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.

12

164404C91

YOKE ASSY, foot-n-inch valve front

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

13

938870R1

PIVOT, foot-n-inch pedal

1шт.

14

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

15

627463R91

PIN ASSY, foot-n-inch pedal pivot

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

2шт.

16

939636R91

LEVER ASSY, foot-n-inch pedal

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

863426R1

PAD

foot-n-inch pedal rubber

1шт.

18

52635R1

SPRING

foot-n-inch pedal lever return

1шт.

19

398706R1

BODY, valve

1шт.

20

398709R1

SEAT

poppet valve

1шт.

21

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, Valve seat

1шт.

22

398710R1

VALVE POPPET

VALVE, poppet

1шт.

23

403434R1

SPRING

valve

1шт.

24

398708R1

STOP

valve

1шт.

25

401293R91

PACKAGE

relief valve shims

1шт.

26

398707R11

GUIDE

ASSY, valve spring stop, Includes ref no 27

1шт.

27

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

oil

1шт.

28

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 OD tube

1шт.

403347R91

LOCK VALVE

VALVE ASSY, foot-n-inch, Includes ref nos 19 thru 28

1шт.
