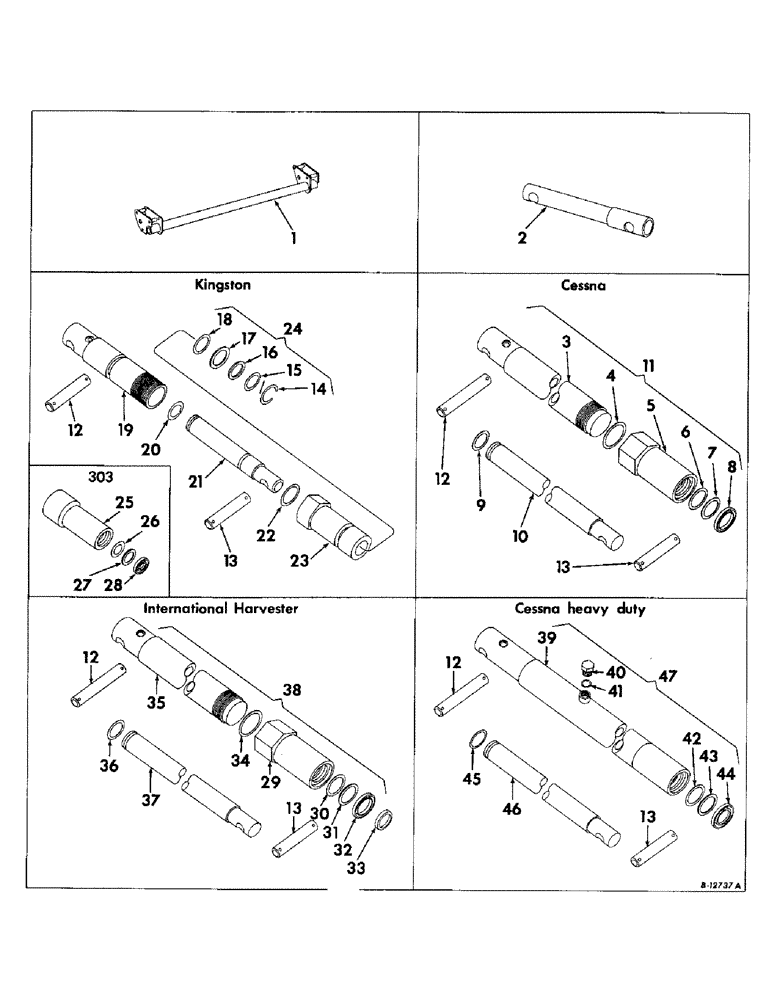

Запчасти Case IH 503 (206) - PLATFORM HYDRAULIC LIFT CYLINDER, AND EXTENSION (35) - HYDRAULIC SYSTEMS

1

NOT USED

1шт.

2

634167R91

EXTENSION W/TUBE, platform lift cylinder, Regular for windrow special

2шт.

564986R1

3-1/2 X 1 PIN

2шт.

3

570800R91

BARREL, platform hydraulic lift cylinder, For use with cylinder assy 570799R91

1шт.

3

570984R91

BARREL, platform hydraulic lift cylinder, For use with cylinder assy 570985R91

2шт.

4

843797R1

SCRAPER RING

O-RING, platform hydraulic lift cylinder front end bearing rear

2шт.

5

559916R1

BEARING, platform hydraulic cylinder front end

2шт.

6

558636R1

O-RING

platform hydraulic lift cylinder front end bearing front

2шт.

7

558632R1

WASHER

platform hydraulic lift cylinder plunger back-up

2шт.

8

559922R91

SEAL

OIL SEAL, platform hydraulic lift cylinder front end bearing

1шт.

9

559918R1

RING, SNAP

RING, platform hydraulic lift cylinder retainer

2шт.

10

NOT SERVICED SEPARATELY

1шт.

10

570983R1

PISTON, platform hydraulic lift cylinder front end, For use with cylinder assy 570985R91

2шт.

11

570799R91

CYLINDER ASSY, platform hydraulic lift, Includes ref. nos. 3 through 10, Optional to use cylinder assy 570801R92 and 383762R91 Not for 23.1/18-26 main wheel tires or track

1шт.

11

570985R91

CYLINDER ASSY, platform hydraulic lift, Includes ref. nos. 3 through 10, Optional to use cylinder assy 570810R92 and 383763R91 For 23.1/18-26 main wheel tires and track

1шт.

12

571181R1

PIN, platform rear hydraulic lift cylinder

2шт.

3/16 X 1-3/4 COTTER PIN

4шт.

13

569335R1

PIN, platform front hydraulic lift cylinder, 3-1/2 long

2шт.

3/16 X 1-3/4 COTTER PIN

8шт.

14

558631R1

SNAP RING, platform hydraulic lift cylinder piston

2шт.

15

558638R1

WASHER

platform hydraulic lift cylinder piston retaining

2шт.

16

558637R1

WASHER, platform hydraulic lift cylinder front bearing felt

2шт.

17

558632R1

WASHER

platform hydraulic lift cylinder piston backup

2шт.

18

558636R1

O-RING

platform hydraulic lift cylinder front bearing front

2шт.

19

NOT SERVICED SEPARATELY

1шт.

19

570811R91

BARREL ASSY, platform hydraulic lift cylinder, For use with cylinder assy 570810R92

1шт.

20

558639R1

SNAP RING, platform hydraulic lift cylinder piston

2шт.

21

570550R91

PISTON ASSY, platform hydraulic lift cylinder, For use with cylinder assy 570801R92

1шт.

21

569776R1

PLUNGER, platform hydraulic lift cylinder, For use with cylinder assy 570810R92

1шт.

22

843797R1

SCRAPER RING

O-RING, platform hydraulic lift cylinder front bearing rear

2шт.

23

570551R92

BEARING ASSY, cylinder front, Includes ref. nos. 14, 15, 16, 17 and 18

2шт.

24

570801R92

CYLINDER ASSY, platform hydraulic lift, Includes ref nos 18 through 23, Optional for cylinder assy 570799R91 and 383762R91, Not for 23.1/18-26 main wheel tires or track

1шт.

24

570810R92

CYLINDER ASSY, platform hydraulic lift, Includes ref nos. 18 through 23, Optional for cylinder assy 570985R91 and 383763R91, For 23.1/18-26 main wheel tires and track

1шт.

25

NOT USED

1шт.

26

NOT USED

1шт.

27

NOT USED

1шт.

28

NOT USED

1шт.

29

383778R11

HEAD

ASSY, rod end, Includes ref nos 32 and 33, For use with 383762R91 and 383763R91 cylinders

1шт.

30

464048R1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2 x 2-3/8 x 3/16, For use with 383762R91 and 383763R91 cylinders

1шт.

31

378726R1

BACK-UP RING

piston rod back-up, For use with 383762R91 and 383763R91 cylinders

1шт.

32

383783R1

SEAL

SEAL, piston rod dust, For use with 383762R91 and 383763R91 cylinders

1шт.

33

383779R1

RETAINER

piston rod seal, For use with 383762R91 and 383763R91 cylinders

1шт.

34

366581R1

O-RING,2.612" ID x 0.103" Width

2-5/8 x 2-13/16 x 3/32, For use with 383762R91 and 383763R91 cylinders

1шт.

35

383775R11

TUBE W/HEAD ASSY, cylinder, For use with 383762R91 cylinder 17.87" Length

1шт.

35

383776R11

TUBE W/HEAD ASSY, cylinder, For use with 383763R91 cylinder 19.37" Length

1шт.

36

378752R1

RING, PISTON

STOP RING, piston rod, For use with 383762R91 and 383763R91 cylinders

1шт.

37

383780R1

ROD, piston, For use with 383762R91 cylinder

1шт.

37

383781R1

ROD, piston, For use with 383763R91 cylinder

1шт.

38

383762R92

CYLINDER ASSY, platform hydraulic lift, Optional for cylinder assy 570799R91 and 570801R91, Not for 23.1/18-26 tires or track

1шт.

38

383763R92

CYLINDER ASSY, platform hydraulic lift, Optional for cylinder assy 570810R92 and 570985R91, For 23.1/18-26 tires or track

1шт.

39

631513R91

BARREL ASSY, For use with 631404R91 cylinder

1шт.

39

631510R91

BARREL ASSY, For use with 631403R91 cylinder

1шт.

40

9410359

PLUG

3/4

1шт.

41

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

42

253968R1

O-RING

1шт.

43

631622R1

WASHER

back-up

1шт.

44

466174R92

SEAL

ASSY

1шт.

45

631621R1

RING

LOCK RING

1шт.

46

631514R1

ROD, piston, For use with 631404R91 cylinder

1шт.

46

631511R1

ROD, piston, For use with 631403R91 cylinder

1шт.

47

631404R91

CYLINDER ASSY, platform hydraulic lift, Heavy duty, Special For 23.1/8-26 tires or track

1шт.

47

631403R91

CYLINDER ASSY, platform hydraulic lift, Heavy duty, Special, Not for 23.1/18.26 tires or track

1шт.

386692R92

KIT ASSY, hydraulic cylinder, For cylinders 383762R91 and 383763R91, Consists of

1шт.

464048R1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2 x 2-3/8 x 3/16

1шт.

378726R1

BACK-UP RING

piston rod back-up

1шт.

383783R1

SEAL

SEAL, piston rod dust

1шт.

383779R1

RETAINER

piston rod dust seal

1шт.

366581R1

O-RING,2.612" ID x 0.103" Width

2-5/8 x 2-13/16 x 3/32

1шт.
