Запчасти Case IH 503 (205) - HYDRAULIC PROPULSION CONTROL CYLINDER, CESSNA, NOT HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

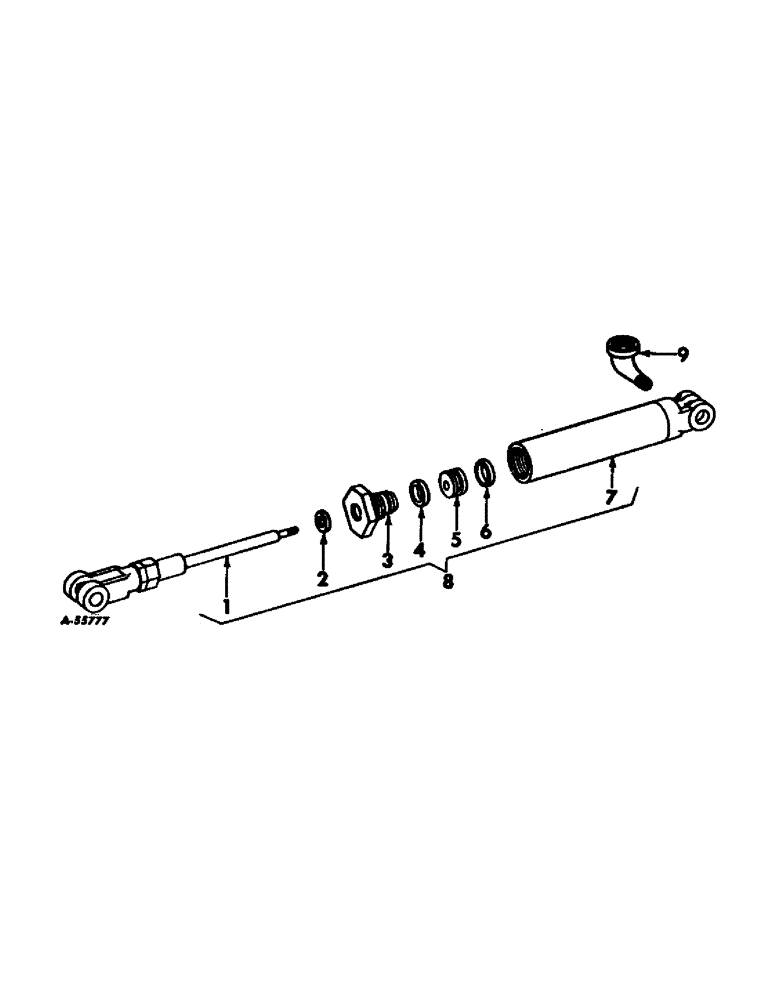

Схема запчастей Case IH 503 - (205) - HYDRAULIC PROPULSION CONTROL CYLINDER, CESSNA, NOT HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS
3
8
1
2
4
5
9
7
6

Артикул

Название

Примечание

Количество

1

574781R91

ROD ASSY, piston

1шт.

5/16 JAM NUT

1шт.

5/16 X 1-1/4 COTTER PIN

2шт.

5/8 X 1-3/4 DLD PIN

2шт.

5/16 LOCK WASHER

1шт.

2

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

piston rod

1шт.

3

574779R1

BEARING

1шт.

4

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

bearing

1шт.

5

NOT SERVICED SEPARATELY

1шт.

6

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

piston

1шт.

7

NOT SERVICED SEPARATELY

1шт.

8

574475R91

CYLINDER ASSY, hydraulic propulsion control, Order hydraulic propulsion control cylinder assy 387864R91 two 939480R91 hose assys and two o-rings 364839R1

1шт.

9

NOT USED

1шт.

Выбрано товаров: 13
