Запчасти Case IH 503 (197) - POWER STEERING KIT, SERIAL NO 2430 AND BELOW (35) - HYDRAULIC SYSTEMS

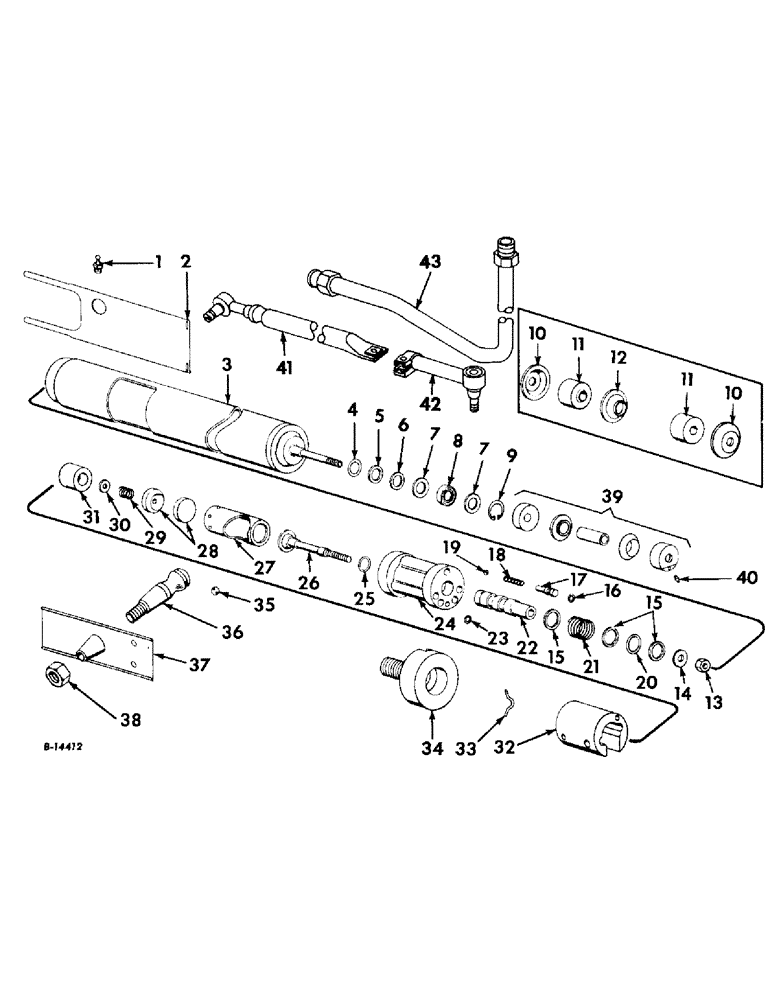

Схема запчастей Case IH 503 - (197) - POWER STEERING KIT, SERIAL NO 2430 AND BELOW (35) - HYDRAULIC SYSTEMS
2
36
26
33
31
30
20
4
11
10
8
29
15
23
7
41
27
35
3
21
38
28
42
14
18
40
9
6
11
37
12
34
32
22
25
19
7
10
24
1
16
15
13
5
39
43
17

Артикул

Название

Примечание

Количество

574041R92

CYLINDER BLOCK

CYLINDER AND VALVE ASSY, hydraulic steering, Includes ref nos 1 thru 38

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

615168R1

WASHER

25/32 X 1-1/2 X 11 GA WASHER

2шт.

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

2

574072R1

SHIM

RETAINER, ball socket dust cover

1шт.

3

HOUSING, cylinder assy, Order 574041R92 cylinder assy

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

4

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

cylinder housing piston rod

1шт.

5

574068R1

SPACER

RING, back-up cylinder housing piston rod

1шт.

6

574067R1

RING

cylinder housing piston rod retaining

1шт.

7

574066R1

RING

cylinder housing piston rod retaining

2шт.

8

566103R91

OIL RESERVOIR

OIL SEAL, cylinder housing piston rod

1шт.

9

303322R1

SNAP RING,1.00", Int, #100

Cylinder housing piston rod 1.00", Int, #100

1шт.

10

574077R1

RETAINER, cylinder housing piston rod frame bracket, Order service assy 626897R91, Ref no 39 and 40

1шт.

11

574078R1

CUSHION, cylinder housing piston rod frame bracket, Order service assy 626897R91, Ref no 39 and 40

1шт.

12

574079R1

LOCATOR, cylinder housing piston rod frame bracket cushion, Order service assy 626897R91, Ref. no. 39 and ref. no. 40

1шт.

13

231-2445

LOCK NUT,5/16"-24, GB

NUT, stop, elastic, 5/16-24UNF

1шт.

14

574076R1

WASHER

RING, retaining

1шт.

15

574075R1

WASHER

centering

3шт.

16

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

plug and roll pin

1шт.

17

574086R91

PLUG ASSY

1шт.

18

133238R1

VALVE SPRING

SPRING, ball

1шт.

19

17008R1

BALL,1/4" Dia

Steel 1/4" Dia

1шт.

20

574095R1

O-RING,0.76" ID x 0.107" Width

valve spool rear

1шт.

21

588119R1

SPRING

1шт.

22

574063R92

VALVE ASSY, Includes ref nos. 13 through 21, 23 and 25 through 27

1шт.

23

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

4шт.

24

BODY, valve, Order valve assy 574063R92, Ref no 22

1шт.

25

587579R1

O-RING

valve spool front

1шт.

26

574084R91

FLEXURE ASSY

1шт.

27

574088R1

SHELL, socket

1шт.

28

574083R1

SEAT, ball

2шт.

29

574064R1

SPRING

1шт.

30

16558R1

WASHER

17/64 x 5/8 x 15 ga

1шт.

31

574082R1

PLUG, adjusting

1шт.

32

574071R91

HOUSING ASSY, ball socket

1шт.

1/4 X 1/2 ROLL PIN

2шт.

33

574081R1

PIN, lock

1шт.

34

574087R1

CAP, end

1шт.

35

17014R1

BALL

7/16 steel

2шт.

36

574080R91

STUD ASSY, Includes ref no 35

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

615168R1

WASHER

25/32 X 1-1/2 X 11 GA

1шт.

37

574070R1

BOOT

SHIELD, ball socket dust

1шт.

38

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

39

626897R91

BALL AND SOCKET ASSY

1шт.

40

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

41

627492R91

TRUSS ROD

DRAG LINK ASSY, main

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

42

629912R91

END ASSY.

END ASSY, main drag link

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 X 2-1/2 HEX-HD MACH BOLT W/NUT

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

43

587575R91

HYDRAULIC HOSE,0.31" ID x 24.00", SAE 100R1

HOSE ASSY, power steering cylinder

2шт.
