Запчасти Case IH 503 (195) - HYDRAULIC STEERING CYLINDER, ROSS GEAR, SERIAL NO 2430 AND BELOW (35) - HYDRAULIC SYSTEMS

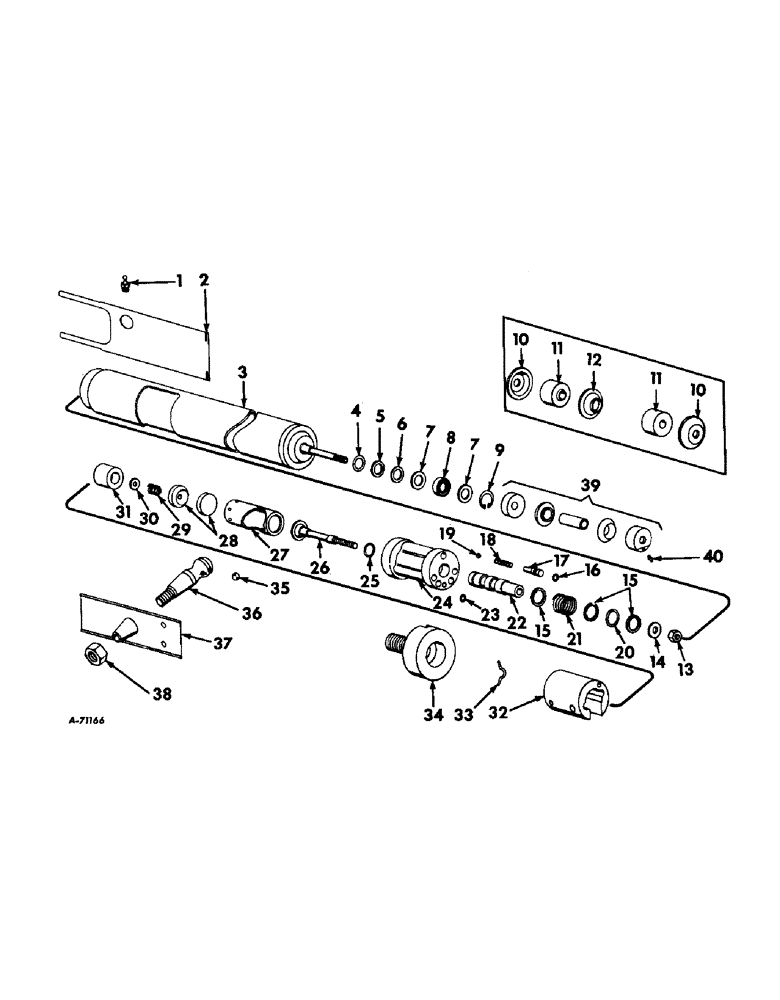

Схема запчастей Case IH 503 - (195) - HYDRAULIC STEERING CYLINDER, ROSS GEAR, SERIAL NO 2430 AND BELOW (35) - HYDRAULIC SYSTEMS
35
25
31
7
11
33
18
15
15
23
4
7
24
1
10
6
27
12
37
8
19
34
39
26
20
40
13
21
11
28
16
32
36
10
5
3
2
14
30
17
22
38
9
29

Артикул

Название

Примечание

Количество

574041R92

CYLINDER BLOCK

CYLINDER AND VALVE ASSY, hydraulic steering, Includes ref. nos. 1 thru 38

1шт.

1/8 X 1 COTTER PIN

1шт.

1/8 X 1-1/4 COTTER PIN

1шт.

615168R1

WASHER

25/32 X 1-1/2 X 11 GA WASHER

1шт.

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

2

574072R1

SHIM

RETAINER, ball socket dust cover

1шт.

3

HOUSING, cylinder assy, Order 574041R92 cylinder assy

1шт.

PIN, cotter, 1/8 x 1

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

4

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

cylinder housing piston rod

1шт.

5

574068R1

SPACER

RING, back up, Cylinder housing piston rod

1шт.

6

574067R1

RING

retaining, Cylinder housing piston rod

1шт.

7

574066R1

RING

retaining, Cylinder housing piston rod

2шт.

8

566103R91

OIL RESERVOIR

OIL SEAL, cylinder housing piston rod

1шт.

9

303322R1

SNAP RING,1.00", Int, #100

Cylinder housing piston rod 1.00", Int, #100

1шт.

10

574077R1

RETAINER, cylinder housing piston rod frame bracket, Order service assy 626897R91, Ref. no. 39 and ref. no. 40

1шт.

11

574078R1

CUSHION, cylinder housing piston rod frame bracket, Order service assy 626897R91, Ref. no. 39 and ref. no. 40

1шт.

12

574079R1

LOCATOR, cylinder housing piston rod frame bracket cushion, Order service assy 626897R91, Ref. no. 39 and ref. no. 40

1шт.

13

231-2445

LOCK NUT,5/16"-24, GB

NUT, stop, Elastic, 5/16-24 NF

1шт.

14

574076R1

WASHER

RING, retaining

1шт.

15

574075R1

WASHER

centering

3шт.

16

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

plug and roll pin

1шт.

17

574086R91

PLUG, assy

1шт.

18

133238R1

VALVE SPRING

SPRING, ball

1шт.

19

17008R1

BALL,1/4" Dia

Steel 1/4" Dia

1шт.

20

574095R1

O-RING,0.76" ID x 0.107" Width

valve spool, rear

1шт.

21

588119R1

SPRING

1шт.

22

574063R92

VALVE ASSY, Includes ref. nos. 13 through 21, 23 and 25 through 27

1шт.

23

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

4шт.

24

BODY, valve, Order valve assy 574063R92 ref. no. 22

1шт.

25

587579R1

O-RING

valve spool, front

1шт.

26

574084R91

FLEXURE ASSY

1шт.

27

574088R1

SHELL, socket

1шт.

28

574083R1

SEAT, ball

2шт.

29

574064R1

SPRING

1шт.

30

16558R1

WASHER

17/64 ID x 5/8 OD x 15 ga

1шт.

31

574082R1

PLUG, adjusting

1шт.

32

574071R91

HOUSING W/PIN ASSY, ball socket

1шт.

PIN, roll 1/4 x 1/2

2шт.

33

574081R1

PIN, lock

1шт.

34

574087R1

CAP, end

1шт.

35

17014R1

BALL

7/16 steel

2шт.

36

574080R91

STUD W/BALL ASSY, Includes ref. no. 35

1шт.

PIN, cotter, 1/8 x 1-1/4

1шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

1шт.

37

574070R1

BOOT

SHIELD, ball socket dust

1шт.

38

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

39

626897R91

BALL AND SOCKET ASSY, service package

1шт.

40

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

Выбрано товаров: 49
