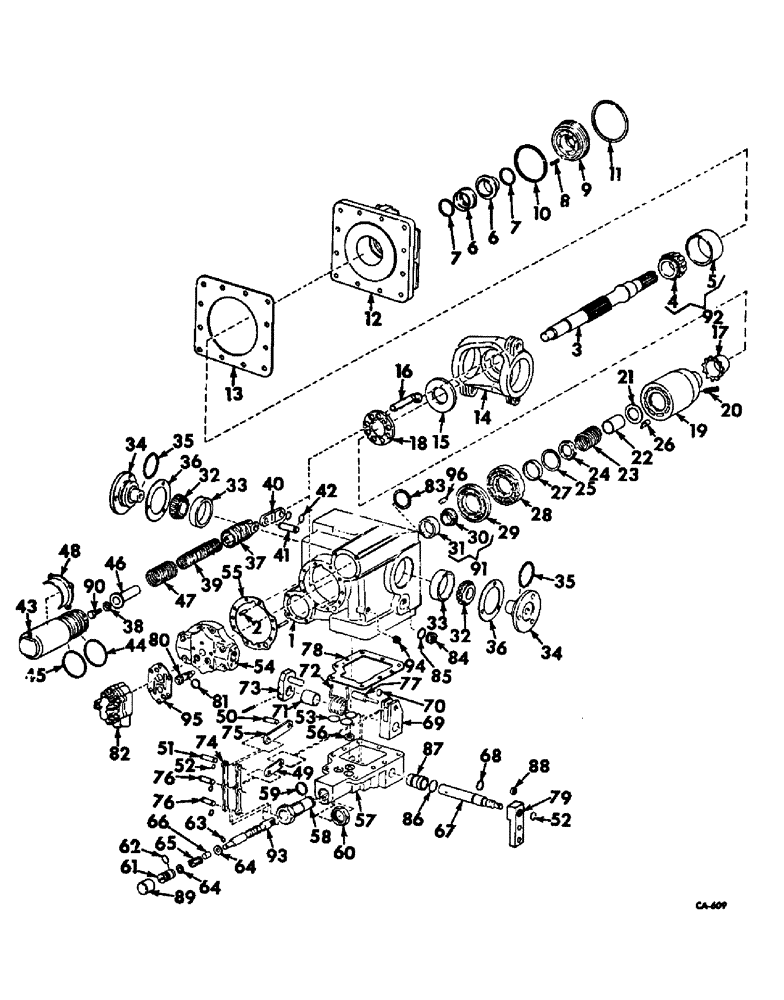

Запчасти Case IH 503 (190) - HYDRAULIC TRANSMISSION PUMP, FOR HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

150642C95

PUMP

ASSY, ground drive

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 11 C-Z hex.

4шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8 x 2-1/2 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

614774R1

WASHER, 21/32 x 1-11/16 x 3/16

4шт.

1

394179R1

HOUSING

transmission pump

1шт.

2

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2 dowel

1шт.

PUMP HOUSING

4шт.

3

394180R1

SHAFT

pump drive

1шт.

4

BEARING ASSY, drive shaft front cone, Not serviced separately order bearing assy 394181R91

1шт.

5

BEARING ASSY, drive shaft front cup, Not serviced separately order bearing assy 394181R91

1шт.

6

403072R92

O-RING KIT

o-ring and seal, Includes ref. nos. 7, 8 and 10

1шт.

7

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

1-9/16 x 1-3/4 x 3/32, Replaces 393880R1

2шт.

8

393882R1

SPRING

drive shaft face seal retainer

6шт.

9

393881R91

RETAINER

ASSY, drive shaft face seal

1шт.

10

707720R1

O-RING

3 x 3-1/4 x 1/8

1шт.

11

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , drive shaft face seal 3.346", Int, #334

1шт.

12

394183R1

COVER, transmission pump front

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

4шт.

394881R1

WASHER

13/32 x 11/16 x .106

13шт.

13

394184R1

GASKET

transmission pump front cover

1шт.

14

394185R1

SWASHPLATE, transmission pump

1шт.

15

394186R3

PLATE

piston slipper thrust

1шт.

16

539252R1

PISTON ASSY.

PISTON ASSY, cyl block, Replaces 394187R92

9шт.

17

394188R1

GUIDE

cyl block piston slipper

1шт.

18

394189R1

RETAINER

cyl block piston slipper

1шт.

19

394190R91

BLOCK

ASSY, piston cyl

1шт.

20

394191R1

SPRING

piston cyl block

9шт.

21

394192R1

SEAT

piston cyl block spring

1шт.

22

394193R1

BUSHING

drive shaft rear spring

1шт.

23

532290R1

SPRING

cylinder block

1шт.

24

394195R1

RETAINER

drive shaft rear spring

1шт.

25

21016R1

SNAP RING,#231, 2.413, Int, Spiral

RING, drive shaft rear spring retainer snap

1шт.

26

527636R1

PIN

cyl block brg plate, Replaces 394196R1

1шт.

27

394197R1

RING

cyl block brg plate pilot, Replaces 535747R1

1шт.

28

399406R1

PLATE

cyl block brg, Will work for 394198R1

1шт.

29

530769R1

PLATE

cyl block valve, Replaces 394199R1

1шт.

30

BEARING ASSY, drive shaft rear pilot cone, Not serviced separately order bearing assy 394200R91

1шт.

31

BEARING ASSY, drive shaft rear pilot cup, Not serviced separately order bearing assy 394200R91

1шт.

32

165963R91

BEARING

ASSY, swashplate cone

2шт.

33

560954R1

BEARING ASSY,1.37525" ID x 2.8755" OD x 0.9688"

swashplate cup

2шт.

34

394204R1

TRUNNION

swashplate brg

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

394881R1

WASHER

13/32 x 11/16 x .106 ga

6шт.

35

21003R1

O-RING,2.484" ID x 2.762" OD x 0.139"

2-1/2 x 2-3/4 x 1/8

2шт.

36

394205R91

SET

swashplate brg trunnion gasket

1шт.

37

537761R1

PISTON

servo, Includes ref no. 39

2шт.

537762R1

SCREW

1/4-20 x 5/8 hex-hd cap, On orders for 529300R1 also furnish cap screw, 537762R1, On orders for 394206R1 or 403073R1 also furnish sleeve assy, 403074R2 and cap screw, 537762R1

1шт.

38

394207R1

WASHER

servo piston bolt

2шт.

39

SPRING, servo piston bolt, Furnish piston, 537761R1 sleeve assy, 403074R2 and cap screw, 537762R1

2шт.

40

549725R1

LINK

servo piston, Replaces 394208R1 and 406112R1

2шт.

41

65797C1

PIN

servo piston link, On orders for 394209R1, Furnish pin 65797C1 & snap ring 267805R1

4шт.

42

321935C1

SNAP RING,#62, Ext

Ring, Snap, , servo piston link pin, used w/pin 394209R1 #62, Ext

8шт.

42

267805R1

RING

servo piston link pin snap, Used w/pin 65797C1

8шт.

43

403074R2

SLEEVE

servo piston, Replaces 394210R1

2шт.

44

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 x 3/32

2шт.

45

21005R1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

2-3/8 x 2-9/16 x 3/32

2шт.

46

394211R1

GUIDE

servo piston spring

2шт.

47

549726R1

SPRING

servo piston, Replaces 394212R1

1шт.

48

394213R1

RETAINER

servo piston sleeve

2шт.

536291R1

SCREW

10-24 x 3/8 cdp self tap

4шт.

49

406904R1

ELEC CONNECTOR

CONNECTOR, control valve link, On orders for 394234R1 furnish link 406903R1 connector 406904R1 and pin 406905R1

1шт.

50

394215R1

PIN

control valve link front

1шт.

51

404781R1

PIN

control valve link rear, Replaces 394216R1

1шт.

385180R1

WASHER

17/64 x 5/8 x .036

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

52

21346R1

SNAP RING,#25, Ext, E-Type

Ring, Retaining, , control valve link pin, replaces 233045R1 #25, Ext, E-Type

3шт.

53

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

1шт.

54

530731R1

CAP

COVER, transmission pump rear end

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

394881R1

WASHER

13/32 x 11/16 x .106

9шт.

55

394218R1

GASKET

transmission pump rear end cover

1шт.

56

394219R1

PLUG

control valve orifice

1шт.

533555R91

VALVE ASSY, control, Replaces 394220R91, Includes ref nos 57 through 81 and 94

1шт.

57

533856R1

VALVE

KIT, control valve and spool, Includes ref. no. 93

1шт.

179806

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

SCREW, 1/4-20 x 2-1/4 hex-hd cap

9шт.

385180R1

WASHER

9/32 x 1/2 x .065

9шт.

58

394222R1

HOUSING

centering spring

1шт.

59

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

1шт.

60

394223R1

LOCK NUT

centering spring housing lock

1шт.

61

394224R1

SCREW,Sl, 3/4" - 16 x 1.56"

centering spring adjusting

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 hex. jam

1шт.

62

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

13/16 x 15/16 x 1/16

1шт.

63

21346R1

SNAP RING,#25, Ext, E-Type

Ring, Retaining, , replaces 233045R1 #25, Ext, E-Type

6шт.

64

394225R1

WASHER

centering spring

2шт.

65

394226R1

SPRING

centering

1шт.

66

394227R1

SLEEVE

centering spring

1шт.

67

394228R1

SHAFT

control valve handle

1шт.

68

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16, Replaces 355967R1

1шт.

69

406903R1

LINK

control valve handle shaft, On orders for 394229 link furnish link 406903R1, Connector 406904R1 and 406905R1 pin

1шт.

70

235529R1

SNAP RING,#50, Ext, Crescent

Ring, Snap, , control valve handle shaft #50, Ext, Crescent

1шт.

71

394230R1

SLEEVE

control valve handle shaft return spring

1шт.

72

394231R1

SPRING

control valve handle shaft return

1шт.

73

394232R1

ARM

ACTUATOR, control valve handle shaft return spring

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

74

394233R1

LINK, control valve

2шт.

75

394214R1

LINK

control valve

1шт.

76

394235R1

PIN

control valve link pivot

2шт.

77

406905R1

PIN

control valve handle shaft link, On orders for 394236R1 furnish link 406903R1, Connector 406904R1 and pin 406905R1

1шт.

78

394237R2

GASKET

control valve housing

1шт.

79

404782R1

HANDLE

control valve shaft

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER, 1/4 ext-tooth med lock, On orders for 153869C1 furnish 404782R1 handle, 404783R1 spacer and 121753 lockwasher

1шт.

80

394238R91

VALVE

ASSY, charge pump check

2шт.

81

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 x 1/16

2шт.

82

404777R91

HYDROSTATIC PUMP

PUMP ASSY, hyd charge, Will work for 153866C91, Includes ref nos 82 through 95

1шт.

179809

BOLT,Hex, 1/4" - 20 x 3", Gr 5

4шт.

385180R1

WASHER

9/32 x 1/2 x .065

4шт.

83

404780R1

SHIM

pump shaft rear brg .010, 1 used when required

1шт.

84

9410356

PLUG

7/16-20 hex-hd o-ring boss

3шт.

85

369751

O-RING, .351 x .072

3шт.

86

23178

STOP

O-RING, 1-1/16 x 1-3/16 x 1/16

1шт.

87

404711R1

BUSHING

shaft

1шт.

88

404783R1

SPACER

control valve handle

1шт.

89

400546R1

COVER

centering spring housing

1шт.

90

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

91

394200R91

BEARING ASSY,1.0005" ID x 2.3442" OD x 0.923, 0.72"

ASSY, drive shaft rear pilot, Includes ref. nos. 30 and 31

1шт.

92

394181R91

BEARING ASSY,1.563" ID x 3.1572" OD x 1.1593, 0.9375"

ASSY, drive shaft front, Includes ref. nos. 4 and 5

1шт.

93

VALVE, control, Not serviced separately, Order kit, 533856R1

1шт.

94

444687

PLUG,Hex Soc, 1/8"-27

Drain Hex Soc, 1/8"-27

3шт.

95

533858R1

GASKET

pump end cover, Will work for 153871C1 and 404784R1

1шт.

96

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel

1шт.
