Запчасти Case IH 503 (189) - HYDROSTATIC STEERING PUMP, SERIAL NO. 2431 AND ABOVE (35) - HYDRAULIC SYSTEMS

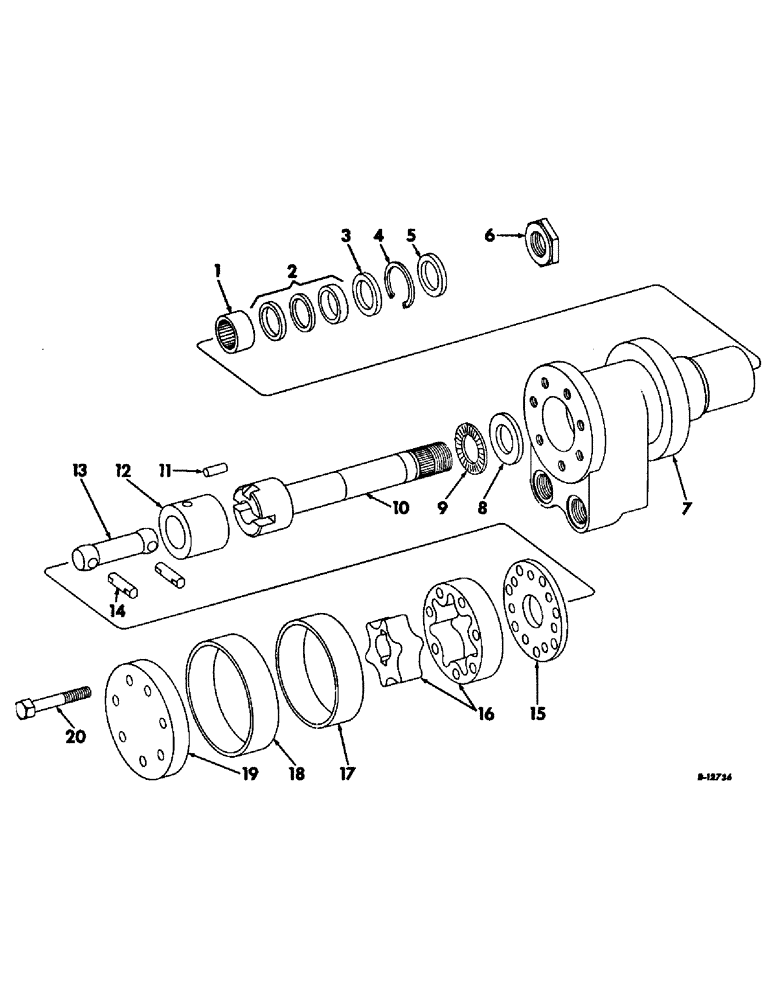

Схема запчастей Case IH 503 - (189) - HYDROSTATIC STEERING PUMP, SERIAL NO. 2431 AND ABOVE (35) - HYDRAULIC SYSTEMS
7
16
3
12
20
2
19
5
6
1
11
4
9
14
15
10
17
18
13
8

Артикул

Название

Примечание

Количество

378578R95

HYDRAULIC STEERING

PUMP ASSY, hydrostatic steering hand

1шт.

5/16 X 3/4 CAP SCREW

4шт.

5/16 LOCK WASHER

4шт.

1

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, needle

1шт.

2

535122R91

SERVICE KIT

PACKAGE, hydrostatic steering hand pump service

1шт.

3

535121R1

WASHER

pump shaft

1шт.

4

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, pump shaft

1шт.

5

226032R1

SEAL

steering hand pump dust, Not included in pump assy

1шт.

6

F19646

LOCK NUT,13/16"-20, Thin

NUT, coupling shaft wheel

1шт.

7

379694R91

BODY

PUMP BODY W/BEARING ASSY, Includes ref nos. 1 and 12

1шт.

8

379785R1

THRUST WASHER

RACE, needle thrust

1шт.

9

379783R91

THRUST BEARING

BEARING, needle

1шт.

10

379784R1

SHAFT

coupling

1шт.

11

379700R1

PIN

pump spool

1шт.

12

COMMUTATOR, Order body assy 379694R91

1шт.

13

379701R1

LINK

pump

1шт.

14

379693R1

PIN

pump link

2шт.

15

396545R1

PLATE

SPACER, pump

1шт.

16

379697R3

ROTOR

SET

1шт.

17

379781R1

BOOT

SEAL, motor

1шт.

18

379696R1

RING

RETAINER, seal

1шт.

19

379698R1

COVER

END, cover hydraulic pump

1шт.

20

379699R1

BOLT,Spcl, Hex, 5/16" - 18 x 1 3/4", Gr 5, HT

pump end cover

7шт.

405785R91

PACKAGE, REPAIR

KIT, spring and valve

1шт.

Выбрано товаров: 24
