Запчасти Case IH 503 (184) - PLATFORM HYDRAULIC LIFT PUMP (35) - HYDRAULIC SYSTEMS

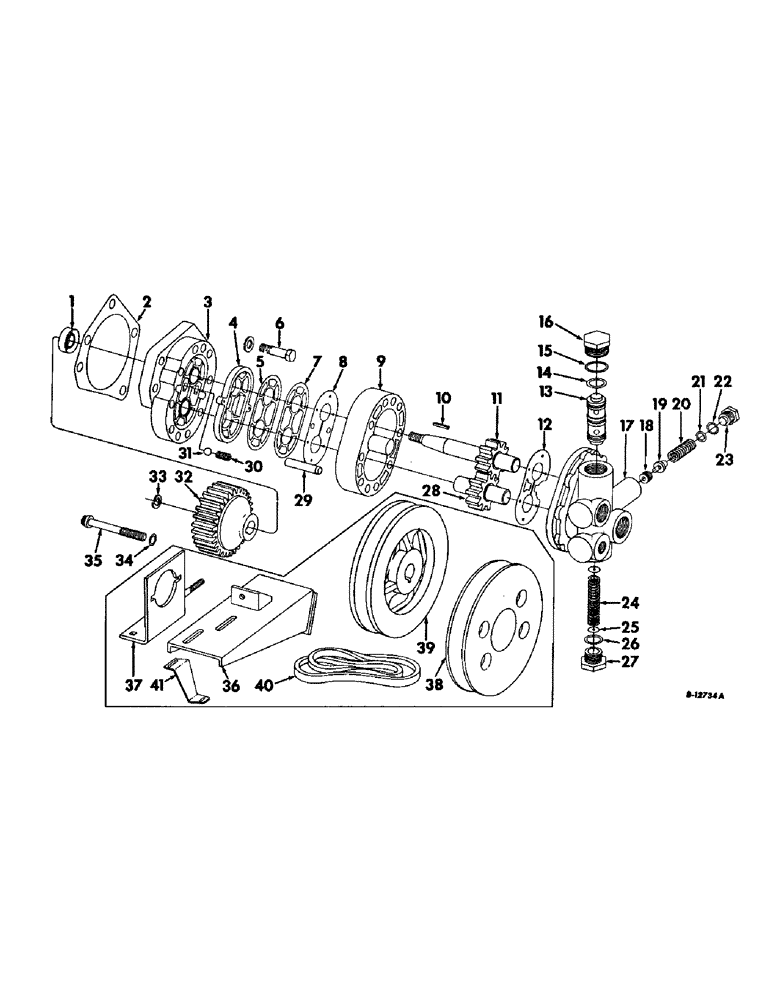

Схема запчастей Case IH 503 - (184) - PLATFORM HYDRAULIC LIFT PUMP (35) - HYDRAULIC SYSTEMS
32
2
39
15
37
19
24
25
18
28
4
17
11
10
12
35
36
41
22
1
23
27
30
21
16
38
3
5
7
40
20
8
26
14
9
34
13
33
6
31
29

Артикул

Название

Примечание

Количество

631143R92

PUMP

ASSY, hydraulic, Includes ref nos 1 thru 5, 7 thru 31, 34 and 35

1шт.

1

NOT SERVICED SEPARATELY

1шт.

2

632851R1

GASKET

flange

1шт.

3

NOT SERVICED SEPARATELY

1шт.

4

NOT SERVICED SEPARATELY

1шт.

5

NOT SERVICED SEPARATELY

1шт.

6

313756R1

BOLT (SPREADER),Pan, M8 x 18mm

BOLT, hydraulic pump mounting, Bolt

2шт.

3/8 X 1-1/4 NYLOK

1шт.

565832R1

WASHER

hydraulic lift pump mounting bolt

2шт.

7

NOT SERVICED SEPARATELY

1шт.

8

NOT SERVICED SEPARATELY

1шт.

9

NOT SERVICED SEPARATELY

1шт.

10

NOT SERVICED SEPARATELY

1шт.

11

NOT SERVICED SEPARATELY

1шт.

12

NOT SERVICED SEPARATELY

1шт.

13

NOT SERVICED SEPARATELY

1шт.

14

NOT SERVICED SEPARATELY

1шт.

15

NOT SERVICED SEPARATELY

1шт.

16

NOT SERVICED SEPARATELY

1шт.

17

NOT SERVICED SEPARATELY

1шт.

18

NOT SERVICED SEPARATELY

1шт.

19

NOT SERVICED SEPARATELY

1шт.

20

NOT SERVICED SEPARATELY

1шт.

21

NOT SERVICED SEPARATELY

1шт.

22

NOT SERVICED SEPARATELY

1шт.

23

NOT SERVICED SEPARATELY

1шт.

24

NOT SERVICED SEPARATELY

1шт.

25

NOT SERVICED SEPARATELY

1шт.

26

NOT SERVICED SEPARATELY

1шт.

27

NOT SERVICED SEPARATELY

1шт.

28

NOT SERVICED SEPARATELY

1шт.

29

NOT SERVICED SEPARATELY

1шт.

30

NOT SERVICED SEPARATELY

1шт.

31

NOT SERVICED SEPARATELY

1шт.

32

631180R1

GEAR

hydraulic pump

1шт.

33

632019R1

LOCK WASHER,3/8"

L.H. 3/8"

1шт.

34

NOT SERVICED SEPARATELY

1шт.

35

NOT SERVICED SEPARATELY

1шт.

36

NOT USED

1шт.

37

NOT USED

1шт.

38

NOT USED

1шт.

39

NOT USED

1шт.

40

NOT USED

1шт.

41

NOT USED

1шт.

654325R92

KIT ASSY, back plate repair, Consists of

1шт.

DISC (Used as required)

1шт.

O-RING, 3/32 x 7/16

1шт.

O-RING, 3/32 x 5/8

1шт.

O-RING, 1/16 x 11/16

3шт.

O-RING, 3/32 x 7/8

1шт.

PLATE

1шт.

PLUG, 9/16-18UNF

1шт.

PLUG, hex.

2шт.

POPPET

1шт.

SEAT

1шт.

SHIM (Used as required)

1шт.

SLEEVE AND SPOOL ASSY

1шт.

SPRING, relief valve

1шт.

SPRING

1шт.

WASHER

1шт.

169499C91

KIT

ASSY, seal repair, Consists of

1шт.

BACK-UP GASKET

1шт.

DIAPHRAGM

1шт.

SEAL

1шт.

GASKET, flange

1шт.

GASKET, protector

1шт.

O-RING, 3/32 x 7/16

1шт.

O-RING, 3/32 x 5/8

1шт.

O-RING, 1/16 x 3

1шт.

O-RING, 3/32 x 7/8

1шт.

SEAL

1шт.

BALL, steel

2шт.

PLATE

1шт.

SPRINGS

2шт.

Выбрано товаров: 74
