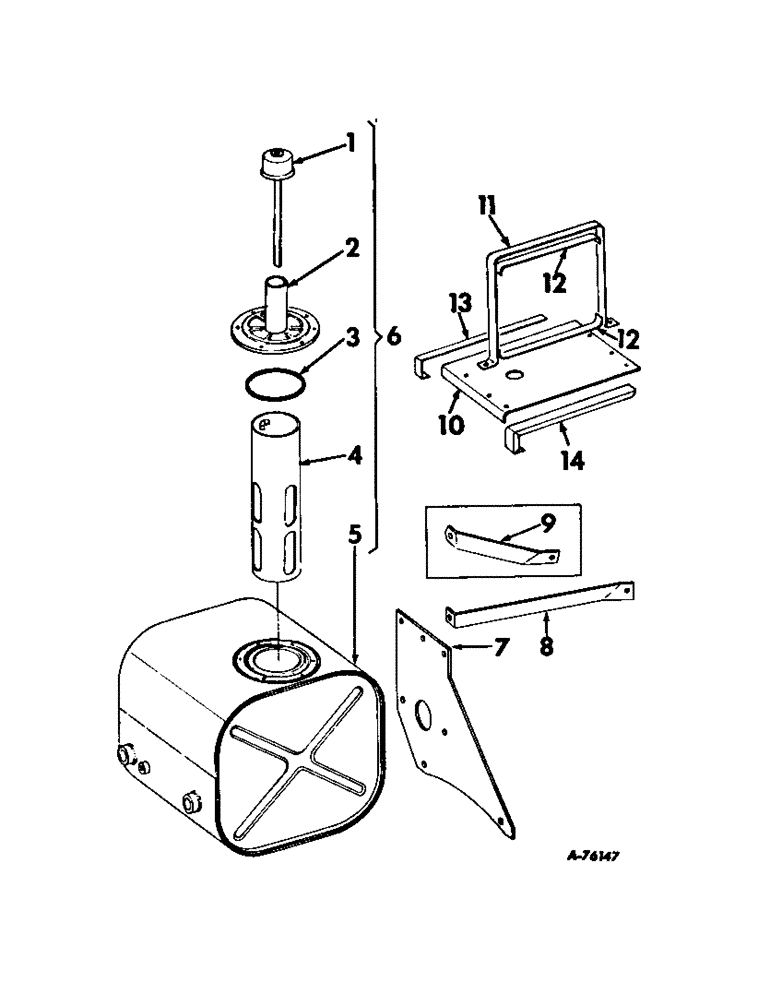

Запчасти Case IH 503 (183) - HYDRAULIC RESERVOIR, FOR HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

1

567521R91

CAP

BREATHER AND DIPSTICK W/GASKET ASSY

1шт.

2

155676C91

COVER ASSY

1шт.

3

574013R1

GASKET, cover

1шт.

4

155673C91

CARTRIDGE ASSY, screen

1шт.

5

BODY ASSY, reservoir, Order reservoir assy 150749C91, Serial nos. 3055 thru 3072, Order reservoir assy 154748C91, Serial no. 3251 and above

1шт.

6

150749C91

RESERVOIR ASSY, hydraulic, Serial nos. 3055 thru 3072

1шт.

6

154748C92

RESERVOIR ASSY, hydraulic, Serial no. 3251 and above

1шт.

7

627436R1

SUPPORT, hydraulic reservoir, Gasoline engine

1шт.

7

633695R1

SUPPORT, hydraulic reservoir, Diesel engine

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

631936R1

BRACE, reservoir, Gasoline engine

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

634583R1

BRACE, reservoir, Diesel engine

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

150746C1

SHEET, reservoir support

1шт.

11

150747C1

STRAP, reservoir hold down

2шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

PAD, reservoir hold down strap, 1/2 x 1 x 17-1/2 in. long cotton webbing, Order from bulk stock

2шт.

13

150643C1

SUPPORT, reservoir left

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

150644C1

SUPPORT, reservoir right

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
