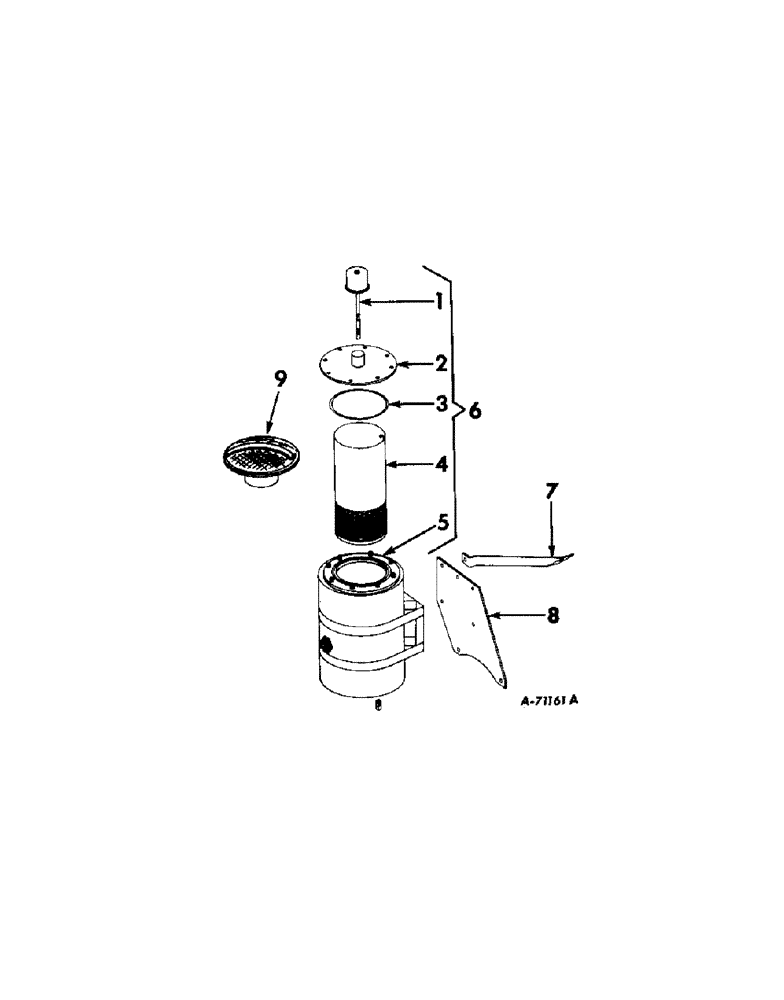

Запчасти Case IH 503 (182) - HYDRAULIC RESERVOIR, GASOLINE ENGINE, NOT HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

1

567521R91

CAP

BREATHER CAP AND DIPSTICK ASSY

1шт.

2

567435R91

COVER ASSY

1шт.

3

588375R1

RING

O-RING

1шт.

4

634333R91

CARTRIDGE ASSY, Serial no. 3250 and below

1шт.

4

155675C91

CARTRIDGE ASSY, Serial no., Serial Range: 3251-4765

1шт.

4

386121R92

VALVE

CARTRIDGE ASSY, Serial no 4766 and above

1шт.

5

BODY, reservoir, Order 633382R91 reservoir assy, Ref no. 6, Serial no. 3250 and below

1шт.

5

BODY, reservoir, Order 154682C91 reservoir assy, Ref no. 6, Serial no, Serial Range: 3251-4765

1шт.

5

BODY, reservoir, Order 156395C91 reservoir assy, Ref no 6, Serial no 4766 and above

1шт.

6

633382R91

RESERVOIR ASSY, Serial no. 3250 and below

1шт.

6

154682C91

RESERVOIR

ASSY, Serial no, Serial Range: 3251-4765

1шт.

6

156395C91

RESERVOIR

ASSY, Serial no 4766 and above

1шт.

5/16 X 1 CAP SCREW

2шт.

NO. 10 NUT

8шт.

110633

NUT,#10-24

5/16 NUT

2шт.

NO. 10 LOCK WASHER

8шт.

5/16 LOCK WASHER

2шт.

7

631936R1

BRACE, reservoir

1шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

8

627436R1

SUPPORT, reservoir

1шт.

3/8 X 3/4 MACH BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

9

386121R92

VALVE

ASSY, reservoir, For use w/reservoir assy 156395C91, Serial no 4766 and above

1шт.
