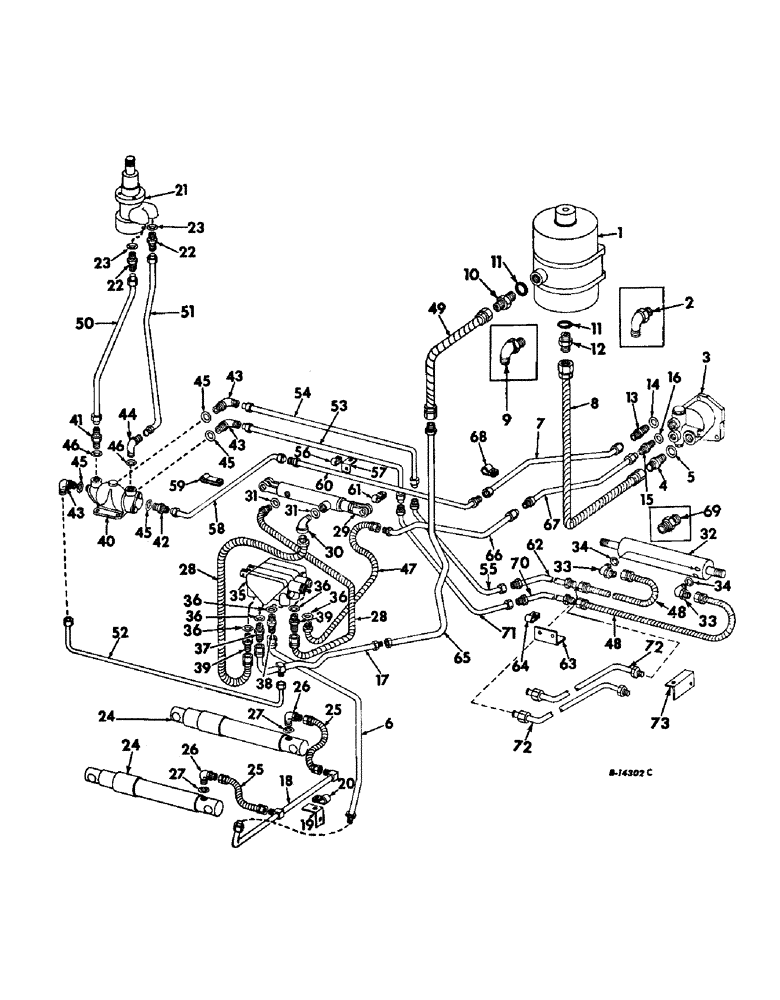

Запчасти Case IH 503 (174) - HYDRAULIC DIAGRAM, HYDROSTATIC STEERING (35) - HYDRAULIC SYSTEMS

1

633382R91

RESERVOIR ASSY, hydraulic oil, Serial no. 3250 and below

1шт.

1

154682C91

RESERVOIR

ASSY, hydraulic oil, Serial no. 3251 and above, For components see list of parts under details of hydraulic reservoir

1шт.

2

NOT USED

1шт.

3

631143R92

PUMP

ASSY, hydraulic lift, See note B, For components see list of parts under details of hydraulic lift pump

1шт.

4

574018R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, See note B

1шт.

5

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

pump suction hose, See note B

1шт.

6

627437R11

PIPE ASSY, platform lift cylinder upper

1шт.

7

939251R11

PIPE ASSY, pump to valve rear

1шт.

7

939260R11

PIPE ASSY, pump to valve rear, Serial no. 3250 and below

1шт.

7

154996C91

TUBE ASSY, pump to valve rear, Serial no. 3251 and above

1шт.

8

935703R91

HOSE ASSY, suction, See note B, Serial no. 3250 and below

1шт.

8

938297R91

HOSE ASSY, suction, Serial no. 3251 and above

1шт.

9

NOT USED

1шт.

10

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, See note B

1шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

reservoir connectors, Serial no. 3251 and above

2шт.

11

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

reservoir connectors, Serial no. 3251 and above, Not hydraulic reel drive or hydraulic pickup drive

2шт.

12

574018R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, See note B, Serial no. 3250 and below

1шт.

12

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, See note B, Serial no. 3251 and above

1шт.

13

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, pump pressure, See note B

1шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

pressure connector, See note B

1шт.

15

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, power steering upper pressure tube, See note B

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, power steering upper pressure tube connector, see note B

1шт.

17

588538R91

PIPE ASSY, front return

1шт.

17

939276R11

PIPE ASSY, front return, See note B

1шт.

18

631849R11

PIPE ASSY, platform lift cylinder lower 0.625" OD, 45.06, 4.75" Length

1шт.

19

583255R1

ANCHOR, platform lift cylinder lower tube clip

1шт.

20

587501R2

CLAMP

CLIP, tube

1шт.

20

567895R2

CLIP, tube

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 X 3/4 C-Z MACH BOLT W/NUT

1шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

1шт.

21

378578R93

HYDRAULIC STEERING

PUMP ASSY, steering hand, For components see list of parts under details of hydrostatic steering pump

1шт.

22

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR

2шт.

23

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

24

570799R91

CYLINDER ASSY, platform lift, Optional for 570801R92 or 383762R91 cylinder assy, For components see list of parts under details of platform lift cylinder

1шт.

24

570801R92

CYLINDER ASSY, platform lift, Optional for 570799R91 or 383762R91 cylinder assy, For components see list of parts under details of platform lift cylinder

1шт.

24

383762R92

CYLINDER ASSY, platform lift, Optional for 570799R91 or 570801R92 cylinder assy, For components see list of parts under details of platform lift cylinder

2шт.

24

570810R92

CYLINDER ASSY, platform lift, Optional for 570985R91 or 383763R91 cylinder assy, For components see list of parts under details of platform lift cylinder

2шт.

24

570985R91

CYLINDER ASSY, platform lift, Optional for 570810R92 or 383763R91 cylinder assy, For components see list of parts under details of platform lift cylinder

2шт.

24

383763R92

CYLINDER ASSY, platform lift, Optional for 570810R92 or 570985R91 cylinder assy, For components see list of parts under details of platform lift cylinder

2шт.

24

631403R91

CYLINDER ASSY, platform lift, For components see list of parts under details of platform lift cylinder

2шт.

24

631404R91

CYLINDER ASSY, platform lift, For components see list of parts under details of platform lift cylinder

2шт.

25

574230R91

HOSE ASSY.

HOSE ASSY, platform lift cylinder, 29 inches

2шт.

26

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

2шт.

27

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

28

574499R91

HOSE ASSY, propulsion control cylinder, 20 inch, For use with propulsion control cyl 574475R91

2шт.

28

939480R91

HOSE

ASSY, propulsion control cylinder, 20 inch, For use with propulsion control cyl 387864R91

1шт.

29

574475R91

CYLINDER ASSY, propulsion control, For components see list of parts under details of propulsion cyl, Order cylinder assy 387864R91, Two hose assy 939480R91 and two o-rings 364839R1

1шт.

29

387864R91

CYLINDER ASSY, propulsion control, For components see list of parts under details of propulsion cyl

1шт.

30

NOT USED

1шт.

31

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, propulsion control cylinder, for use with propulsion control cylinder 387864R91

2шт.

32

654631R91

CYLINDER ASSY, steering, For components see list of parts under details of steering cylinder, Optional for 397689R91 cylinder assy

1шт.

32

397689R91

CYLINDER ASSY, steering, For components see list of parts under details of steering cylinder assy, Optional for 654631R91 cylinder

1шт.

33

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

Not rice special, 1 used for rice special 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

33

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 1 used rice special

1шт.

34

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

35

156201C92

LOCK VALVE

VALVE ASSY, propulsion drive and platform list, For components see list of parts under details of propulsion drive and platform lift valve

1шт.

36

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5шт.

37

587577R1

CONNECTION,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, return tube

1шт.

38

574478R1

UNION

CONNECTOR, platform lift tube

1шт.

39

629349R1

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, propulsion control

2шт.

40

396726R91

LOCK VALVE

VALVE ASSY, steering, For components see list of parts under details of steering valve

1шт.

41

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 2 used w/hyd reel drive, 1 used w/out hyd reel drive

1шт.

42

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR

1шт.

43

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3шт.

44

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

See note B

1шт.

45

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.

46

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

47

631163R91

HOSE ASSY.

HOSE ASSY, valve pressure

1шт.

48

632455R91

HOSE

ASSY, steering cylinder

2шт.

48

633213R91

HOSE ASSY, steering cylinder, Tracks or rubber tires and wide guide wheel axle

2шт.

49

939277R91

HOSE ASSY, platform lift return, Serial no. 3250 and below

1шт.

49

155016C91

HOSE ASSY, platform lift return, Serial no. 3251 and above

1шт.

50

939254R11

PIPE ASSY, hand pump to valve LH

1шт.

51

939252R11

PIPE ASSY, hand pump to valve RH

1шт.

52

939253R11

PIPE ASSY, steering valve return

1шт.

53

654585R11

PIPE ASSY, steering valve to cylinder front upper 1.375" OD, 39.75, 4.81" Length

1шт.

54

654584R11

PIPE ASSY, steering valve to cylinder front lower 1.375" OD, 41.06, 5.24" Length

1шт.

55

939250R11

PIPE ASSY, steering valve to cylinder center

1шт.

56

589980R2

CLIP

6шт.

57

935670R1

ANGLE, pipe clip holder, Grain and rice, Serial no. 3250 and below, grain, Serial no. 3251 and above

1шт.

57

151290C1

ANGLE, pipe clip holder, Rice special, Serial no. 3251 and above

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, , w/nut Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 X 1 C-Z MACH BOLT W/NUT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

58

939259R11

PIPE ASSY, pump to valve front, Steering

1шт.

59

935765R1

CLIP

2шт.

60

939249R11

PIPE ASSY, pump to valve center, Grain tank, Serial no. 3250 and below

1шт.

60

154991C91

TUBE ASSY, pump to valve center steering, Grain tank, Serial no. 3251 and above

1шт.

61

589980R2

CLIP

6шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Grain Hex, 1/4"-20 x 1", G5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 X 1 C-Z CAP, 2 used grain, 5 used rice

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

62

939261R11

PIPE ASSY, valve to cylinder rear, Grain

1шт.

62

151696C91

PIPE ASSY, valve to cylinder rear lower, Rice, Serial no 4765 and below

1шт.

62

155953C91

PIPE ASSY, steering valve to cylinder, Rice and adjustable guide wheel axle, Serial no 4766 and above

1шт.

63

628190R1

SUPPORT, tube clip, Grain

1шт.

63

155950C1

ANGLE, steering valve to cylinder rear tube clip, Rice and adjustable guide wheel axle, Serial no 4766 and above

1шт.

64

589980R2

CLIP

6 for grain tank, 4 for bagger

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 X 1 C-Z CAP

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

65

627539R11

PIPE ASSY, platform lift rear return 0.75" OD, 46.25" Length

1шт.

66

628184R11

PIPE ASSY, platform lift front pressure, Grain tank 0.625" OD, 74.78, 4.69" Length

1шт.

67

628181R11

PIPE ASSY, rear pressure 0.625" OD, 39.38, 7.34" Length

1шт.

68

589980R2

CLIP

1шт.

69

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, rice special

1шт.

70

936261R11

PIPE ASSY, valve to cylinder rear, grain

1шт.

70

151695C91

PIPE ASSY, valve to cylinder rear, Serial no 4765 and below

1шт.

70

155953C91

TUBE ASSY, steering valve to cylinder rear, Rice and adjustable guide wheel axle, Serial no 4766 and above, rice

1шт.

71

939250R11

PIPE ASSY, steering valve to cylinder center

1шт.

72

155952C91

TUBE ASSY, steering valve to cylinder rear center, Rice and adjustable guide wheel axle, Serial no 4766 and above

1шт.

73

155951C1

ANGLE, steering valve to cylinder rear center tube, rice and adjustable guide wheel axle

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 X 1 C-Z MACH BOLT W/NUT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
