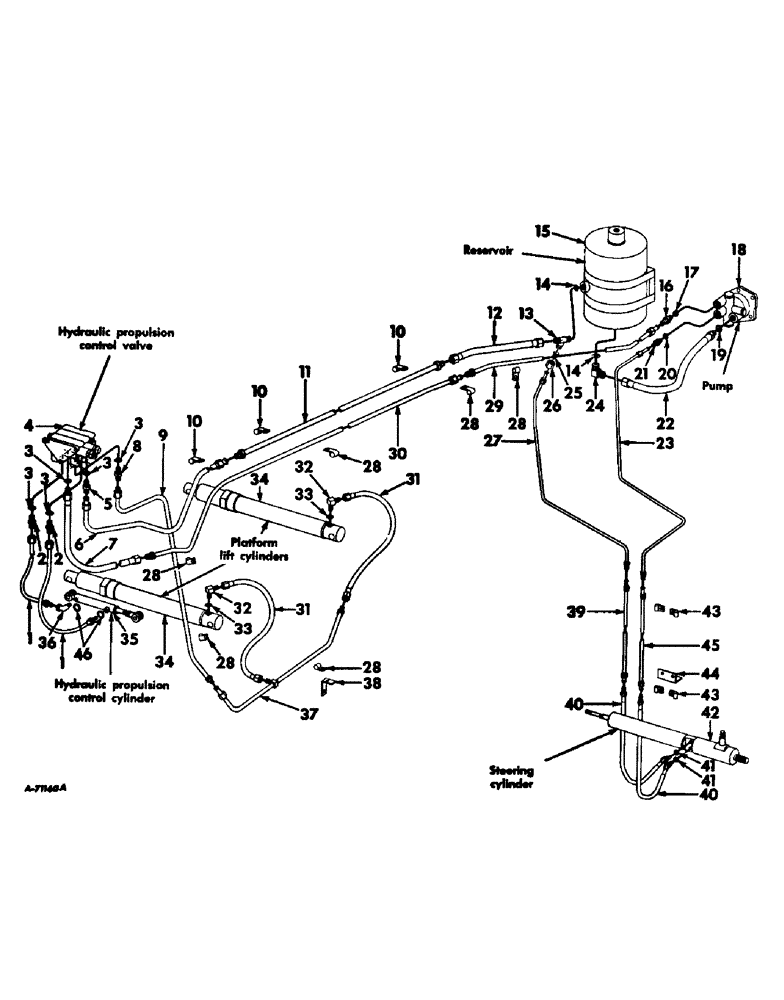

Запчасти Case IH 503 (172) - PLATFORM LIFT AND PROPULSION CONTROL, HYDRAULIC DIAGRAM (35) - HYDRAULIC SYSTEMS

1

574499R91

HOSE ASSY, propulsion control cylinder, For use with propulsion control cylinder 574475R91

2шт.

1

939480R91

HOSE

ASSY, propulsion control cylinder, For use with propulsion control cylinder 387864R91

2шт.

2

629349R1

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, propulsion control

2шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

platform lift and propulsion drive valve

5шт.

4

156201C92

LOCK VALVE

1шт.

VALVE ASSY, platform lift and propulsion drive, For components see list of parts under details of hydraulic propulsion drive and platform lift valve. Drive, For components see list of parts under details of hydraulic propulsion drive and platform lift valve

1шт.

5

587577R1

CONNECTION,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, return tube

1шт.

6

627440R11

TUBE W/NUT AND SLEEVE ASSY, front return, Note B 0.75" OD, 33.12, 6.87" Length

1шт.

7

631163R91

HOSE ASSY.

HOSE ASSY, valve pressure

1шт.

8

574478R1

UNION

CONNECTOR, platform lift tube

1шт.

9

627437R11

TUBE W/NUT AND SLEEVE ASSY, platform lift cylinder upper

1шт.

10

573099R2

CLIP

tube

3шт.

11

627539R11

TUBE W/NUT AND SLEEVE ASSY, rear return 0.75" OD, 46.25" Length

1шт.

12

633301R91

HOSE ASSY, platform lift return

1шт.

13

9411133

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring run

reservoir return

1шт.

14

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

reservoir connector

2шт.

15

633382R91

RESERVOIR ASSY, hydraulic oil, For components see list of parts under details of hydraulic reservoir brace and supports

1шт.

16

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, pump pressure, Note B

1шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

pressure connector, Note B

1шт.

18

631143R92

PUMP

ASSY, hydraulic, For components see list of parts under details of platform hydraulic lift pump

1шт.

19

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

pump suction hose

1шт.

20

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, steering pressure connector

1шт.

21

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, steering pressure

1шт.

22

938297R91

HOSE ASSY, suction, Not hydraulic reel drive

1шт.

23

627435R11

TUBE

W/NUT AND SLEEVE ASSY, power steering upper pressure

1шт.

24

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

reservoir suction

1шт.

25

9403404

ROD, CONNECTING,37 Degree, 3/4" x 3/8" Tube

REDUCER

1шт.

26

9403530

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT

1шт.

27

628189R11

TUBE W/NUT AND SLEEVE ASSY, power steering return

1шт.

28

567895R2

CLIP, tube

6шт.

5/16 X 3/4 MACH BOLT W/NUT

5шт.

5/16 LOCK WASHER

5шт.

29

628181R11

TUBE W/NUT AND SLEEVE ASSY, rear pressure 0.625" OD, 39.38, 7.34" Length

1шт.

30

627441R11

TUBE W/NUT AND SLEEVE ASSY, front pressure 0.625" OD, 72, 5.43" Length

1шт.

31

574230R91

HOSE ASSY.

HOSE ASSY, platform lift cylinder

2шт.

32

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

platform lift cylinder hose

2шт.

33

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

platform lift cylinder hose elbow

2шт.

34

570799R91

CYLINDER ASSY, platform hydraulic lift, Optional for 570801R92 cylinder assy, grain, For components see list of parts under details of platform hydraulic lift cylinder

1шт.

34

570801R92

CYLINDER ASSY, platform hydraulic lift, Optional for 570799R91 cylinder assy, grain, For components see list of parts under details of platform hydraulic lift cylinder

1шт.

34

570810R92

CYLINDER ASSY, platform hydraulic lift, Optional for 570985R91 cylinder assy, rice, For components see list of parts listed under details of platform hydraulic lift cylinder

1шт.

34

570985R91

CYLINDER ASSY, platform hydraulic lift, Optional for 570810R92 cylinder assy, rice, For components see list of parts listed under details of platform hydraulic lift cylinder

1шт.

35

574475R91

CYLINDER ASSY, hydraulic propulsion control, Order 387864R91 cylinder assy, two hose assy 939480R91 and two o-rings 364839R1

1шт.

35

387864R91

CYLINDER ASSY, hydraulic propulsion control, For components see list of parts under details of hydraulic propulsion control cylinder

1шт.

36

105422

ELBOW UNION

ELBOW, For use with propulsion control cylinder 574475R91

2шт.

37

631847R11

TUBE W/NUT AND SLEEVE ASSY, platform lift cylinder lower 0.625" OD, 36.06, 4.75" Length

1шт.

38

583255R1

ANCHOR, platform lift cylinder lower tube clip

1шт.

39

627538R11

TUBE W/NUT AND SLEEVE ASSY, power steering lower returns 0.375" OD, 46.06" Length

1шт.

40

587575R91

HYDRAULIC HOSE,0.31" ID x 24.00", SAE 100R1

HOSE ASSY, steering cylinder, For use with cylinder assy 574041R91 or 935156R92

2шт.

40

653909R91

HOSE ASSY, steering cylinder, For use with cylinder assy 629226R92, Serial no., Serial Range: 501-1469

1шт.

41

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, steering cylinder

2шт.

42

574041R92

CYLINDER BLOCK

CYLINDER AND VALVE ASSY, steering, For components see list of parts under details of hydraulic steering cylinder, For use with hose assy 587575R91, Ross

1шт.

42

629266R91

CYLINDER AND VALVE ASSY, steering, For components see list of parts under details of hydraulic steering cylinder, For use with hose assy 653909R91, Serial no. 501 to 1469, Order kit assy 156165C91, For components see list of parts under power steering kit

1шт.

42

935156R92

CYLINDER AND VALVE ASSY, steering, For components see list of parts under details of hydraulic steering cylinder, For use with hose assy 587575R91, Serial no. 1470 and above

1шт.

43

589980R2

CLIP

power steering tube

4шт.

1/4 NUT

2шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD SCREW

2шт.

1/4 LOCK WASHER

2шт.

44

628190R1

BRACE, power steering tube clip

1шт.

45

627538R11

TUBE W/NUT AND SLEEVE ASSY, power steering lower pressure 0.375" OD, 46.06" Length

1шт.

46

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, propulsion control cylinder, for use with propulsion control cylinder 387864R91

1шт.
