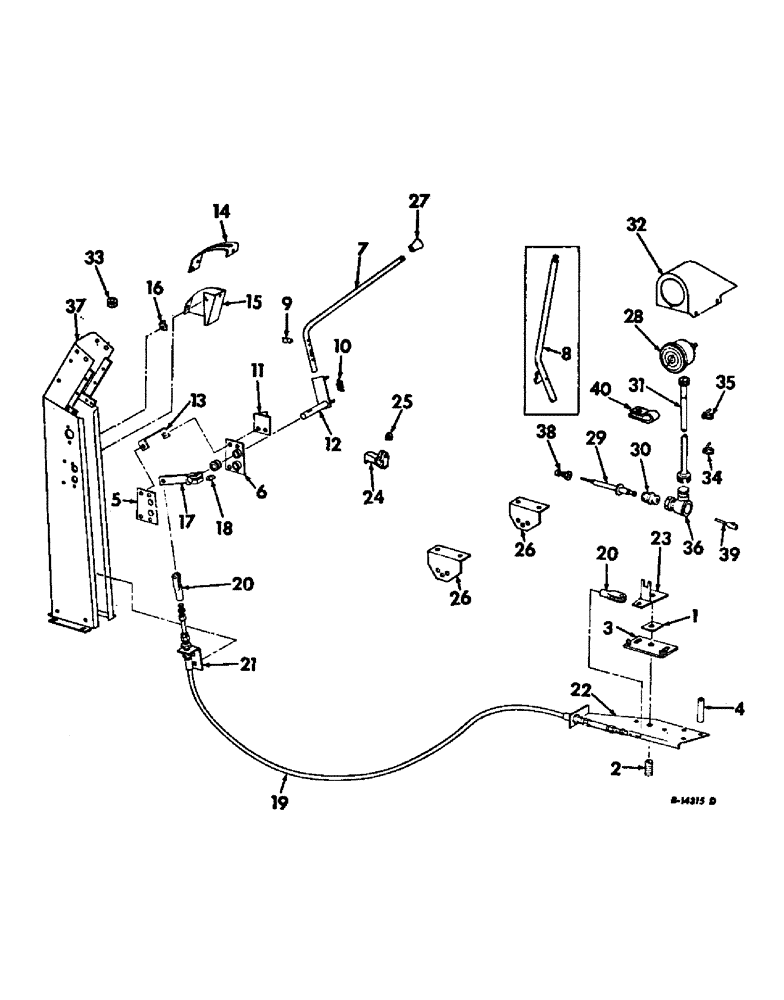

Запчасти Case IH 503 (142) - GROUND SPEED CONTROL AND SPEEDOMETER, FOR HYDROSTATIC GROUND DRIVE (33) - BRAKES & CONTROLS
№
Артикул
Название
Примечание
Количество
SPEEDOMETER, Includes ref nos 28 through 36, Regular for hydrostatic ground drive, Attachment for belt drive machines not two speed gear box
1шт.
1
150627C1
FRICTION WASHER
pump control arm
1шт.
2
28395H
SPRING
pump control arm
1шт.
3
150630C91
STOP
PLATE ASSY, pump control arm
1шт.
17447R1
BOLT
7/16 x 1-1/4 hex-hd mach
2шт.
NLS
NO LONGER SERVICED
7/16 hex.
2шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
W6652
WASHER
15/32 x 1 x 16 ga
2шт.
4
573174R1
SPACER,5/8" Tube x 3"
pump control arm support plate
3шт.
5
627407R91
PLATE ASSY, platform lift control left
1шт.
17403R1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 2
1/4 x 1/2 hex-hd mach
3шт.
17410R1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
1/4 x 3/4 hex-hd mach
1шт.
109084
NUT,1/4"-20, G5
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
6
627408R91
PLATE ASSY, platform lift control right
1шт.
17403R1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 2
1/4 x 1/2 hex-hd mach
2шт.
17410R1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
1/4 x 3/4 hex-hd mach
1шт.
17424R1
BOLT,Hex, 1/4" - 20 x 1"
1/4 x 1 hex-hd mach
1шт.
109084
NUT,1/4"-20, G5
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
7
155026C2
LEVER, ground speed control, Serial no. 3251 and above
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
350515R1
WASHER
21/32 x 1 x 16 ga
1шт.
8
151919C91
LEVER
ASSY, ground speed control, Serial no. 3250 and below
1шт.
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
1шт.
9
152215C1
STRIP, ground speed indicator
1шт.
436668
SCREW, no. 6 x 7/8 C-Z pan hd
1шт.
134530
NUT,Hex, #6 - 32
1шт.
131044
LOCK WASHER
Lock, #6
1шт.
10
151924C1
SPRING
ground speed control lever
1шт.
17444R1
BOLT, 1/4 x 1-1/4 hex-hd mach
1шт.
109084
NUT,1/4"-20, G5
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
557109R1
WASHER
17/64 x 1/2 x 16 ga
1шт.
11
151921C91
BRACKET ASSY, ground speed neutral stop
1шт.
12
151901C91
BRACKET
ASSY, ground speed lever, Serial no. 3250 and below
1шт.
12
155023C91
BRACKET ASSY, ground speed lever, Serial no. 3251 and above
1шт.
13
151925C1
CLEVIS, steering cover tie
1шт.
14
151907C1
INDICATOR, ground speed
1шт.
453049
SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"
1/4 x 3/4 C-Z pan-hd sltd mach
3шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
15
151908C1
COVER, ground speed control lever
1шт.
17043
BOLT, 1/4 x 1/2 hex-hd mach
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
16
935612R1
BRACKET, ground speed control lever cover
1шт.
17403R1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 2
1/4 x 1/2 hex-hd mach
1шт.
109084
NUT,1/4"-20, G5
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
17
151915C91
ARM ASSY, ground speed control lever
1шт.
18
28459KA
WASHER
ground speed control lever arm
1шт.
179839
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
19
151909C91
CABLE PULLING GRIP
CABLE ASSY, ground speed control
1шт.
114502
JAM NUT,Jam, 5/16"-18, G5
2шт.
20
104037
CLEVIS
ground speed control cable
2шт.
114784
PIN
5/16 x 31/32 rod end
2шт.
103374
COTTER PIN,3/32" x 1"
PIN, 3/32 x 1-1/4 cot.
2шт.
21
151914C1
ANGLE, cable anchor front
1шт.
14995R1
BOLT
3/8 x 3/4 sq-nk crg
2шт.
102635
NUT,3/8"-16, G5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
22
151911C91
BRACKET ASSY, pump control
1шт.
23
151917C91
ARM
ASSY, pump control actuating
1шт.
17626R1
BOLT, 7/16 x 3 hex-hd mach
1шт.
NLS
NO LONGER SERVICED
7/16 hex.
2шт.
24
155025C1
PAWL, ground speed control lever, Serial no. 3251 and above
1шт.
17471R1
BOLT,Hex, 3/8" - 16 x 1 1/2"
3/8 x 1-1/2 hex-hd mach
1шт.
102635
NUT,3/8"-16, G5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
25
28459KA
WASHER
ground speed control lever pawl
1шт.
26
627411R1
BRACKET HYDRAULIC VALVE
2шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
179848
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
27
163574C1
KNOB
ground speed control lever
1шт.
28
161258C91
SPEEDOMETER ASSY
1шт.
29
673050R91
SHAFT
TIP & WASHER ASSY, speedometer
1шт.
30
128584HX
SLEEVE
& SEAL ASSY, speedometer
1шт.
31
156042C91
SHAFT ASSY.
SHAFT ASSY, speedometer flexible
1шт.
32
156045C1
HOUSING, speedometer
1шт.
178574
WASHER
1/4 X 1/2 C-Z PAN-HD SELF TAPPING SCREW
4шт.
33
120408
GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut
1/2 rubber
1шт.
34
702093C1
CABLE TIE
CLAMP, speedometer flexible shaft
2шт.
SHAFT UPPER
2шт.
35
702093C1
CABLE TIE
CLAMP, speedometer flexible shaft
2шт.
SHAFT LOWER
2шт.
36
160701C1
DRIVE
JOINT ASSY, speedometer flexible shaft angle, W/27/28 gear transmission, Not track, Grain, windrow special w/18.4-26 main wheel tires or power adjusted wheels
1шт.
36
156233C91
JOINT ASSY, speedometer flexible shaft angle, W/15/40 gear transmission, Rice w/track
1шт.
36
161275C1
JOINT ASSY, speedometer flexible shaft angle, W/21/34 gear transmission, Rice w/rubber tires on main wheels
1шт.
36
156232C91
DRIVE
JOINT ASSY, speedometer flexible shaft angle, W/27/28 gear transmission, Not track, Grain, windrow special W/23.1-26 main wheel tires or wheel spacer on right wheel
1шт.
37
156046C91
COVER ASSY, steering
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2
6шт.
14995R1
BOLT
3/8 X 3/4 CRG BOLT W/NUT
2шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
3/8 X 1 CRG BOLT W/NUT
3шт.
15251R1
3/8 X 4-3/4 CRG BOLT W/NUT
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
Q1505
WASHER
13/32 X 1 X 16 GA WASHER
1шт.
38
374639R1
COUPLING
transmission main, For speedometer and hydrostatic ground drive
1шт.
39
163617C1
PIN
TIP, angle joint drive, Serial no 6013 and above
1шт.
40
589980R2
CLIP
speedometer flexible shaft angle
1шт.
Выбрано товаров: 102
