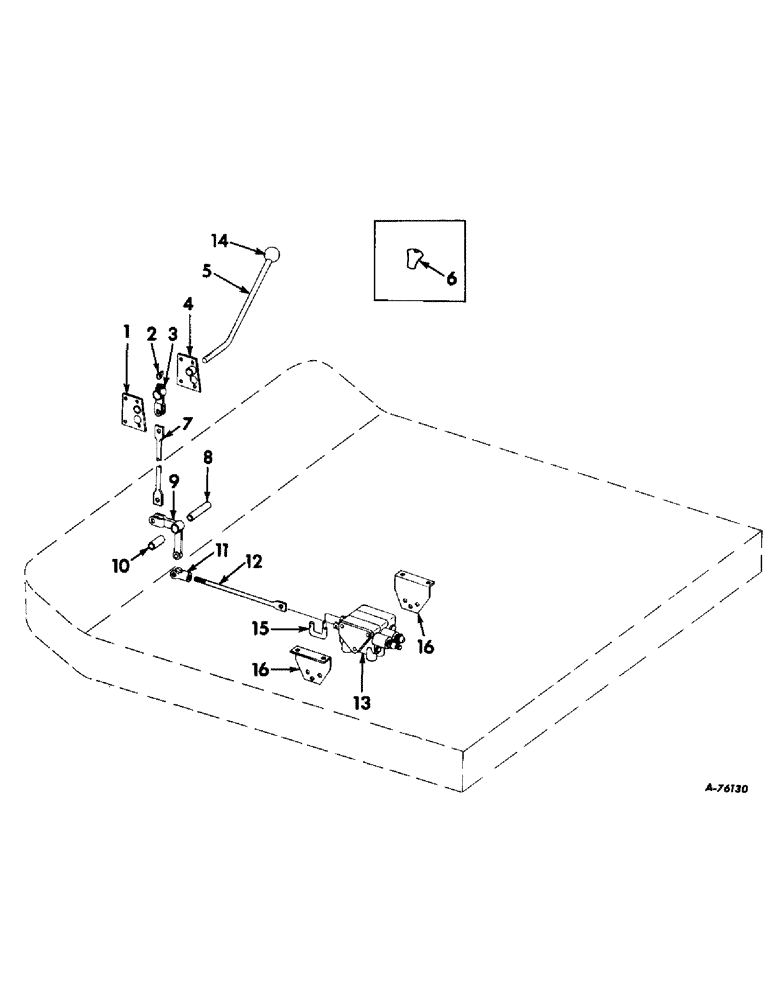

Запчасти Case IH 503 (138) - PLATFORM LIFT CONTROLS (33) - BRAKES & CONTROLS

1

627407R91

PLATE W/HOUSING, platform lift control LH

1шт.

1/4 X 1/2 MACH BOLT W/NUT

4шт.

1/4 LOCK WASHER

4шт.

2

28459KA

WASHER

upper arm

1шт.

3

627415R1

ARM, upper

1шт.

1/8 X 1 COT. PIN

1шт.

114785

3/8 X 1-3/32 ROD END PIN

1шт.

3/8 X 1 CAP SCREW

1шт.

3/8 LOCK WASHER

1шт.

4

627408R91

PLATE W/HOUSING, platform lift control RH

1шт.

1/4 X 1/2 MACH BOLT W/NUT

4шт.

1/4 LOCK WASHER

4шт.

5

627412R1

LEVER, platform lift, Serial no. 2430 and below

1шт.

5

939242R1

LEVER, platform lift, Serial no. 2431 and above, Not hydrostatic ground drive

1шт.

5

151910C2

LEVER, platform lift, For hydrostatic ground drive, Serial nos 3055 thru 3072 and 3251 and above

1шт.

6

629626R1

KNOB, platform lift lever, Serial no. 950 and below

1шт.

6

634769R1

KNOB, platform lift lever, Serial no., Serial Range: 951-2430

1шт.

7

627416R1

ROD, platform lift vertical, Serial no. 2430 and below

1шт.

7

627431R1

ROD, platform lift vertical, Serial no. 2431 and above

1шт.

8

627417R1

BUSHING, lower bellcrank

1шт.

350515R1

WASHER

21/32 X 1 X 16 GA WASHER

3шт.

9

627414R1

BELLCRANK, LOWER

1шт.

1/8 X 1 COT. PIN

1шт.

NLS

NO LONGER SERVICED

3/8 X 1-3/32 ROD END PIN

1шт.

10

564737R1

SPACER,7/8" Tube x 2 1/16"

lower bellcrank arm

1шт.

11

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2 in.

1шт.

103498

CLEVIS PIN,1/2" x 1.360"

1/2 X 1-27/64 ROD END PIN

1шт.

1/8 X 1 COT. PIN

1шт.

12

627413R1

ROD, rear, Serial no. 2430 and below

1шт.

12

939236R1

ROD, rear, Serial no. 2431 and above

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

1/2-20UNF JAM NUT

1шт.

60530H

CLEVIS PIN,3/8" x 1"

3/8 X 1 ROD END PIN

1шт.

3/32 X 3/4 COT. PIN

1шт.

13

156201C92

LOCK VALVE

VALVE ASSY, propulsion drive and platform lift, For components see list of parts under details of hydraulic propulsion drive and platform lift valve, Not hydrostatic ground drive

1шт.

14

163574C1

KNOB

platform lift lever, Serial no. 2431 and above

1шт.

15

633673R1

ROD, rear control, Not hydrostatic ground drive

1шт.

1/8 X 1 COT. PIN

2шт.

16

627411R1

BRACKET, hydraulic valve

2шт.

3/8 X 3/4 CAP SCREW

3шт.

3/8 LOCK WASHER

3шт.
