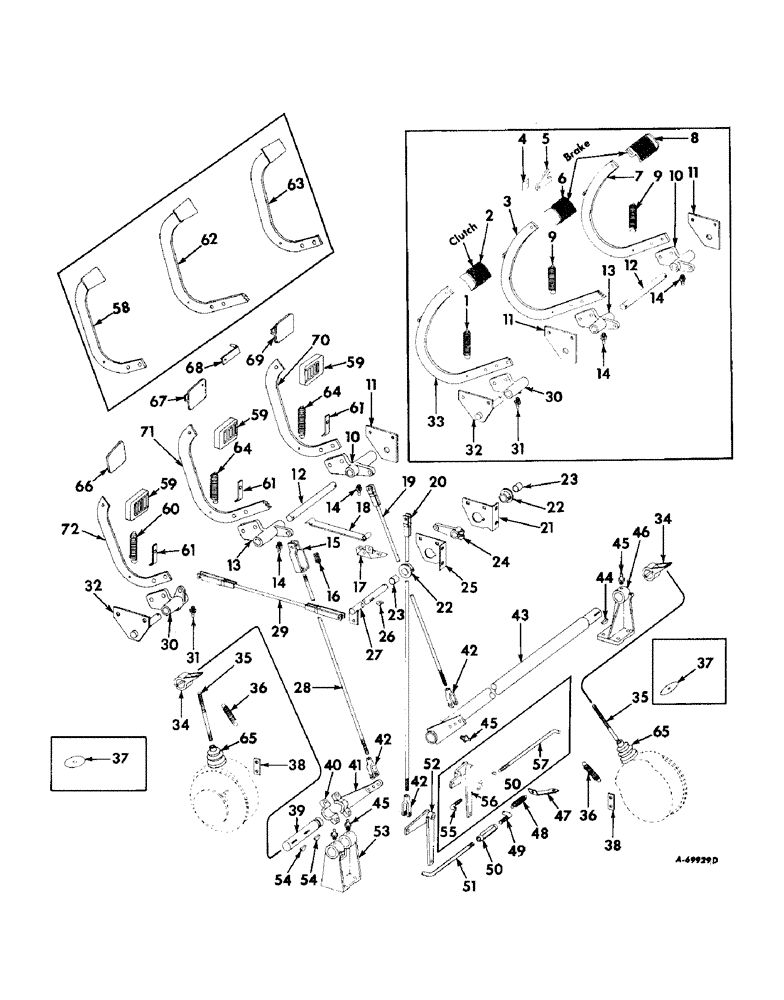

Запчасти Case IH 503 (132) - WHEEL BRAKE AND CLUTCH ARM, PEDAL AND, CONTROLS (33) - BRAKES & CONTROLS

1

228

SPRING

clutch arm return, Serial no. 2430 and below

1шт.

2

627510R1

PEDAL, transmission clutch, Serial no. 2430 and below

1шт.

3/8 X 1-1/2 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

3

633675R11

ARM W/KEY, LH wheel brake pedal, Serial nos 501 to 643 and, Serial Range: 951-2430

1шт.

3

653965R11

ARM W/KEY, LH wheel brake pedal, Serial no., Serial Range: 868-950

1шт.

3/8 X 1-1/2 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

4

51293D

SPRING

Serial no. 2430 and below

1шт.

5

43751DB

LATCH, PEDALS

LOCK, Serial no. 2439 and below

1шт.

6

627511R91

PEDAL W/LOCK AND SPRING ASSY, LH wheel brake, Includes ref nos 4 and 5, Serial no. 2430 and below

1шт.

3/8 X 1-1/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

7

633676R11

ARM W/KEY, RH wheel brake pedal, Serial no. 2430 and below

1шт.

3/8 X 1-1/2 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

8

627510R1

PEDAL, RH wheel brake, Serial no. 2430 and below

1шт.

3/8 X 1-1/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

9

2482A

SPRING

brake arm return, Serial no. 2430 and below

1шт.

3/16 X 1-1/4 COTTER PIN

2шт.

10

633672R1

PIVOT, RH wheel brake pedal arm, Serial no. 2430 and below

1шт.

10

938877R1

PIVOT, RH wheel brake pedal arm, Serial no. 2431 and above

1шт.

11

633468R1

PLATE, brake arm pivot shaft support, 2 used serial no. 2430 and below, 1 used serial no. 2431 and above

1шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

7/16 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

7/16 LOCK WASHER

2шт.

12

628366R1

SHAFT, brake arm pivot, Serial no. 2430 and below

1шт.

12

938880R1

SHAFT

brake arm pivot, Serial no. 2431 and above

1шт.

1/4 X 1-1/2 COTTER PIN

2шт.

21868V

WASHER

29/32 X 1-1/2 X 16 GA WASHER

8шт.

13

633671R1

PIVOT, LH wheel brake pedal arm, Serial no. 2430 and below

1шт.

13

938874R1

PIVOT, wheel left brake pedal lever arm, Serial no. 2431 and above

1шт.

14

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , S/N 2430 and below 1/8"-27 x .66 lg

2шт.

15

633469R1

YOKE, LH wheel brake spring

1шт.

3/32 X 3/4 COTTER PIN

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

3/8 X 1-3/32 ROD END PIN

1шт.

16

633479R1

SPRING, LH wheel brake pedal pawl

1шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

1/8 X 3/4 COTTER PIN

1шт.

1380S

PIN

5/16 X 1-3/4 DLD PIN

1шт.

3/8 LOCK WASHER

2шт.

18

631195R91

PAWL W/PIVOT, LH wheel brake pedal

1шт.

19

633703R91

ROD W/CONNECTOR, brake upper pull RH, Serial no. 2430 and below

1шт.

19

939238R91

ROD ASSY, brake upper pull RH, Serial no. 2431 and above

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

3/8 X 1-3/32 ROD-END PIN

1шт.

20

627452R91

ROD W/CONNECTOR, clutch, Serial no 4765 and below

1шт.

3/8 - 24UNF JAM NUT

1шт.

3/32 X 3/4 COTTER PIN

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

3/8 X 1-3/32 ROD END PIN

1шт.

20

155976C1

ROD, transmission clutch, Serial no 4766 and above

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

21

633284R1

BRACKET, clutch rear shaft RH

1шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

22

579464R11

BEARING W/BUSHING, transmission clutch shaft, Includes ref no. 23

2шт.

23

561905R1

BUSHING

2шт.

24

627458R1

ARM, clutch rear shaft

1шт.

17496R11

BOLT

3/8 X 1-3/4 MACH BOLT W/NUT

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

633283R1

BRACKET, clutch rear shaft LH

1шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

26

28459KA

WASHER

clutch rear shaft arm

1шт.

27

627460R91

SHAFT W/ARM, clutch rear

1шт.

3/16 X 1-1/4 COTTER PIN

1шт.

21868V

WASHER

29/32 X 1-1/2 X 16 GA WASHER

5шт.

114494

NUT,Jam, 3/8"-24, G5

3шт.

13/32 X 3/4 X 16 GA WASHER

1шт.

575807R1

WASHER

13/32 X 1 X 11 GA WASHER

1шт.

28

633467R1

ROD, LH wheel brake pull, Serial no. 2430 and below

1шт.

28

939237R1

ROD, LH wheel brake pull, Serial no. 2431 and above

1шт.

29

627514R91

ROD W/CONNECTOR, clutch upper, Serial no. 2430 and below

1шт.

29

939240R91

ROD ASSY, transmission clutch upper, Serial no. 2431 and above

1шт.

3/32 X 3/4 COTTER PIN

2шт.

103469

3/8 X 1-3/32 ROD-END PIN

2шт.

30

627513R1

PIVOT, clutch pedal arm, Serial no. 2430 and below

1шт.

30

938870R1

PIVOT, clutch pedal arm, Serial no. 2431 and above

1шт.

31

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

32

627463R91

SHAFT W/PLATE, clutch

1шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

21868V

WASHER

29/32 X 1-1/2 X 16 GA WASHER

3шт.

33

627457R11

ARM W/KEY, clutch, Serial no. 2430 and below

1шт.

3/8 X 1-1/4 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

34

633478R1

ARM, brake lower outer

2шт.

3/8 X 1-3/4 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

35

633474R1

STUD

ROD, brake lower pull

2шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

4шт.

354630R1

NUT

BRAKE LOWER PULL ROD NUT

2шт.

36

165

SPRING

brake outer arm

2шт.

37

570812R1

SHIELD, brake housing, Serial no. 950 and below

2шт.

38

634109R1

CLIP, brake arm spring return

2шт.

39

633475R1

SHIFT, brake lower LH arm

1шт.

40

CAP, brake inner LH arm, Order arm assy 633499R11, Ref no. 41

1шт.

41

633499R11

ARM W/BOLT, cap and washer, Wheel brake inner LH, Includes ref no. 40

1шт.

3/8 X 1-3/4 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

42

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

3/8 X 1-3/32 ROD END PIN

1шт.

43

633484R91

TUBE W/ARM AND SHAFT, RH wheel brake pivot

1шт.

44

28459KA

WASHER

trans. clutch rear shaft arm

1шт.

45

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

4шт.

46

633690R1

HOUSING, brake pivot RH

1шт.

3/8 X 1 CAP SCREW

4шт.

3/8 LOCK WASHER

4шт.

47

633701R1

BRACKET, transmission clutch return spring

1шт.

48

165

SPRING

transmission clutch return

1шт.

49

565582R1

ROD, transmission clutch lower inner control

1шт.

102635

NUT,3/8"-16, G5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

575807R1

WASHER

13/32 X 1 X 11 GA WASHER

1шт.

50

MA3973

TURNBUCKLE, transmission clutch horizontal control

1шт.

51

936462R1

ROD W/CONNECTOR, transmission outer horizontal

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

52

568815R91

BELLCRANK W/ARM, transmission clutch

1шт.

53

633689R1

HOUSING, brake pivot LH

1шт.

3/8 X 1 CAP SCREW

4шт.

3/8 LOCK WASHER

4шт.

54

113879

KEY

5/16 x 1-1/4 Woodruff

2шт.

55

NOT USED

1шт.

56

NOT USED

1шт.

57

NOT USED

1шт.

58

939636R91

LEVER ASSY, transmission clutch, Serial no., Serial Range: 2431-6287

1шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

3/8 X 1-1/4 MACH BOLT W/NUT

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

59

863426R1

PAD

transmission clutch pedal and brake pedal, Serial no. 2341 and above

1шт.

60

228

SPRING

clutch arm return, Serial no. 2431 and above

1шт.

61

938869R1

STRIP, transmission clutch lever and brake lever stop, Serial no. 2431 and above

3шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

62

938875R91

LEVER ASSY, wheel brake pedal LH, Serial no., Serial Range: 2431-6287

1шт.

3/8 X 1-1/2 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

63

938878R91

LEVER ASSY, wheel brake pedal RH, Serial no., Serial Range: 2431-6287

1шт.

3/8 X 1-1/2 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

64

228

SPRING

brake arm return, Serial no. 2431 and above

2шт.

65

381699R1

BOOT

brake housing

2шт.

66

163425C1

PEDAL

transmission clutch, Serial no. 6288 and above

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120388

3/8 C-Z med lock

1шт.

67

163426C1

PEDAL

wheel brake LH, Serial no. 6288 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

NLS

NO LONGER SERVICED

3/8 C-Z med lock

1шт.

68

614251R11

BAR

PLATE ASSY, brake locking, Serial no. 6288 and above

1шт.

19938R1

PIN,1/8" x 7/8", Coiled

1шт.

69

163427C1

PEDAL

wheel brake RH, Serial no. 6288 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1-1/4

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120388

3/8 C-Z med lock

1шт.

70

163429C1

LEVER, wheel brake pedal RH, Serial no. 6288 and above

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

71

163428C1

LEVER, wheel brake pedal LH, Serial no. 6288 and above

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

72

163429C1

LEVER, transmission clutch, Serial no. 6288 and above

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
