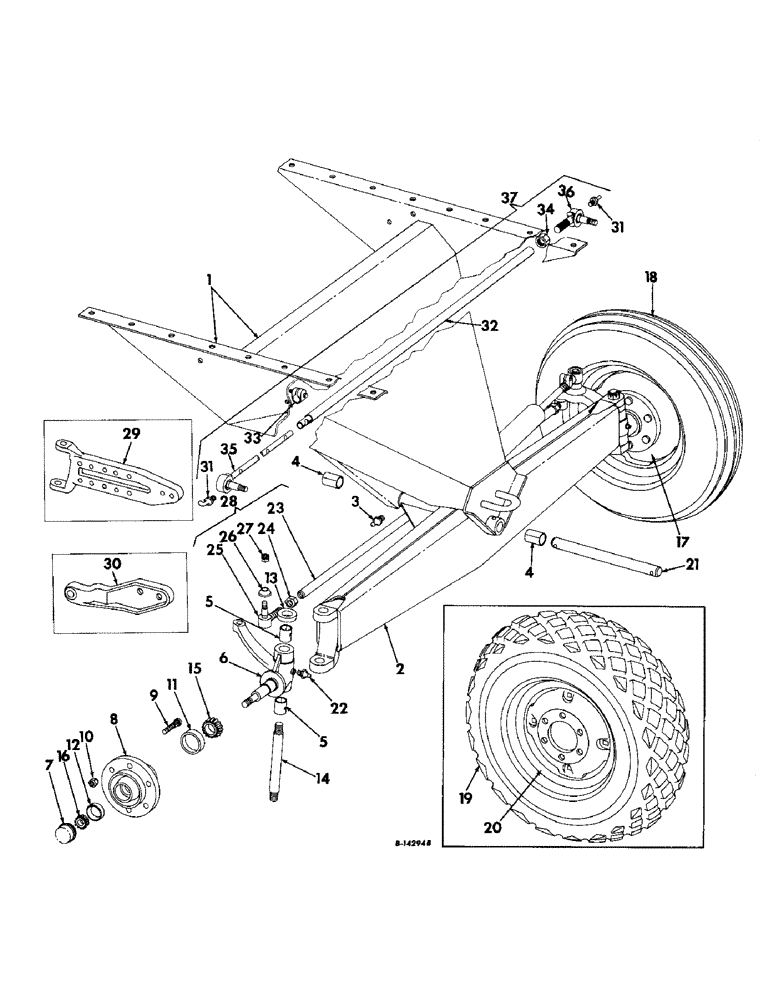

Запчасти Case IH 503 (127) - GUIDE WHEEL AXLE, SUPPORT, RIM DISC, TIRE, AND TUBE, GRAIN, SERIAL NO. 2431 AND ABOVE (27) - REAR AXLE SYSTEM

1

936536R92

SUPPORT ASSY, guide wheel axle

1шт.

5/8 X 1-1/2 MACH BOLT W/NUT

14шт.

5/8 X 1-3/4 MACH BOLT W/NUT

2шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

2шт.

5/8 LOCK WASHER

16шт.

2

151662C91

AXLE ASSY, guide wheel includes ref no. 4, Non-adjustable

1шт.

2

154710C91

AXLE ASSY, guide wheel, Includes ref no. 4, Adjustable, 52 to 68 in.

1шт.

2

154707C91

AXLE ASSY, guide wheel, Includes ref no. 4, Adjustable, 68 to 84 in.

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 lubrication straight

1шт.

4

575789R1

BUSHING

axle pivot tube

2шт.

5

574294R1

BUSHING

spindle

2шт.

6

654625R91

KNUCKLE

ASSY, guide wheel LH, Includes ref. no. 5

1шт.

6

654627R91

KNUCKLE ASSY, guide wheel RH, Includes ref. no. 5, Non-adjustable axle

1шт.

6

154715C91

KNUCKLE

ASSY, guide wheel RH, Includes ref no. 5, For adjustable axle

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

69442D

NUT

3/4 slt-hex jam

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

615168R1

WASHER

25/32 X 1-1/2 X 11 GA WASHER

2шт.

7

663908R1

CAP

wheel hub

2шт.

8

936538R91

HUB

ASSY, guide wheel, Includes ref. nos. 9, 10, 11, and 12

2шт.

9

456267R1

BOLT,1/2" - 20 x 1 7/8"

wheel hub

12шт.

10

453770R1

WHEEL NUT

wheel hub bolt

12шт.

11

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Taper roller wheel inner

2шт.

12

371883R1

BEARING CUP

Taper roller wheel outer

2шт.

13

73094R91

BEARING ASSY,1.135" ID x 2.094" OD x 0.625"

BEARING, roller spindle thrust

2шт.

14

587662R1

STUD

KING PIN, spindle

2шт.

427642

SLOTTED NUT,7/8"-9, G5

7/8-9 SLT-HEX. NUT

2шт.

1/8 X 1-1/4 COTTER PIN

4шт.

615196R1

WASHER

29/32 X 1-3/4 X 16 GA WASHER

4шт.

15

459913R91

BEARING CONE

BEARING, taper roller cone wheel inner

2шт.

16

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Taper roller wheel outer

2шт.

17

153877C91

RIM AND DISC ASSY, guide wheel, 4.50 x 16 DC

2шт.

17

370780R92

WHEEL

RIM AND DISC ASSY, guide wheel, 5.50 x 18, special

2шт.

18

TIRE, guide wheel, 6.00-16, 4 ply, Code I-1

2шт.

18

TIRE, guide wheel, 6.00-16, 6 ply, Code I-1, special

2шт.

18

TIRE, guide wheel, 7.50-18, 4 ply, Code F-1, special

2шт.

18

TUBE, guide wheel, 7.50-18

2шт.

19

TIRE, guide wheel, For use with power adjusted main wheels, 9.00- 16, 8 ply, Code R3, special

2шт.

19

TUBE, guide wheel, For use with power adjusted main wheels, 9.00- 16, special

2шт.

20

936537R91

RIM

AND DISC ASSY, guide wheel, 8.00-16 DC, For use with power adjusted wheels

2шт.

21

627935R1

AXLE PIN

PIN, pivot

1шт.

22

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

23

587758R1

TUBE, tie rod guide wheel, Non-adjustable 55.88" Length

1шт.

24

366431R1

JAM NUT

LOCK NUT, LH

1шт.

24

366432R1

JAM NUT

LOCK NUT, RH

1шт.

25

154823C91

SOCKET

END, tie rod LH

1шт.

25

154824C91

END

tie rod RH, Non-adjustable

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

578274R1

WASHER

21/32 X 1 X 11 GA WASHER

2шт.

26

189466R1

BOOT

SEAL, tie rod

2шт.

27

125258

SLOTTED NUT,9/16"-18, G5

2шт.

28

587750R91

TIE ROD ASSY, guide wheel axle, Non-adjustable

1шт.

29

154713C1

YOKE, guide wheel axle, For adjustable axle

2шт.

5/8 X 3-3/4 C-Z HEX-HD CAP

8шт.

5/8 X 4 C-Z CAP SCREW

4шт.

5/8 C-Z HEX. NUT

8шт.

5/8 C-Z LOCK WASHER

8шт.

21/32 X 1-1/2 X 11 GA WASHER

6шт.

30

154714C1

ANCHOR, steering cylinder, For adjustable axle

1шт.

31

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , For adjustable tie rod end 1/8"-27 x .66 lg

2шт.

32

155236C1

TUBE, tie rod guide wheel, For adjustable axle 52 to 68 in.

1шт.

32

155237C1

TUBE, tie rod guide wheel, For adjustable axle 68 to 84 in.

1шт.

33

359986R1

CLAMP

tie rod guide wheel tube, For adjustable axle

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 HEX NUT

1шт.

181435

BOLT,Hex, 1/2" - 20 x 2", Gr 5

1/2-20 X 2 HEX-HD CAP SCREW

1шт.

34

374062R1

JAM NUT

NUT, tie rod socket, For adjustable axle

1шт.

35

155232C91

END

TIE ROD, end assy, For adjustable axle

1шт.

125258

SLOTTED NUT,9/16"-18, G5

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

36

155234C91

SOCKET

ASSY, guide wheel tie rod, For adjustable axle

1шт.

125258

SLOTTED NUT,9/16"-18, G5

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

551655R1

WASHER

19/32 X 1 X 11 GA WASHER

1шт.

37

154705C91

TIE ROD ASSY, guide wheel, For adjustable axle 52 to 68 in.

1шт.

37

154704C91

TIE ROD ASSY, guide wheel, For adjustable axle 68 to 84 in.

1шт.
