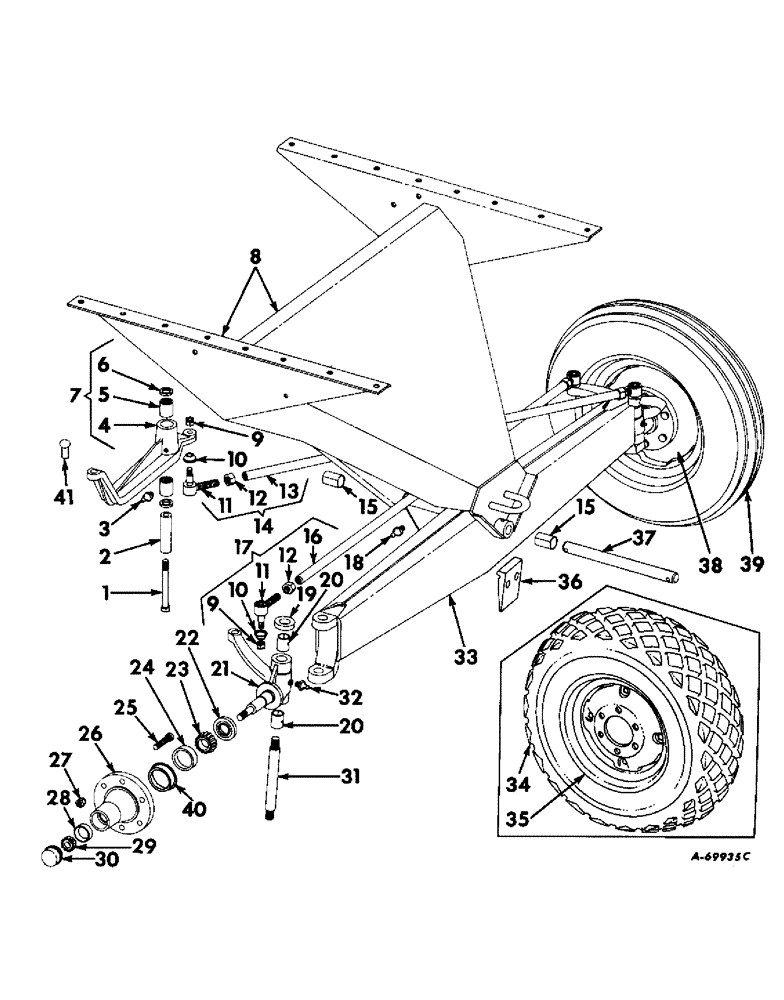

Запчасти Case IH 503 (125) - GUIDE WHEEL AXLE SUPPORT, RIM, DISC, TIRE (27) - REAR AXLE SYSTEM

1

634666R1

BOLT, pivot sleeve, 5/8 x 8-1/4 dld

1шт.

5/8 SLT NUT

1шт.

1/8 X 1-1/2 COT. PIN

1шт.

615135R1

WASHER

21/32 X 1-3/4 X 11 GA WASHER

1шт.

2

627927R1

SLEEVE, pivot

1шт.

F18476

WASHER

1-9/32 X 1-3/4 X 16 GA WASHER

3шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

4

ARM, rear drag link, Order assy 629717R11

1шт.

5

914455R91

NEEDLE BEARING,1.25" ID x 1.5" OD x 1.25"

needle

2шт.

6

574389R91

OIL SEAL

2шт.

7

629717R11

ARM W/BEARING AND OIL SEAL ASSY, rear drag link

1шт.

8

627919R91

SUPPORT W/BRACKET AND STIFFENER, guide wheel axle

1шт.

5/8 X 1-1/2 MACH BOLT W/NUT

14шт.

5/8 X 1-3/4 MACH BOLT W/NUT

2шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

2шт.

5/8 LOCK WASHER

16шт.

9

102648

SLOTTED NUT,9/16"-18, G5

4шт.

10

365855R1

SEAL

drag link and tie rod

4шт.

11

154823C91

SOCKET

END, drag link and tie rod LH

2шт.

11

154824C91

END

drag link and tie rod RH

2шт.

3/32 X 1-1/8 COT. PIN

4шт.

578274R1

WASHER

21/32 X 1 X 11 GA WASHER

4шт.

12

366431R1

JAM NUT

LOCK NUT, LH

2шт.

12

366432R1

JAM NUT

LOCK NUT, RH

2шт.

13

587753R1

TUBE, drag link, grain 38.75" Length

1шт.

13

587754R1

TUBE, drag link, rice 34.68" Length

1шт.

14

587747R91

DRAG LINK W/END, nut and seal assy, guide wheel axle, grain

1шт.

14

634330R91

DRAG LINK W/END, nut and seal assy, guide wheel axle, rice

1шт.

3/32 X 1-1/8 COT. PIN

2шт.

578274R1

WASHER

21/32 X 1 X 11 GA WASHER

2шт.

15

575789R1

BUSHING

axle pivot tube

2шт.

16

587758R1

TUBE, tie rod guide wheel, grain 55.88" Length

1шт.

16

587755R1

TUBE, tie rod guide wheel, rice 40.94" Length

1шт.

17

587750R91

TIE ROD W/END, nut and seal assy, guide wheel axle, grain

1шт.

17

587747R91

TIE ROD W/END, nut and seal assy, guide wheel axle, rice

1шт.

3/32 X 1-1/8 COT. PIN

2шт.

578274R1

WASHER

21-32 X 1 X 11 GA WASHER

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITIING, 1/4 straight lubrication

1шт.

19

73094R91

BEARING ASSY,1.135" ID x 2.094" OD x 0.625"

BEARING, spindle thrust

2шт.

20

574294R1

BUSHING

spindle

4шт.

21

936352R91

SPINDLE W/BUSHING ASSY, guide wheel LH, grain, Includes ref no. 20

1шт.

21

155799C91

SPINDLE

W/BUSHING ASSY, guide wheel RH, grain, Includes ref no. 20

1шт.

21

654664R91

SPINDLE W/BUSHING ASSY, guide wheel LH, Includes ref no. 20, Rice special Little Rock District, Rice special w/rubber tires

1шт.

21

155795C91

SPINDLE W/BUSHING ASSY, guide wheel RH, Includes ref no. 20, Rice special Little Rock District, Rice special w/rubber tires

1шт.

21

654665R91

SPINDLE W/BUSHING ASSY, guide wheel LH, Includes ref no. 20, Rice special w/track, Rice special w/23.1 x 34 R2 main wheel tires and 7.50 x 20 fl guide wheel tires

1шт.

21

155796C91

SPINDLE W/BUSHING ASSY, guide wheel RH, Includes ref no. 20, Rice special w/track, Rice special w/23.1 x 34 R2 main wheel tires and 7.50 x 20 F1 guide wheel tires

1шт.

427639

SLOTTED NUT,3/4"-16, G5

3/4-16UNF SLT NUT, grain

1шт.

70120D

SLOTTED NUT,7/8"-14

7/8-14UNF SLT JAM NUT, rice

1шт.

3/16 X 1-1/4 COT. PIN, grain

1шт.

1/8 X 1-1/4 COT. PIN, rice

1шт.

615168R1

WASHER

25/32 X 1-1/2 X 11 GA WASHER, grain

1шт.

615196R1

WASHER

29/32 X 1-3/4 X 11 GA WASHER, rice

1шт.

22

661876R91

OIL SEAL

wheel hub, grain

2шт.

22

654674R91

OIL SEAL

OIL SEAL, wheel hub, rice

2шт.

23

453279R91

ROLLER BEARING,1.375" ID x 2.717" OD x 1.0625"

CONE, wheel inner bearing, grain

2шт.

23

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel inner bearing, rice

2шт.

24

663558R1

BEARING CUP

CUP, wheel hub inner bearing, rice

2шт.

24

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

CUP, wheel hub inner bearing, grain

2шт.

25

456267R1

BOLT,1/2" - 20 x 1 7/8"

wheel hub, 1/2-20UNF x 1-7/8

12шт.

26

589814R11

HUB W/BOLT AND CUP ASSY, wheel, Includes ref nos 24, 25, 27 and 28, grain

1шт.

26

654661R91

HUB CAP

HUB W/BOLT AND CUP ASSY, wheel, Includes ref nos 24, 25, 27, 28 and 40, rice

1шт.

27

453770

NUT, 1/2-20UNF

12шт.

28

651817R1

BEARING CUP

CUP, wheel hub outer bearing, rice

2шт.

28

M32951

BEARING CUP,0.75" ID x 1.938" OD x 0.78125"

CUP, wheel hub outer bearing, grain

2шт.

29

518120R91

ROLLER BEARING,0.75" ID x 1.933" OD x 0.71"

CONE, wheel outer bearing, grain

2шт.

29

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel outer bearing, rice

2шт.

30

564773R1

CAP

wheel hub, grain

2шт.

30

663906R1

CAP

wheel hub, rice

2шт.

31

587662R1

STUD

KING PIN,.spindle

2шт.

1/8 X 1-1/2 COT. PIN

4шт.

427642

SLOTTED NUT,7/8"-9, G5

7/8 SLT-HEX NUT

4шт.

615196R1

WASHER

29/32 X 1-3/4 X 11 GA WASHER

4шт.

32

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

33

631489R91

AXLE W/BUSHING ASSY, guide wheel, Includes ref 15, grain, Rice special Little Rock district

1шт.

33

634325R91

AXLE W/BUSHING ASSY, guide wheel, Rice w/rubber tires

1шт.

33

631663R91

AXLE W/BUSHING ASSY, guide wheel, Rice w/track, Rice w/23.1 x 34 R2 main wheel tires and 7.50 x 20F1 guide wheel tires

1шт.

34

TIRE, guide wheel, For use with power adjusted main wheels, 9.00- 16, 4-ply, code R3, special

1шт.

34

TUBE, guide wheel, For use with power adjusted main wheels, 9.00- 16, special

1шт.

35

581973R91

RIM AND DISC ASSY, guide wheel, 8.00-16 DC, For use with power adjusted wheels

2шт.

36

633741R1

WEDGE, guide wheel axle, For use with 7.50-18 and 9.00-16 tires

2шт.

137332

SCREW,Sl Fil Hd, 1/2" - 13 x 1"

1/4 X 1 SLT-FL-HD MACH SCREW

4шт.

114620

1/2 CSK-EXT-TOOTH LOCK WASHER

4шт.

37

627935R1

AXLE PIN

PIN, pivot

1шт.

38

560943R91

RIM AND DISC ASSY, guide wheel, 4.50 x 16 DC, grain

2шт.

38

560944R91

RIM AND DISC ASSY, guide wheel, 5.50 x 18 DC, grain

2шт.

38

370780R92

WHEEL

RIM AND DISC ASSY, guide wheel, 5.50 x 18 DC, rice

2шт.

38

581973R91

RIM AND DISC ASSY, guide wheel, 8.00 x 16 DC, special

2шт.

38

654340R91

RIM AND DISC ASSY, guide wheel, 5.50 x 20 DC, rice

2шт.

39

TIRE, guide wheel, 6.50-16, 4-ply, Code I-1, standard grain

2шт.

39

TIRE, guide wheel, 7.50-18, 4-ply, Code I-1, grain

2шт.

39

TIRE, guide wheel, 7.50-18, 4-ply, Code F-1

2шт.

39

TIRE, guide wheel, 9.00-16, 8-ply, Code R-3, special

2шт.

39

TIRE, guide wheel, 9.00-16, 4-ply, Code R-3, special

2шт.

39

TIRE, guide wheel, 7.50-20, 4-ply, Code F-1, rice

2шт.

39

TIRE, guide wheel, 6.50-16, Standard for grain

2шт.

39

TUBE, guide wheel, 7.50-18

2шт.

39

TUBE, guide wheel, 9.00-16, special

2шт.

39

TUBE, guide wheel, 7.50-20, rice

2шт.

40

654675R1

RING

wheel hub oil seal wear, rice

2шт.

41

51228VA

BALL

rear drag link arm, For use with steering cylinder 629266R92

1шт.

5/8-18UNF NUT

1шт.

1/8 X 1 COT. PIN

1шт.
