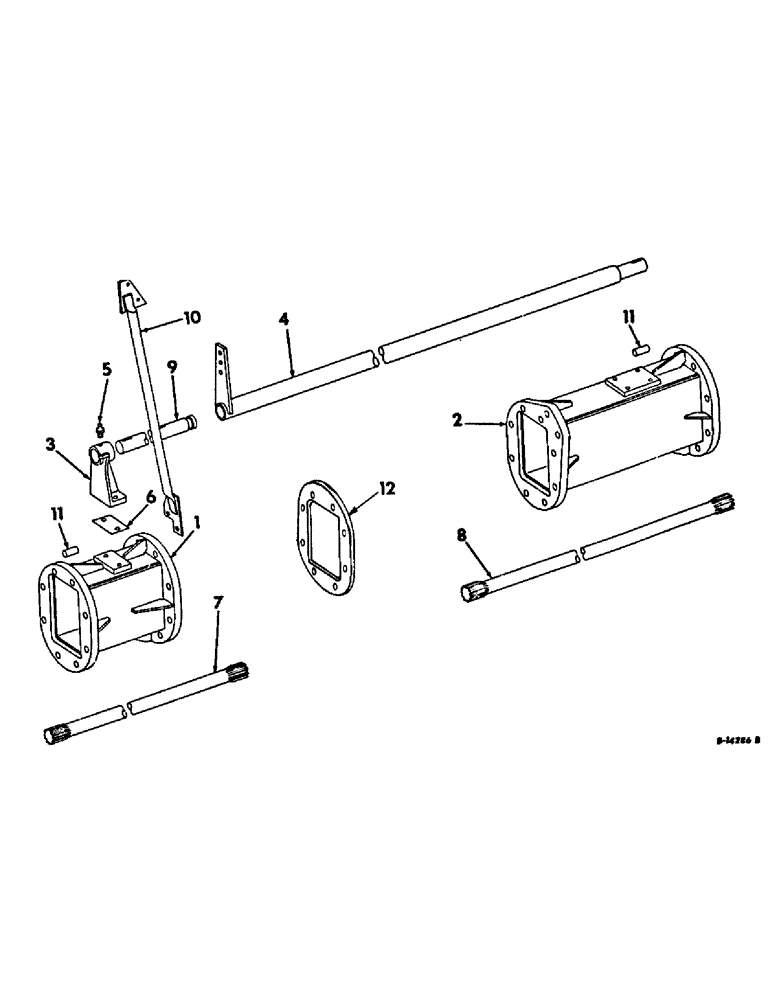

Запчасти Case IH 503 (052) - MAIN AXLE EXTENSION (25) - FRONT AXLE SYSTEM

1

150414C91

EXTENSION ASSY, main axle LH, For 18.4 x 26 main wheel tires

1шт.

1

165924C91

EXTENSION ASSY, main axle LH, For 23.1 x 26 main wheel tires

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 X 2-1/4 CAP SCREW

6шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8 X 2-1/2 CAP SCREW

2шт.

629358R1

NUT

5/8 NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z INTERNAL TOOTH LOCK WASHER

4шт.

2

150415C91

EXTENSION ASSY, main axle RH, For 18.4 x 26 main wheel tires

1шт.

2

165927C91

EXTENSION ASSY, main axle RH, For 23.1 x 26 main wheel tires

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 X 2-1/4 CAP SCREW

6шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8 X 2-1/4 CAP SCREW

2шт.

629358R1

NUT

5/8 NUT

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

138557

WASHER,Int Tooth, 5/8"

5/8 C-Z INTERNAL TOOTH LOCK WASHER

4шт.

3

150428C1

HOUSING, wheel brake LH pivot, For 18.4 x 26 main wheel tires

1шт.

3

165931C1

HOUSING, wheel brake left pivot, For 23.1 x 26 main wheel tires

1шт.

4

150424C91

PIPE ASSY, wheel brake RH torque, For 18.4 x 26 main wheel tires

1шт.

4

151246C91

PIPE ASSY, wheel brake right torque, For 23.1 x 26 main wheel tires

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

1шт.

6

150427C1

STRAP, wheel brake LH pivot housing

4шт.

7

150422C1

SHAFT, axle drive LH, For 18.4 x 26 main wheel tires

1шт.

7

574916R1

SHAFT, axle drive left, For 23.1 x 26 main wheel tires

1шт.

8

150423C1

SHAFT, axle drive RH, For 18.4 x 26 main wheel tires

1шт.

8

151245C1

SHAFT, axle drive right, For 23.1 x 26 main wheel tires

1шт.

9

150426C1

SHAFT, wheel brake LH, For 18.4 x 26 main wheel tires

1шт.

9

165930C1

SHAFT, wheel brake LH, For 23.1 x 26 main wheel tires

1шт.

10

150952C91

BRACE ASSY, main axle extension, For 18.4 x 26 main wheel tires

1шт.

10

165932C1

BRACE ASSY, main axle extension, For 23.1 x 26 main wheel tires

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 X 1-1/4 C-Z MACH BOLT W/NUT

2шт.

629358R1

NUT

5/8 NUT

1шт.

20105R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

5/8 X 2-3/4 C-Z CAP SCREW

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

54700R1

DOWEL

main axle extension

8шт.

12

171838C1

SPACER, main axle end flange

1шт.

20548R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8 x 1-004 C-Z hex-hd cap

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8 x 2 hex-hd cap

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.
