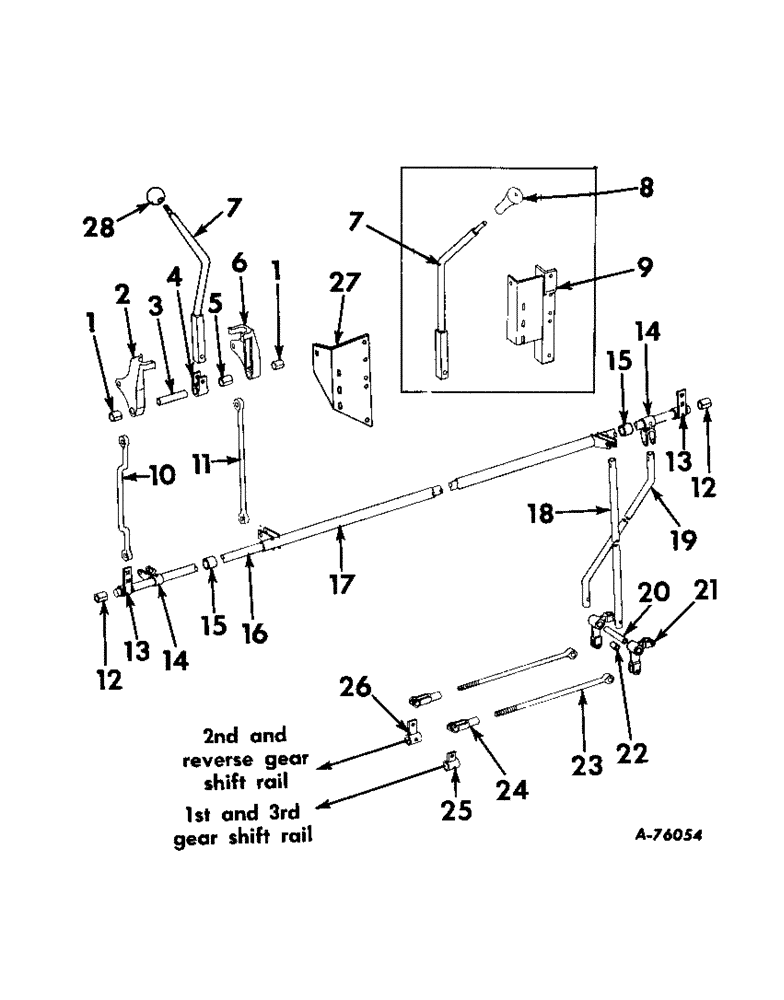

Запчасти Case IH 503 (135) - TRANSMISSION GEAR SHIFT CONTROL (21) - TRANSMISSION

1

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

2шт.

2

626608R11

ARM W/BUSHING ASSY, gear shift LH, Includes ref no. 1

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

3

564519R1

BUSHING, gear shift lever pivot

1шт.

551177R1

WASHER

21/32 X 1-1/4 X 16 GA WASHER

1шт.

4

564520R11

PIVOT

W/BUSHING ASSY, gear shift lever, Includes ref no. 5

1шт.

5

568920R1

BUSHING

1шт.

6

626609R11

ARM W/BUSHING ASSY, gear shift RH, Includes ref no. 1

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

7

627446R91

LEVER ASSY, shift, Not for use with operators cab, Serial no. 2430 and below

1шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

7

938848R91

LEVER ASSY, shift, Serial no. 2431 and above

1шт.

8

634769R1

KNOB, gear shift lever, Serial no. 2430 and below

1шт.

9

627442R91

SUPPORT, lever, Serial no. 2430 and below

1шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

3/8 X 4 MACH BOLT W/NUT

1шт.

7/16 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

7/16 LOCK WASHER

2шт.

10

628486R1

ROD, gear shifter arm first and third, Serial no. 2430 and below

1шт.

11

564521R1

ROD, gear shifter arm second and reverse, Serial no. 2430 and below

1шт.

11

564521R1

ROD, gear shifter arm, Serial no. 2431 and above

2шт.

12

556448R91

BUSHING

2шт.

13

631647R91

BRACKET

SUPPORT W/BUSHING, gear shift connector shaft brg, Includes ref no. 12

2шт.

5/16 LOCK WASHER

5шт.

14

564526R1

CRANK, gear shift connector shaft

2шт.

3/16 X 1-3/4 COT. PIN

1шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

4шт.

557264R1

WASHER

11/32 X 3/4 X 11 GA WASHER

2шт.

15

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

2шт.

16

582617R1

SHAFT, gear shift connector

1шт.

17

582618R91

TUBE W/BUSHINGS, gear shifter connector, Includes ref no. 15

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

18

627450R1

CONNECTOR, shift first and third

1шт.

19

627451R1

CONNECTOR, shift second and reverse

1шт.

20

583250R1

BUSHING, gear shift lower bellcrank

1шт.

21

564525R1

BELLCRANK, gear shift connector lower

2шт.

3/16 X 1-3/4 COT. PIN

4шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

22

554327R1

SPACER,7/8" Tube x 1"

gear shift connector lower bellcrank

1шт.

23

585946R1

ROD, gear shifter

2шт.

425-117

NUT,7/16"-20, G5

7/16-20UNF NUT

2шт.

115550

LOCK WASHER,Int Tooth, 7/16"

7/16 INT-TOOTH LOCK WASHER

2шт.

24

117825

CLEVIS, gear shift rod

2шт.

3/32 X 1 COT. PIN

4шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

7/16 X 1-15/64 ROD END PIN

4шт.

25

564512R91

ARM W/HUB, first and third gear shift rail, Serial no. 950 and below

1шт.

25

627445R91

ARM W/HUB, first and third gear shift rail, Serial no. 951 and above

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

26

583247R91

ARM W/HUB, second and reverse gear shift rail

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

27

938829R91

SUPPORT ASSY, shift lever, Serial no. 2431 and above

1шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

3/8 X 4 MACH BOLT W/NUT

1шт.

7/16 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

1шт.

7/16 LOCK WASHER

2шт.

28

163574C1

KNOB

gear shift lever, Serial no. 2431 and above

1шт.
