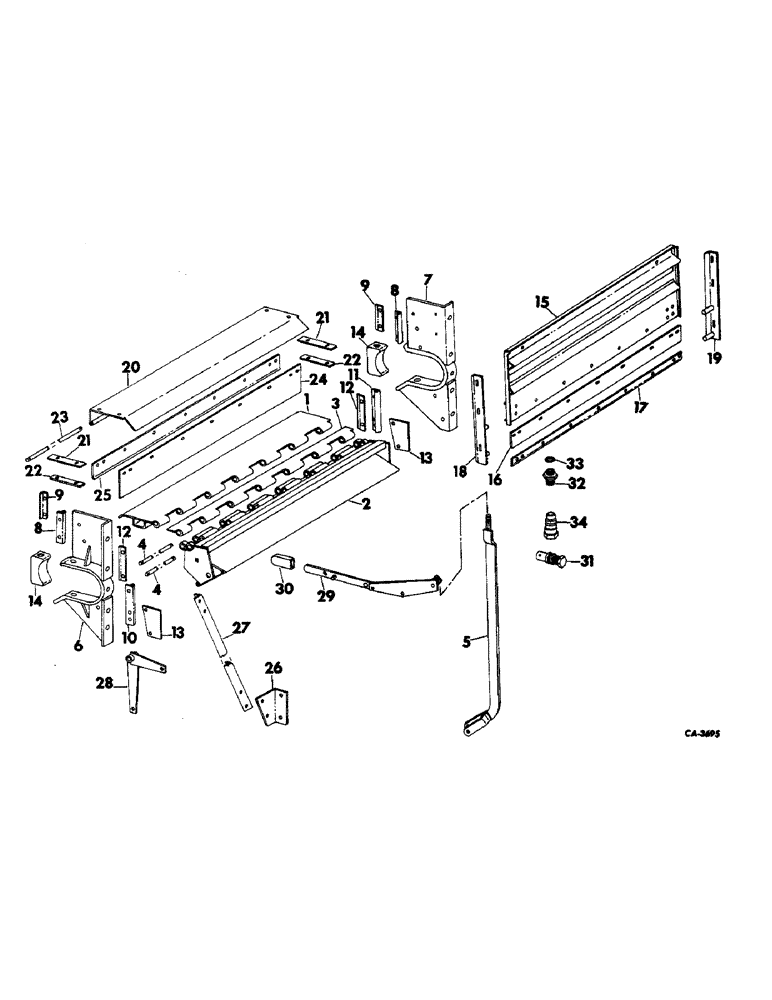

Запчасти Case IH 503 (A-24) - FEEDERS AND RELATED PARTS, SEPARATOR FEEDER ADAPTER PARTS, 403 & 503 COMBINES (60) - PRODUCT FEEDING

1

190042C1

EXTENSION ASSY, concave front, 403 combine

1шт.

1

190044C1

EXTENSION ASSY, concave front, 503 combine

1шт.

2

190046C1

HINGE ASSY, feeder bottom door, 403 combine

1шт.

2

190054C1

HINGE ASSY, feeder bottom door, 503 combine

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

190059C1

EXTENSION, feeder bottom door, 403 combine

1шт.

3

190060C1

EXTENSION, feeder bottom door, 503 combine

1шт.

4

175930C1

ROD

feeder door hinge, 403 combine

2шт.

4

175931C1

ROD

feeder door hinge, 503 combine

2шт.

5

190061C1

BAR ASSY, concave control

1шт.

6

177399C1

BRACKET

ASSY, feeder pivot LH

1шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

1шт.

27125R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 pln type 8R

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

7

177400C1

BRACKET ASSY, feeder pivot RH

1шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

1шт.

27125R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 pln type 8R

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

8

177407C1

SEAL

pivot side upper

2шт.

9

177408C1

RETAINER, pivot seal upper

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120657

SCREW

1/4 x 1 znp f/hds mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

177409C1

SEAL

feeder pivot lower LH

1шт.

11

177410C1

SEAL

feeder pivot lower RH

1шт.

12

177411C1

RETAINER

feeder pivot lower seal

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120657

SCREW

1/4 x 1 znp f/hds mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

177412C1

STRIP, feeder pivot bracket and sep side seal

2шт.

14

177413C1

RETAINER

feeder pivot

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

273312

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

5/8 x 5-1/2 type 5

1шт.

15

180557C91

DOOR ASSY, cylinder front, 403 combine

1шт.

15

190064C1

DOOR ASSY, cylinder front, 503 combine

1шт.

16

177418C1

DOOR SEAL

cylinder front door, 403 combine

1шт.

16

190076C1

SEAL, cylinder front door, 503 combine

1шт.

17

177417C1

BACKING, front door seal, 403 combine

1шт.

17

190075C1

BACKING, front door seal, 503 combine

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

177419C1

RETAINER

ASSY, cylinder front door LH

1шт.

19

177420C1

RETAINER

ASSY, cylinder front door RH

1шт.

20

177430C1

DOOR

feeder top, 403 combine

1шт.

20

190077C1

DOOR, feeder top, 503 combine

1шт.

21

177428C1

DOOR SEAL

feeder top door side

2шт.

22

177429C1

STRIP

feeder top door side seal

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 znp p/hds mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

489982R1

ROD, feeder top door hinge, 403 combine

1шт.

23

190078C1

ROD, feeder top door hinge, 503 combine

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

24

177432C2

DOOR SEAL

feeder top door, 403 combine

1шт.

24

190079C1

SEAL, feeder top door, 503 combine

1шт.

25

177433C1

BACKING, feeder top door seal, 403 combine

1шт.

25

190080C1

BACKING, feeder top door seal, 503 combine

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

177438C1

ANGLE, operator deck rear

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

27

177439C1

SUPPORT, operator deck rear

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

28

177481C1

LEVER ASSY, transmission clutch

1шт.

29

190136C1

LEVER

ASSY, concave adjusting

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

30

938885R1

GRIP

concave adjusting lever

1шт.

31

179666C1

VALVE

ASSY, relief, 503 combine

1шт.

32

179213C1

ADAPTER

CONNECTOR, reel lift union, for use w/hyd reel lift

1шт.

33

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

reel lift connector, for use w/hyd reel lift

1шт.

34

166123C91

COUPLING

reel lift male, for use w/hyd reel lift

1шт.
