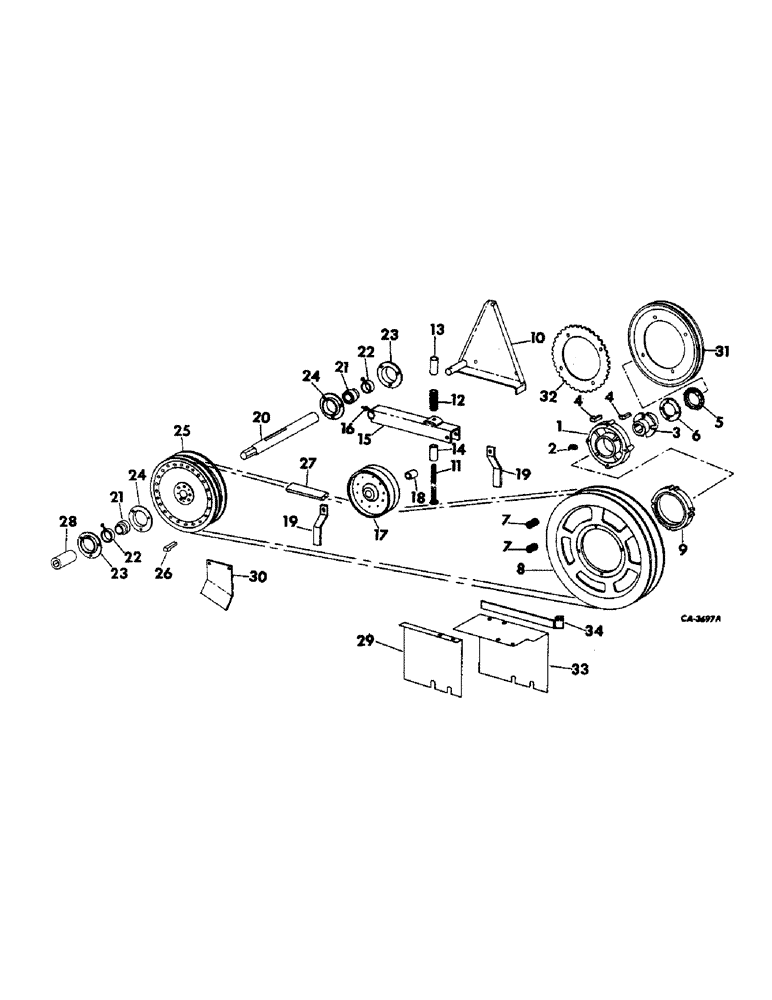

Запчасти Case IH 503 (A-22) - FEEDERS AND RELATED PARTS, FEEDER JACKSHAFT DRIVE, 403 AND 503 COMBINES (60) - PRODUCT FEEDING

1

179031C1

HUB

feeder driven pulley

1шт.

2

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

3

179029C1

HUB CAP

HUB, feed conveyor slip clutch

1шт.

4

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 gib

2шт.

5

179030C1

RATCHET

feeder slip clutch outer

1шт.

6

179032C1

RATCHET

feeder slip clutch inner

1шт.

27350R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

BOLT, 3/8 x 4-1/2 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

Q3500

WASHER

.656 x 1.125 x .067 pln

1шт.

7

584007R1

SPRING

feed conveyor slip clutch

6шт.

8

176574C1

PULLEY

feeder jackshaft drive, 16-3/4 in. OD, 425.5 mm OD, double belt

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20903R1

BOLT,Hex, 3/8" - 16 x 5 1/4", Gr 5

3/8 x 5-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

176555C1

SPACER

feeder driven pulley hub

1шт.

10

176545C1

SUPPORT

ASSY, tightener pivot

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

11

176548C1

BOLT,Hex, 1/2" - 13

jackshaft drive tightener adj

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

21883T1

WASHER, .531 x 1.75 x .09 znd

1шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga znd

1шт.

12

PO3A

SPRING

adj bolt

1шт.

13

176580C1

SPACER

adj bolt spring

1шт.

14

176544C2

SPACER

SPCER, adj bolt spring inner

1шт.

15

176549C1

ARM

ASSY, jksft drive tightener pivot

1шт.

16

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self tap. lub

1шт.

17

176579C1

IDLER

ASSY, feeder jackshaft drive tightener

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex.

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8 x 7-1/2 hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

.66 x 1.3 x .10 znd

1шт.

18

657114R1

SPACER,3/4" X-Strng Pipe x 2 3/8"

3/4 x 2.375 extra strong pipe

1шт.

19

197110C1

GUIDE

belt

2шт.

20

176560C1

SHAFT

JACKSHAFT, feeder, 403 combine

1шт.

20

176571C1

JACKSHAFT

feeder, 503 combine

1шт.

21

611583R91

BALL BEARING

BEARING, feeder jackshaft

2шт.

22

517645R11

COLLAR

W/SET SCREW, feeder jackshaft

2шт.

23

617863R1

FLANGED BEARING

feeder jackshaft

2шт.

24

617863R1

FLANGED BEARING

feeder jackshaft

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25

176572C2

PULLEY

feeder jackshaft driven, 13-1/2 in. OD, 342.9 mm OD, double belt

1шт.

26

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib

1шт.

27

176566C1

BELT

V-BELT, Feeder jackshaft drive, Double belt

1шт.

28

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

COUPLING, feeder jackshaft drive

1шт.

517843R1

COTTER PIN

PIN, QA cotter

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN, 1/2 x 2-3/8 znd std-hd

1шт.

29

187255C1

SHIELD, jackshaft driven pulley

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

30

179433C1

PLATE, jackshaft driven pulley guard

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

31

175968C1

PULLEY, feeder driven, 15 in. OD, 381.0 mm OD, 403 w/824 corn head, 403 & 503 w/810 grain header

1шт.

32

175971C1

SPROCKET ASSY.

SPROCKET, feeder driven, 36T, 403 w/833 or 834 corn head

1шт.

32

175972C1

SPROCKET ASSY.

SPROCKET, feeder driven, 32T, 403 w/843 or 844 corn head, 503 w/843.844 or 863 corn head

1шт.

33

187256C1

SHIELD, feeder jackshaft driven pulley

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

34

187257C1

ANGLE, driven pulley shield support, 503 combine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.
