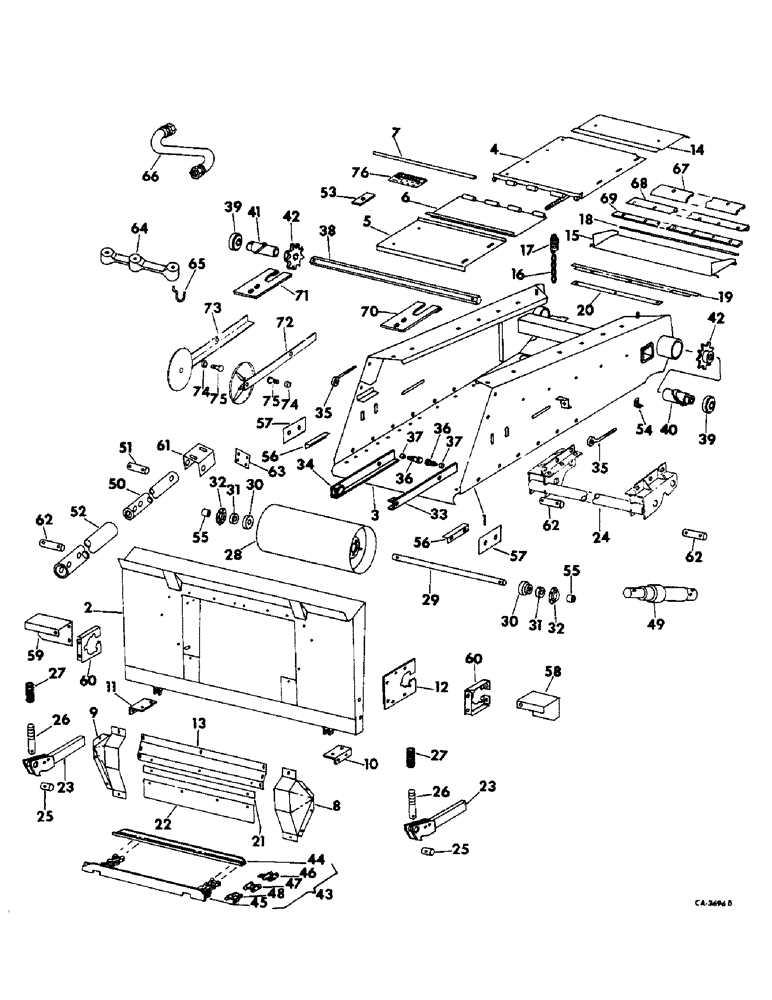

Запчасти Case IH 503 (A-18) - FEEDERS AND RELATED PARTS, FEEDER, CONVEYOR, ADAPTER AND RELATED PARTS, 403 & 503 COMBINES (60) - PRODUCT FEEDING

1

197937C2

HOUSING

ASSY, feeder, 403 combine

1шт.

1

197938C2

HOUSING ASSY, feeder, 503 combine

1шт.

619008R1

BOLT

1/2 x 1 pln crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znd slt-truss-hd

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2 type 5

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

608081R1

WASHER

.656 x 1.750 x .090

1шт.

2

175863C1

ADAPTER ASSY, feeder, 403 combine

1шт.

2

175864C4

ADAPTER

ASSY, feeder, 503 combine

1шт.

3

180407C1

SHEET

feeder bottom, 403 combine

1шт.

3

187295C1

SHEET

ASSY, feeder bottom, 503 combine

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

175890C1

SHEET ASSY, feeder top, 403 combine

1шт.

4

175891C1

SHEET ASSY, feeder top, 503 combine

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

5

175900C2

TOP, feeder lower, 403 combine

1шт.

5

175901C2

TOP, feeder lower, 503 combine

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

6

180555C91

DOOR ASSY.

DOOR, feeder top, 403 combine

1шт.

6

180556C91

DOOR

feeder top, 503 combine

1шт.

7

175906C1

ROD

feeder top door hinge, 403 combine

1шт.

7

175907C1

ROD

feeder top door hinge, 503 combine

1шт.

8

175908C1

DEFLECTOR

ASSY, feeder front LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

175909C1

DEFLECTOR

ASSY, feeder front RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

10

175913C1

ANGLE

feeder adapter LH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

NLS

NO LONGER SERVICED

.53 x 1.06 x .10 znd

1шт.

11

175914C1

ANGLE

feeder adapter RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

12

175915C1

SUPPORT

feeder jackshaft brg, 1 used 403, 2 used 503

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd sq-nk crg

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 znd flange lock

1шт.

13

175917C1

COVER

feeder adapter, 403 combine

1шт.

13

175918C1

COVER

feeder adapter, 503 combine

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

14

175920C1

COVER

feeder top upper, 403 combine

1шт.

14

175921C1

COVER, feeder top upper, 503 combine

1шт.

15

175923C1

DOOR

ASSY, feeder, 403 combine

1шт.

15

175924C1

DOOR

ASSY, feeder, 503 combine

1шт.

16

167570C1

CHAIN,203.2mm L

door latch

2шт.

17

622016R1

SPRING

door latch

2шт.

18

175930C1

ROD

feeder door hinge, 403 combine

1шт.

18

175931C1

ROD

feeder door hinge, 503 combine

1шт.

19

175933C1

DOOR SEAL

feeder door, 403 combine, metal type seal

1шт.

19

175934C1

SEAL

feeder door, 503 combine, metal type seal

1шт.

20

175949C1

STRIP, feeder lower door seal, 403 combine, metal type seal

1шт.

20

175950C1

STRIP

feeder lower door seal, 503 combine, metal type seal

1шт.

46-38

RIVET,Csk, 3/16" x 1/2"

3/16 x 1/2 90 deg csk-hd

1шт.

21

175952C1

BAR

STRIP, front cover back, 403 combine

1шт.

21

175953C1

STRAP

STRIP, front cover back, 503 combine

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 hex-hd

1шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 prevailing torque lock

1шт.

22

175955C1

COVER

front lower, 403 combine

1шт.

22

175956C1

COVER

front lower, 503 combine

1шт.

23

179024C1

HINGE

HANDLE ASSY, feeder latch

2шт.

24

179699C1

BRACKET

ASSY, feeder lift, 403 combine

1шт.

24

179700C1

BRACKET ASSY, feeder lift, 503 combine

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 crg type 5

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 crg type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

25

177141C1

PIN,15.88mm OD x 41mm L

latch pivot

2шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

21471R1

WASHER

.656 x 1.000 x .105

1шт.

26

177138C1

ROD

feeder latch

2шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 p/t lock type 5

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

27

367833R1

SPRING

latch rod

2шт.

28

175972C1

SPROCKET ASSY.

DRUM ASSY, feed conveyor, 403 combine

1шт.

28

175976C1

DRUM HUB

DRUM ASSY, feed conveyor, 503 combine

1шт.

29

175982C2

SHAFT

feed conveyor drum, 403 combine

1шт.

29

175983C2

SHAFT

feed conveyor drum, 503 combine

1шт.

22192R1

WASHER

1-1/32 x 1-3/8 x 16 ga

1шт.

30

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING, feed conveyor drum

2шт.

31

455102R21

COLLAR

ASSY, feed conv. drum brg lkg

2шт.

32

165360C1

FLANGED BEARING,95.2 mm OD x 8.74 mm

FLANGE, feed conveyor drum brg

2шт.

271501

SOCKET

NUT, 7/16 type 5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

33

178756C2

ARM

ASSY, conveyor drum support LH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 znd hex-hd cap

1шт.

34

178757C2

ARM

ASSY, conveyor drum support RH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 znp hex-hd cap

1шт.

35

176508C1

BOLT,5/8" - 11 x 228.60mm

feed conveyor tightener

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

36

178005C1

BOLT,Hex, 5/8" - 11 x 3", Gr 5

conveyor drum support arm

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

NLS

NO LONGER SERVICED

.656 x 1.312 x .074

1шт.

37

558506R1

SPACER

support arm bolt

2шт.

38

176511C1

SHAFT

feed conveyor, 403 combine

1шт.

38

176510C1

SHAFT

feed conveyor, 503 combine

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

609376R1

WASHER

1.78 x 2.5 x .105 znd

1шт.

39

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING, feed conveyor shaft

2шт.

40

178780C1

SPACER

ASSY, conveyor sprocket LH

1шт.

41

178781C1

SPACER

ASSY, conveyor sprocket RH

1шт.

42

197556C1

SPROCKET ASSY.

SPROCKET, feed conveyor, 9T, 2 used 403, 3 used 503

1шт.

197643C1

SET SCREW

special set

1шт.

43

175991C92

CHAIN (AG)

CHAIN ASSY, feed conveyor, 403 combine

1шт.

43

175992C92

CHAIN (AG)

CHAIN ASSY, feed conveyor, 503 combine, includes ref nos. 44 thru 48

1шт.

44

175996C1

SLAT

feed conveyor, 403 combine

22шт.

44

175997C1

SLAT

feed conveyor, 503 combine

43шт.

104264

RIVET,FH, 5/16" x 5/8"

5/16 x 5/8 f-hd solid

1шт.

45

177302C1

SLAT

ASSY, conveyor stripper, 403 combine

1шт.

45

177304C1

SLAT

ASSY, conveyor stripper LH, 503 combine

1шт.

45

177305C1

SLAT

ASSY, conveyor stripper RH, 503 combine

1шт.

104264

RIVET,FH, 5/16" x 5/8"

5/16 x 5/8 pln f/hd sol

1шт.

46

176505C1

LINK

ASSY, attaching, use w/175991 and 992C91

1шт.

46

189710C1

LINK,A550, 3 Links x 41.4mm = 124.2mm

ASSY, attaching, use w/175991 and 992C92, conists of side bar w/riveted pins and 1 loose side bar

1шт.

47

179903C2

LINK

ASSY, connecting, consists of side bar w/riveted pins and 1 loose side bar

1шт.

48

179904C2

CLEVIS PIN

LINK ASSY, offset, 403 combine, consists of side bars w/roller and 1 loose pin

1шт.

49

59736C91

CYLINDER ASSY, header lift

2шт.

50

197501C1

TUBE, safety stand rear

1шт.

51

164533C1

PIN

safety stand anchor front

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

517843R1

COTTER PIN

PIN, 3/16 quik-attach cotter

1шт.

52

187154C91

PIPE, safety stand front

1шт.

53

154041C1

STRIP

feeder top door hold down

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

54

154971C1

ANGLE

feeder door spring

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 znp slt-truss-hd

1шт.

55

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

Use w/Ref #'s 33 and 34 1" Pipe x 3/4"

2шт.

56

179273C1

STOP, feed conveyor drum lower, use w/ref. nos. 33 and 34

2шт.

57

179274C1

COVER, feeder side

2шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

58

179253C1

SHIELD

feeder jackshaft LH, 403 combine

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

59

179254C1

SHIELD

feeder jackshaft RH, 503 combine

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

60

178254C1

SUPPORT

feeder jackshaft shield

1шт.

61

197502C1

CHANNEL, safety stand

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06

1шт.

62

573762R1

PIN,25.4mm OD x 130.97mm L

safety stand anchor rear and hyd cylinder lift front

3шт.

137263

STRIP

3/16" x 2"

1шт.

63

179748C1

PLATE, stand support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

64

179206C1

STRAP

hyd reel lift hose, for use w/hyd reel lift

1шт.

65

179207C1

HOOK

hyd reel lift hose strap, for use w/hyd reel lift

1шт.

66

347186R91

HOSE

reel drive pressure & return, for use w/hyd reel drive and hyd windrow pickup drive

2шт.

67

197427C1

GUIDE

STRIP, seal spacer, 403 combine, rubber type seal

1шт.

67

197524C1

STRAP

STRIP, seal spacer, 503 combine, rubber type seal

1шт.

68

197428C1

SEAL

feeder door, 403 combine, rubber type seal

1шт.

68

197525C1

SEAL

feeder door, 503 combine, rubber type seal

1шт.

187166C1

RIVET

3/16 x .700 f-hd

1шт.

69

197429C1

SEALING STRIP

seal backing, 403 combine, rubber type seal

1шт.

69

197526C1

SEALING STRIP

seal backing, 503 combine, rubber type seal

1шт.

70

197964C1

STRIPPER

ASSY, LH

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 hex-hd type 8

1шт.

359783C1

LOCK NUT

3/8 prevailing torque type 8

1шт.

151670C1

SHIM

shim .036

1шт.

25709R1

WASHER

.41 x .81 x .09 hard

1шт.

71

197965C1

STRIPPER

ASSY, RH

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 hex-hd type 8

1шт.

359783C1

LOCK NUT

3/8 CAD p/t lock type 8

1шт.

151670C1

SHIM

shim .036

1шт.

25709R1

WASHER

.41 x .81 x .09 hard

1шт.

72

180527C3

ARM

ASSY, conveyor drum support LH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 hex-hd cap

1шт.

73

180528C3

ARM

ASSY, conveyor drum support RH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 hex-hd cap

1шт.

74

197211C1

SPACER

feeder drum lower, use w/180527 and 528C3

2шт.

75

189709C1

BOLT,Hex, 1/2" - 13 x 3"

feeder drum stop, use w/180527 and 528C3

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

76

179749C2

PRODUCT GRAPHIC

danger instruction

1шт.
