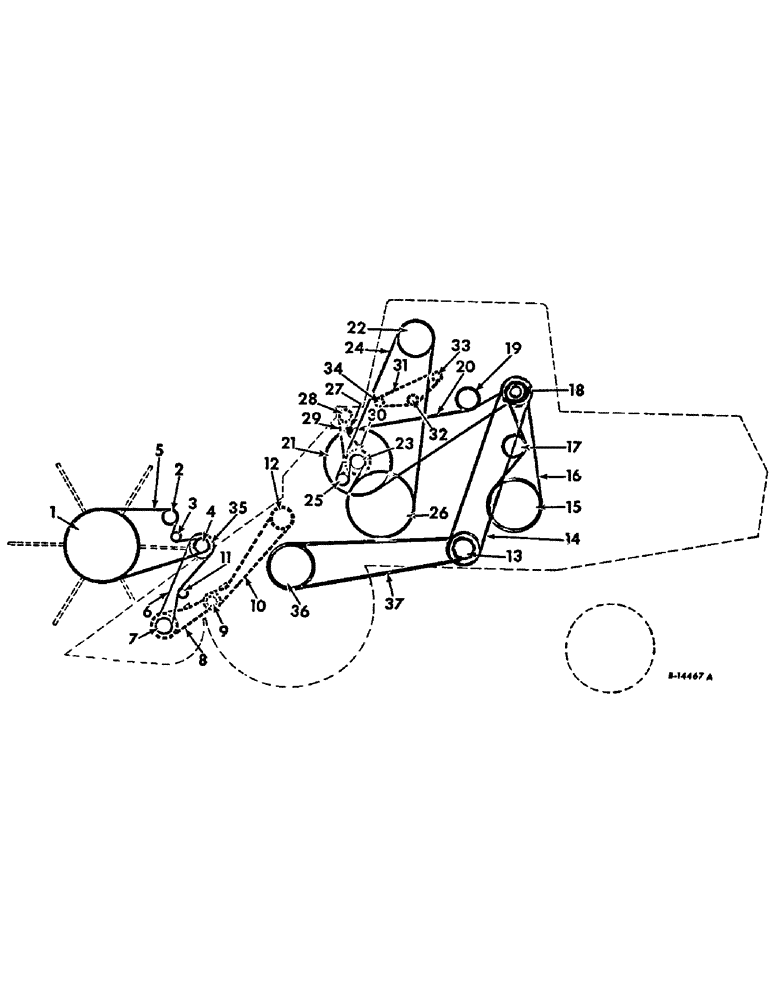

Запчасти Case IH 315 (08) - BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, LEFT SIDE OF MACHINE (00) - GENERAL

1

554575R91

PULLEY ASSY, reel driven, standard bat reel, 7-1/2 OD, 7-1/4 bore 10 ft., 13. and 14 ft. platforms

1шт.

1

588227R11

PULLEY

ASSY, reel driven, slow speed bat reel, 21-1/2 OD, 2-7/8 bore, 10 ft., 13 ft. and 14 ft. platforms

1шт.

1

570032R1

SPROCKET ASSY.

SPROCKET, reel driven 29-T, bat type reel, 16 ft. platform, See unit listed under reel support arms and drive

1шт.

2

552087R92

PULLEY ASSY, reel drive tightener front, standard bat reel, 5-5/8 OD, 1/2 bore, 10 ft., 13 ft. and 14 ft. platforms

1шт.

2

564989R91

DRIVE SPROCKET

SPROCKET ASSY, reel drive idler, bat reel, 16 ft. platform

1шт.

2

564898R91

SEAL

SPROCKET ASSY, reel drive tightener 9-T, 1/2 in. brg bore, pickup reel, See list listed under reel drive and support arms

2шт.

3

559292R93

PULLEY

ASSY, reel drive tightener rear, bat reel, 4-1/2 OD, 33/64 bore, 10 ft., 13 ft. and 14 ft. platforms

1шт.

3

564989R91

DRIVE SPROCKET

SPROCKET ASSY, reel drive idler, bat reel, 16 ft. platforms, See unit listed under reel drive and support arms

1шт.

4

21666K

PULLEY ASSY, reel drive, bat reel, 6-3/4 OD, 2 in. bore, 10 ft., 13 ft. and 14 ft. platforms

2шт.

4

165573C11

SPROCKET ASSY, reel conter shaft driven 13-T, bat reel, 16 ft. platform

1шт.

4

569137R1

SPROCKET, reel drive 10-T, pickup reel, 1-5/8 in. bore, See unit listed under reel drive and support arms

1шт.

5

554653R2

V-BELT,0.63" W

Reel drive, Standard bat reel, 10 ft., 13 ft. and 14 ft. platforms 0.63" W

1шт.

5

CHAIN ASSY, reel drive, bat reel, 16 ft. platform, Use 115 links from 10 ft. roll marked 569089R91 and one connecting link 587372R91 and one offset link 456929R91

1шт.

5

CHAIN ASSY, reel drive, pickup reel, Use 109 links from 10 ft. roll marked 569089R91, three connecting links 456980R91, one offset link 456929R91 and two roller links 456979R91, See unit listed under reel drive and support arms

1шт.

6

610521R1

V-BELT

Reel countershaft drive, Bat reel, 10 ft., 13 ft. and 14 ft platforms

1шт.

6

CHAIN ASSY, reel countershaft drive, bat reel, 16 ft platform, Use 45 links form 10 ft. roll marked 569089R91, one connecting link 587372R91 and four offset links 4569296R91

1шт.

6

CHAIN ASSY, reel countershaft drive, pickup reel, Use 49 links from 10 ft roll marked 569089R91, one connecting link 587372R91 and one offset link 456929R91, See unit listed under reel drive and support arms

1шт.

7

936891R1

PULLEY, auger driven sprocket and reel countershaft, standard, 7 in. OD pulley, 26-T sprocket, 10 ft, 13 ft and 14 ft platforms, For use w/countershafts 936888R91 and 936890R91, Serial no. 700 and below, See unit listed under platform auger

1шт.

7

936892R1

SPROCKET, platform auger driven 21-T, 5-13/16 OD pulley tapered bore, special fast speed, 10 ft, 13 ft and 14 ft platforms, For use w/countershafts 936888R91 and 936890R91, Serial no. 700 and below, See unit listed under platform auger

1шт.

7

936993R1

SPROCKET ASSY.

SPROCKET, auger driven and reel countershaft drive 11-T and 26-T, pickup reel, For use w/countershafts 936888R91 and 936890R91, Serial no. 700 and below, See unit listed under reel drive and support arms

1шт.

7

164112C1

PULLEY, reel drive countershaft, standard, 7 in. OD, 2 in. bore, 10 ft, 13 ft and 14 ft platforms, For use w/countershafts 164108C91 and 164107C91, Serial no. 701 and above, See unit listed under platform auger

1шт.

7

164115C1

PULLEY, reel drive countershaft, special fast speed, 5-13/16 in. OD, 2 in. bore, 10 ft, 13 ft and 14 ft platforms, For use w/countershafts 164107C91 and 164108C91, Serial no. 701 and above See unit listed under platform auger

1шт.

7

164110C1

SPROCKET ASSY.

SPROCKET, auger driven 52-T, standard, 10 ft, 13 ft, 14 ft and 16 ft platforms, For use w/countershafts 164108C91, 164107C91 and 165562C91, Serial no. 701 and above, See unit listed under platform auger

1шт.

7

164114C1

SPROCKET, auger driven 42-T, special fast speed, 10 ft, 13 ft, 14 ft and 16 ft platforms, For use w/164107C91, 164108C91 and 165562C91, Serial no. 701 and above, See unit listed under platform auger

1шт.

7

164113C1

SPROCKET, pickup driven 11-T, pickup reel, 10 ft, 13 ft, 14 ft and 16 ft platforms, For use w/countershafts 164107C91, 164108C91 and 165562C91, Serial no. 701 and above, See unit listed under reel drive and support arms

1шт.

8

CHAIN ASSY, auger drive, 10 ft, 13 ft and 14 ft platforms, For use w/countershafts 936888R1 and 936890R91, Serial no. 700 and below, Use 37 links from 10 ft. roll marked 569089R91, three connecting links 589372R91 and one offset link 456929R91

1шт.

CHAIN ASSY, auger drive, 10 ft, 13 ft, 14 ft and 16 ft platforms, For use w/countershafts 164108C91, 164107C91 and 165562C91, Serial no. 701 and above, Use 83 links from 10 ft. roll marked 1791D, one connectiong link 1310D, and two offset links 1315D, See unit listed under platform auger

1шт.

9

936886R91

SPROCKET ASSY.

SPROCKET ASSY, knife drive and feeder countershaft driven 20-T, 1-1/4 bore, See unit listed under feeder chain and drive

1шт.

10

CHAIN ASSY, feeder countershaft drive, long feeder, 10 ft, 13 ft and 14 ft platforms, Use 71 links from 10 ft. roll marked 569089R91, one roller link 456979R91, two connecting links 587372R91 and one offset connecting link 456929R91

1шт.

10

CHAIN ASSY, countershaft drive, extra long, 10 ft, 13 ft and 14 ft platforms, Use 85 links from 10 ft. roll marked 569089R91, one roller link 456979R91, two connecting links 589372R91 and one offset link 456929R91

1шт.

10

CHAIN ASSY, feeder countersshaft drive, edible bean, Use 71 links from 10 ft roll marked 569089R91, one connecting link 1310D and two offset link 456929R91

1шт.

10

CHAIN ASSY, feeder countershaft drive, long feeder, 16 ft platform, Use 147 links from 10 ft roll marked 1791D, one connecting link 1310D and two offset links 1315D

1шт.

10

CHAIN ASSY, feeder countershaft drive, extra long feeder, 16 ft platform, Use 175 loinks form 10 ft roll marked 1791D, one connecting link 1310D and two offset link 1315D, See unit listed under feeder chain and drive

1шт.

11

559292R93

PULLEY

ASSY, reel rear drive tightener, 4-1/2 OD, 33/64 bore, 10ft, 13 ft and 14 ft platforms

1шт.

11

564989R91

DRIVE SPROCKET

SPROCKET ASSY, reel drive idler 9-T, 16 ft platform, See unit listed under reel drive and support arms

1шт.

12

159499C91

SPROCKET ASSY, feeder countershaft drive 34-T, standard

1шт.

12

159501C91

SPROCKET ASSY, feeder countershaft drive 25-T, edible bean, See unit listed under feeder chain drive

1шт.

13

935966R1

PULLEY, propulsion drive inner, 11-3/16 OD, 1 in. bore, belt drive transmission

1шт.

13

617075R1

PULLEY, propulsion drive outer, 11-3/16 OD, 1 in. bore, For belt drive transmission, See unit listed under propulsion drive

1шт.

14

152454C1

V-BELT,1.50" W x 138.98" L

Propulsion Drive Upper, Belt Drive Transmission, See Unit Listed Under Propulsion Drive

1шт.

15

152028C91

PULLEY ASSY, unloader jackshaft driven, 18-19/32 OD, 2-11/16 in. bore, See unit listed under grain tank cross auger

1шт.

16

151731C1

V-BELT,0.88" W x 125.99" L

Unloader Drive, See Unit Listed Under Grain Tank Cross Auger 0.88" W x 125.99" L

1шт.

17

565441R91

BEARING

PULLEY ASSY, unloader drive belt idler, 8-3/4 OD, 21/32 in. bore, See unit listed under grain tank loading auger divider control and drive

1шт.

18

151728C1

PULLEY, separator drive, 8-5/32 OD, 1-1/2 in. bore, belt drive transmission

1шт.

18

153499C1

PULLEY, main drive, 8-1/4 OD, 3-1/2 in. bore, hydrostatic drive

1шт.

18

153498C2

PULLEY, unloader jackshaft drive, 8-5/32 OD, 3-1/4 in. bore, hydrostatic drive, See unit listed under power take-off

1шт.

19

606555R1

PULLEY, cylinder beater idler, 8 in. OD, 1-3/4 in. bore, See unit listed under cylinder drive and slip clutch and cylinder beater drive

1шт.

20

151730C2

V-BELT,0.49" W x 159.39" L

Cylinder Beater Drive, See Unit Listed Under Cylinder Drive and Slip Clutch and Cylinder Beater Drive 0.49" W x 159.39" L

1шт.

21

151717C1

PULLEY, beater driven, 21-1/2 OD, splined bore, See unit listed under cylinder drive and slip clutch and cylinder beater drive

1шт.

22

155718C11

PULLEY

ASSY, grain elevator driven, grain, 13 in. OD, 2-1/4 bore, See unit listed under grain elevator trough and drive

1шт.

23

151715C1

PULLEY, straw rack and grain elevator drive, 6-9/16 OD, splined bore, See unit listed under grain elevator trough and drive

1шт.

24

150433C1

V-BELT,206.49" L

Straw Rack and Grain Elevator Drive, Not Raised Distributor Auger 206.49" L

1шт.

24

161285C1

BELT

straw rack and grain elevator drive, raised distributor auger

1шт.

24

161285C1

BELT

straw rackand grain elevator drive, For use w/Scourkleen ATT, See unit listed under grain elevator trough and drive

1шт.

25

154742C91

PULLEY

ASSY, straw rack and grain elevator idler, 7 in. OD, 5/8 brg bore, See unit listed under grain elevator trough and drive

1шт.

26

155719C11

PULLEY ASSY, straw rack driven, 21-3/16 OD, 2-29/32 bore, See unit listed under straw rack and return pan

1шт.

27

565336R91

BEARING

SPROCKET ASSY, delivery auger drive chain tightener, 11-T, 1-1/2 brg bore, See unit listed under tailing elev, trough and drive

1шт.

28

606484R11

SPROCKET ASSY, tailings delivery auger driven, 16-T, 7/8 bush bore, See unit listed under tailings elev, trough and drive

1шт.

29

CHAIN, tailings delivery auger drive, Use 47 links from 10 ft roll marked 569088R91, one connecting link 457113R91 and two offset connecting links 457114R91, See unit listed under tailings elevator, trough and drive

1шт.

30

151711C1

SPROCKET, tailings delivery auger driver, 12-T, splined bore, See unit listed under tailings elevator trough and drive

1шт.

31

CHAIN, upper unloader, Use 51 links from 10 ft roll marked 1791D and one connecting link 13610D, See unit listed under grain tank unloader and drive

1шт.

32

565442R91

SPROCKET

ASSY, upper unloader tightener, 17-T, 1/2 brg bore, See unit listed under grain tank unloader and drive

1шт.

33

156905C91

SPROCKET ASSY W/HUB, upper unloader driven, 12-T, 1 in. bore, See unit listed under grain tank unloader and drive

1шт.

34

153895C91

SPROCKET ASSY, W/HUB, upper unloader drive, 14-T, 1 in. bore, See unit listed under grain tank unloader and drive

1шт.

35

564697R21

PULLEY ASSY, reel countershaft driven, 10-3/8 OD, 2-17/64 bore, bat reel, 10 ft, 13 ft and 14 ft platforms

1шт.

35

936994R11

SPROCKET ASSY, reel countershaft driven 18-T, pickup reel

1шт.

35

569018R2

SPROCKET ASSY.

SPROCKET, reel drive 16-T, 16 ft platform

1шт.

35

569019R2

DRIVE SPROCKET

SPROCKET, reel drive 14-T, 16 ft platform

1шт.

35

569020R2

SPROCKET ASSY.

SPROCKET, reel drive 12-T, 16 ft platform, See unit listed under reel drive and support arms

1шт.

36

397355R1

PULLEY

propulsion driven, 13-5/8 OD, 1-3/8 in. bore, See unit listed under main axle clutch and propulsion drive

1шт.

37

152359C1

V-BELT,1.50" W x 147.40" L

Propulsion Drive Lower, See Unit for Belt Drive Transmissions, Listed Uder Propulsion Drive 1.50" W x 147.40" L

1шт.
