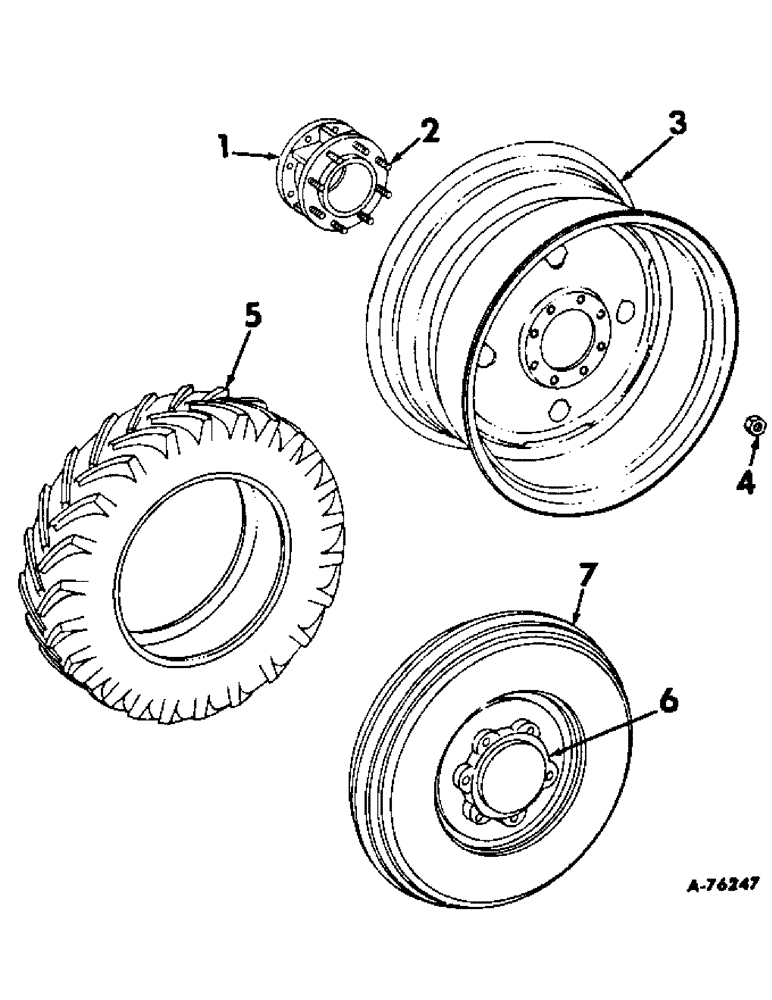

Запчасти Case IH 315 (L-02) - WHEELS AND WHEEL WEIGHTS, MAIN AND GUIDE WHEEL, TIRE AND TUBE Wheels & Wheel Weights

1

654676R11

SPACER ASSY, wheel, standard for rice

2шт.

2

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

5/8 x 2-3/8 wheel, standard for rice

16шт.

3

153513C91

DISC AND RIM ASSY, main wheel w/12-26DC, For use w/14.9/13-26 code R1 main wheel tire, standard

2шт.

3

166254C91

DISC AND RIM ASSY, main wheel DW12-26 and DW12-26 reinforced wheel, For use w/16.9/14-26 and 14.9/13-26 main wheel tires

2шт.

3

627370R91

DISC AND RIM ASSY, main wheel RH DW/14-26, For use w/18.4/15-26 main wheel tire 6P-R1

1шт.

3

155943C91

DISC AND RIM ASSY, main wheel LH DW/14-26, For use w/18.4/15-26 main wheel tire 6P-R2

2шт.

3

569366R91

WHEEL

DISC AND RIM ASSY, main wheel DW20-26, For use w/23.1/18-26 main wheel tire, standard for rice

2шт.

4

425-1110

NUT,5/8"-18, G5

5/8 C-Z wheel bolt

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

5

TIRE, 14.9/13-26 6 ply code R1

2шт.

5

TUBE, 14.9/13-26 w/TR-218 valve

2шт.

5

TIRE, 18.4/15-26 6 ply code R1

2шт.

5

TUBE, 18.4/15-26 w/TR-218 valve

2шт.

5

TIRE, 23.1/18-26 8 ply code R2

2шт.

5

TUBE, 23.1/18-26 w/TR-218 valve

2шт.

5

TIRE, 16.9/14-26 6 ply code R1

2шт.

5

TUBE, 16.9/14-26 w/TR-218 valve

2шт.

5

TIRE, 18.4/15-26 6 ply code R2

2шт.

6

153877C91

RIM AND DISC ASSY, guide wheel 4.50E x 16 DC, For use w/6.50-16 guide wheel tire, standard for grain

2шт.

6

606670R91

WHEEL

RIM AND DISC ASSY, guide wheel 5.00F x 18 DC, standard for rice, For use w/7.50-18 guide wheel tire

2шт.

7

TIRE, 6.50-16 4 ply code I-1 guide wheel, standard for grain

2шт.

7

TIRE, 7.50-18 4 ply code F-1 guide wheel, standard for rice

2шт.

7

TIRE, 7.50-18 4 ply code I-1 guide wheel, special

2шт.

7

TIRE, 7.50-18 4 ply code F-2 guide wheel

2шт.

7

TUBE, 6.50-16 w/TR-15W guide wheel, standard for grain

2шт.

7

TUBE, 7.50-18 w/TR-15W guide wheel, standard for rice, special

2шт.
