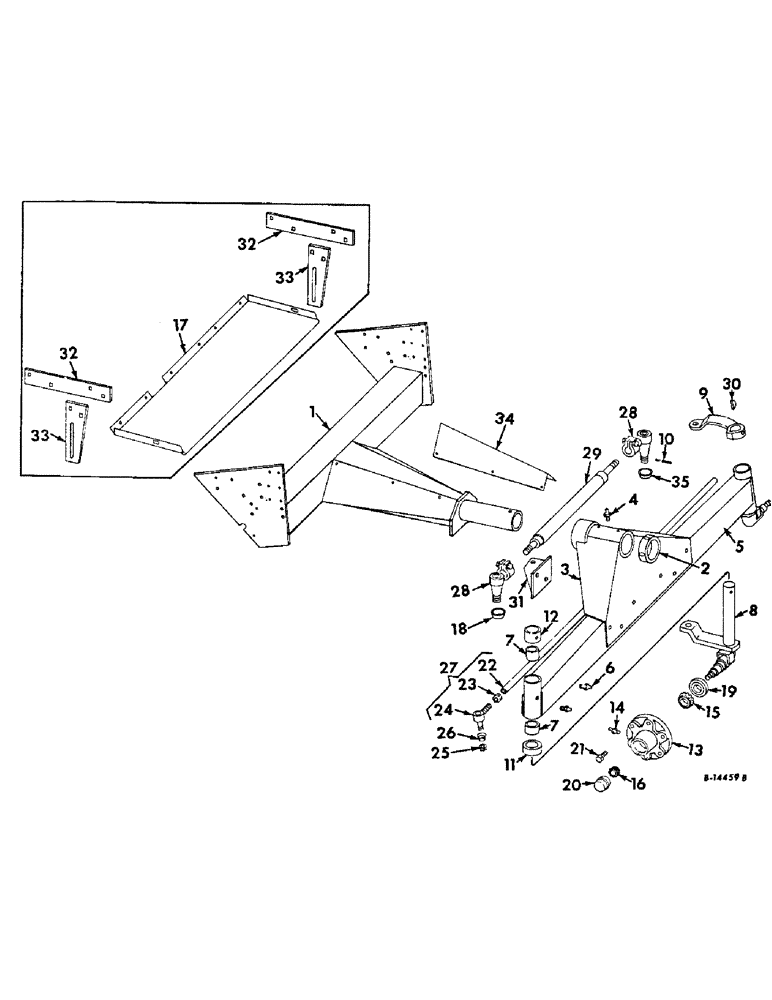

Запчасти Case IH 315 (J-04) - STEERING MECHANISM, GUIDE WHEEL AXLE AND SHIELD Steering Mechanism

1

153514C92

FRAME ASSY, guide wheel support

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach.

2шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 C-Z hex-hd type 4

12шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 C-Z hex-hd type 4

18шт.

120376

NUT,5/16"-18, G5

2шт.

21333R1

NUT,3/8"-16, G8

3/8-16 C-Z type 4 hex

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

2шт.

21330R1

NUT,1/2"-13, G8

1/2-13 hex C-Z type 4

18шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap.

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

18шт.

2

619946R2

COLLAR, guide wheel support frame pivot

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

21602R1

PIN, 3/8 x 4-3/8 C-Z std-hd hard

1шт.

3

152446C91

PIVOT ASSY, guide wheel axle

1шт.

211217R1

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 8

1/2 x 4-3/4 znd type 4 hex-hd

4шт.

21337R1

BOLT, 1/2 x 5 C-Z hex-hd type 4

2шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex. type 4

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

4

219-28

LUBE NIPPLE,5/16" - 32

FITTING, 5/16-32 nef str lub

2шт.

5

154140C91

AXLE ASSY, guide wheel, grain, bean and perforated screen and wide guide wheel axle

1шт.

5

154153C91

AXLE ASSY, guide wheel, rice and narrow guide wheel axle

1шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

7

614354R1

BUSHING, guide wheel axle spindle sleeve

4шт.

8

159494C91

SPINDLE ASSY, guide wheel axle LH

1шт.

8

163401C91

SPINDLE ASSY, guide wheel axle RH

1шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 NF slt hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

23071R1

WASHER

29/32 x 2 x 7 ga C-Z

2шт.

22058R1

WASHER, 1-21/32 x 3 x 16 ga C-Z

1шт.

9

163400C1

ARM, cyl pivot

1шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

159806C1

PIN, steering cylinder rod end RH

1шт.

11

141067H

TAPERED BEARING,41.43mm ID x 72.87mm OD x 21.69mm W

ASSY, guide wheel axle spindle tapered roller thrust

2шт.

12

614361R1

COLLAR, guide wheel axle LH spindle

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21878R1

HEADED PIN,3/8" x 2 3/4"

PIN, 3/8 x 2-3/4 C-Z std-hd

1шт.

13

161001C91

HUB

W/BEARING CUPS, guide wheel

2шт.

14

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

15

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, guide wheel hub tapered roller, Used inner

2шт.

16

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, guide wheel hub tapered roller, Used outer

2шт.

17

153388C1

PLATE ASSY.

SECTION, straw deflector, guide wheel axle shield

1шт.

18

382562R1

SEAL

dust

2шт.

19

614410R91

SEAL

guide wheel hub oil

2шт.

20

614406R1

CAP

guide wheel hub

2шт.

21

663000R1

BOLT,1/2" - 20 x 1 1/32"

guide wheel hub

12шт.

22

156337C1

TUBE, guide wheel tie rod, grain, bean and perforated screen and wide guide wheel axle

1шт.

22

587753R1

TUBE, guide wheel tie rod, rice and narrow guide wheel axle 38.75" Length

1шт.

23

366431R1

JAM NUT

tie rod end left hand lock

1шт.

23

366432R1

JAM NUT

NUT, tie rod end right hand lock

1шт.

24

154823C91

SOCKET

ASSY, tie rod left hand

1шт.

24

154824C91

END

SOCKET ASSY, tie rod right hand

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

25

125258

SLOTTED NUT,9/16"-18, G5

2шт.

26

189466R1

BOOT

SEAL, guide wheel tie socket

2шт.

27

587745R91

ROD ASSY, guide wheel tie, rice and narrow guide wheel axle

1шт.

27

156336C91

ROD ASSY, guide wheel tie, grain, bean and perforated screen and wide axle

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

21862R1

WASHER

19/32 x 1 x 11 ga znd

2шт.

28

159807C91

END

SOCKET ASSY, steering cyl rod

2шт.

NLS

NO LONGER SERVICED

5/8-18 C-Z slt hex

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

29

654631R91

CYLINDER ASSY, steering, For components see list of details under steering cylinder

1шт.

30

22246R1

WOODRUFF KEY,#129, 3/8" x 2 1/8", HT

KEY, 3/8 x 2-1/8 alloy Woodruff 129

1шт.

31

154146C91

BRACKET ASSY, cyl anchor, grain, bean, perforated screen and wide guide wheel axle

1шт.

31

154152C91

BRACKET ASSY, cylinder anchor, rice and narrow guide wheel axle

1шт.

32

153386C1

RAIL, grain pan side extension, guide wheel axle shield

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

33

153387C1

STRIP, straw deflector, guide wheel axle shield

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

935736R1

NUT, WING

NUT, 5/16 C-Z wing

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

34

168434C1

SHIELD ASSY, guide wheel support, Serial no 2298 and above

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

6шт.
