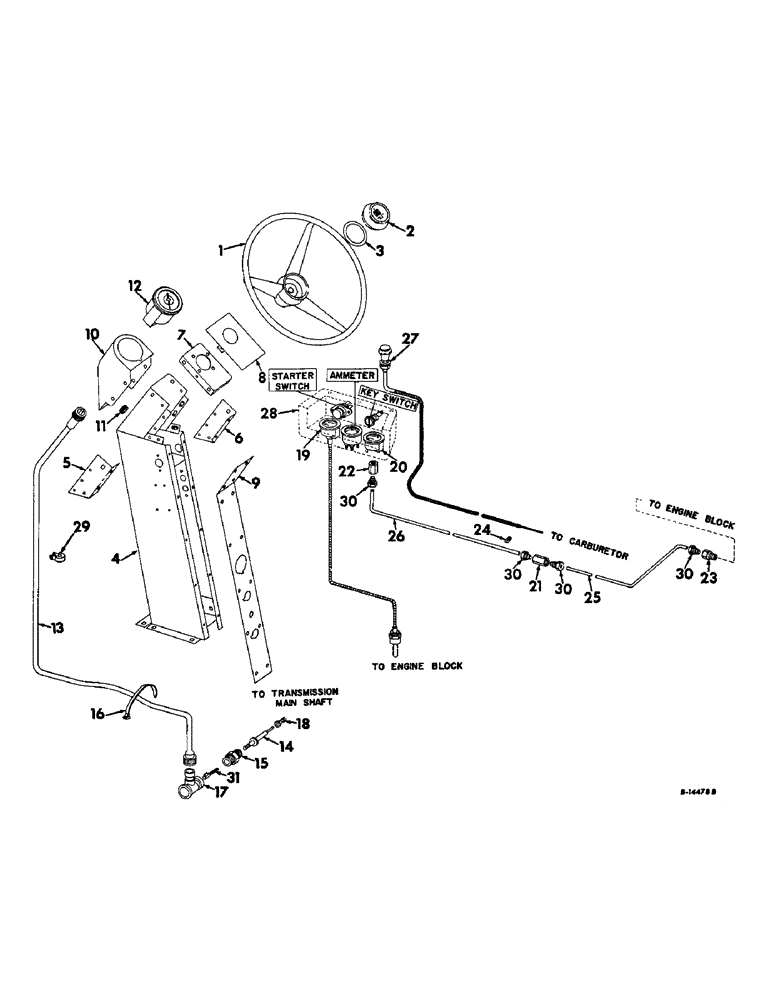

Запчасти Case IH 315 (J-02) - STEERING MECHANISM, STEERING COVER AND WHEEL, CHOKE CABLE OIL PRESSURE AND TEMPERATURE GAUGE Steering Mechanism

1

385156R1

WHEEL (STEERING)

WHEEL, steering

1шт.

1

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

2

366566R1

CAP

steering wheel

1шт.

3

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

steering wheel cap

1шт.

4

938865R91

COVER ASSY, steering, standard, belt drive transmission

1шт.

4

156046C91

COVER ASSY, steering, hydrostatic ground drive, gasoline engine

1шт.

.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

6шт.

.

120377

NUT,3/8" - 16, Gr 5

6шт.

.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

633492R1

SUPPORT, steering removable left

1шт.

6

633493R1

SUPPORT, steering removable right

1шт.

.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

8шт.

.

120376

NUT,5/16"-18, G5

8шт.

.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

7

633073R11

BRACKET ASSY, steering upper

1шт.

.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

.

120376

NUT,5/16"-18, G5

6шт.

.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

8

633074R91

COVER ASSY, steering top

1шт.

.

118832

DRIVE BUSHING

SCREW, 10-1/2 C-Z slt-pan-hd tap

3шт.

9

156338C1

PANEL, steering column, gasoline engine

1шт.

9

165793C1

PANEL, steering column, diesel engine

1шт.

.

564791R1

SPRING NUT

1/4 speed

12шт.

.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 C-Z slt-pan-hd tap

12шт.

.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

.

SPEEDOMETER ATTACHMENT, standard for hydrostatic ground drive, special for belt drive transmissions, Consists of ref. nos. 10 thru 18, 29 and 31

1шт.

10

156045C1

HOUSING, speedometer

1шт.

.

178794

SCREW, 1/4 x 1/2 C-Z pan-hd slt tap

1шт.

11

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

rubber

1шт.

12

161258C91

SPEEDOMETER

1шт.

13

156042C91

SHAFT ASSY.

SHAFT ASSY, speedometer flexible

1шт.

14

673050R91

SHAFT

ASSY, speedometer flexible drive tip

1шт.

15

128584HX

SLEEVE

UNION ASSY, speedometer shaft

1шт.

16

702093R1

CLAMP, speedometer flexible shaft

3шт.

17

160701C1

DRIVE

JOINT, speedometer flexible shaft angle, For 27/28 gear transmission, hydrostatic ground drive w/14.9-26, 16.9-26 and 18.4-26 main wheel tires, belt drive transmission w/18.4-26 and 23.1-26 main wheel tires

1шт.

17

156234C91

JOINT, speedometer flexible shaft angle, belt drive transmission w/27/28 gear transmission and 14.9-26 or 16.9-26 main wheel tires

1шт.

17

161275C1

JOINT, speedometer flexible shaft angle, hydrostatic ground drive w/21/34 gear transmission and 18.4-26 or 23.1-26 main wheel tires

1шт.

17

161276C1

JOINT, speedometer flexible shaft angle, belt drive w/15/40 gear transmission and 18.4-26 or 23.1-26 main wheel tires

1шт.

18

374639R1

COUPLING

transmission main

1шт.

19

151726C91

GAUGE ASSY.

GAUGE ASSY, temperature

1шт.

20

151727C91

GAUGE

ASSY, oil pressure

1шт.

21

20735R1

UNION, 1/8-27 hi-duty tube fitting oil pressure gauge pipe

1шт.

22

19715R1

HYD CONNECTOR,Fem, 5/16"-24

CONNECTOR, 1/8 NPTF fem hi-duty tube fitting

1шт.

23

59939D

HYD CONNECTOR,1/8" NPT x 5/16"-24

CONNECTOR, 1/8 NPTF male hi-duty tube fitting

1шт.

24

362127R1

CLIP

oil pressure gauge pipe

2шт.

25

153390C1

PLATE ASSY.

TUBE, oil gauge rear

1шт.

26

153391C1

TUBE, oil gauge front

1шт.

27

564534R91

CABLE

ASSY, choke, gasoline engine

1шт.

28

PANEL, instrument gauge, Refer to operators platform unit for listing

1шт.

29

589980R2

CLIP

CLAMP, speedometer flexible shaft

1шт.

30

222-500

TUBE NUT,5/16" - 24 NPT

NUT, 5/16-24 hi-duty tube fitting

1шт.

31

163617C1

PIN

TIP, angle joint drive

1шт.
