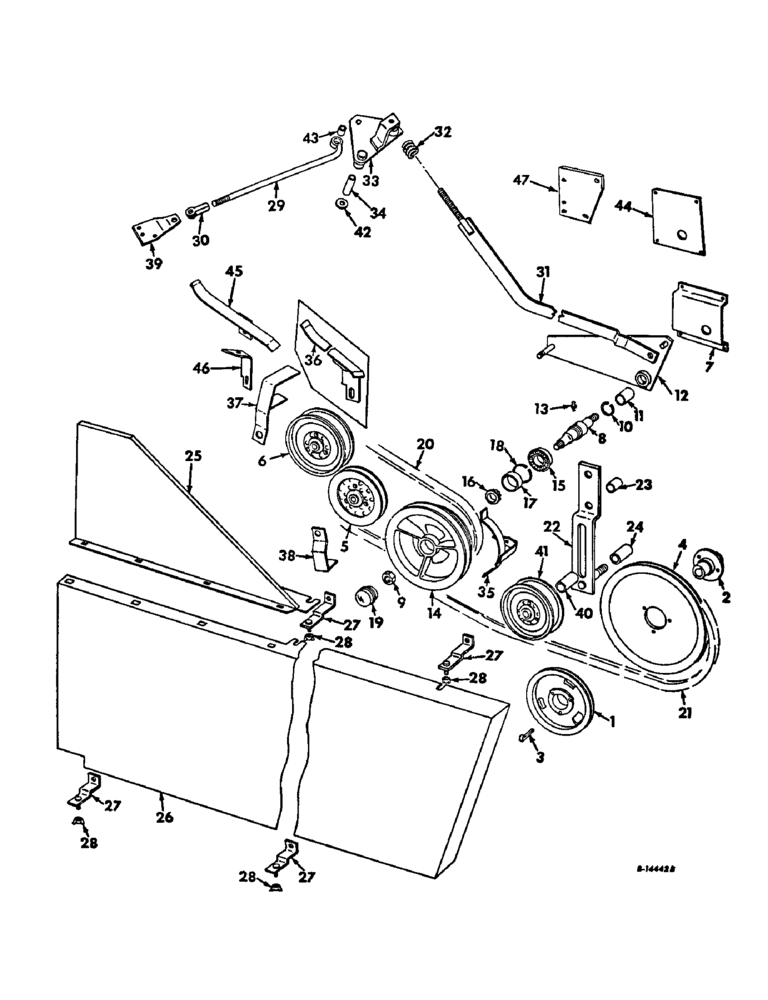

Запчасти Case IH 315 (R-41) - SEPARATOR, STRAW CHOPPER DRIVE Separation

1

151066C1

PULLEY, driven, regular 2700 RPM, 9-7/8 OD, 2-7/8 bore

1шт.

2

151065C1

HUB, driven pulley

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8 x 2-3/4 C-Z hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

3/8 x 2-3/4 gib

1шт.

4

155719C11

PULLEY ASSY, driven, slow speed 750 rpm, 21 OD, 1-7/8 bore

1шт.

5

574097R91

PULLEY

ASSY, rotor and jackshaft drive belt tightener, 7-5/16 OD, 1-1/4 bore

1шт.

6

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

ASSY, jackshaft drive belt idler, 8-3/4 OD, brg bore

1шт.

7

153463C1

SUPPORT, jackshaft

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

3шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

153468C1

SPINDLE, jackshaft

1шт.

9

606546R1

JAM NUT

5/8-11 C-Z hex. jam lock

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

RING, jackshaft spindle snap

1шт.

11

514026R1

SPACER, jackshaft spindle

1шт.

12

153438C91

SUPPORT ASSY, jackshaft drive tightener

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

3шт.

13

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

14

153300C1

PULLEY, jackshaft spindle, 11-7/16 OD, 1-25/32 bore

1шт.

15

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/CUP, jackshaft spindle pulley

1шт.

16

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, jackshaft spindle pulley cone

1шт.

16

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

17

651814R1

BEARING CUP

BEARING, jackshaft spindle pulley cup

1шт.

18

564405R1

RING, SNAP

RING, jackshaft spindle pulley snap

1шт.

19

602959R1

PLUG

CAP, hub

1шт.

20

153301C1

V-BELT,0.88" W x 115.87" L

Jackshaft Drive 0.88" W x 115.87" L

1шт.

21

153302C1

BELT

rotor drive, regular

1шт.

21

159588C1

BELT

rotor drive, slow speed

1шт.

22

153432C91

BRACKET ASSY, rotor drive belt tightener

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 C-Z hex-hd mach

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

3шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

3шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga C-Z

2шт.

23

450492R1

SPACER,1/2" Pipe x 1"

rotor tightener bracket

1шт.

24

663365R1

SPACER,1/2" Pipe x 2 1/4"

rotor tightener bracket

1шт.

25

153456C91

SHIELD ASSY, upper drive belt

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

26

154156C91

SHIELD ASSY, lower drive belt

1шт.

27

159749C91

BRACE ASSY, drive belt shield

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

28

159700C1

NUT

belt shield support wing

4шт.

29

169207C1

ROD, upper clutch control

1шт.

120371

NUT,1/2"-20, G5

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

1213H

PIN, 1/2 x 1-3/16 rod end

1шт.

30

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 x 3 light adj rod end

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

23072R1

O-RING,11.975" ID x 12.525" OD x 0.275"

PIN, 1/2 x 1-1/2 C-Z rod end

1шт.

31

153443C91

BRACE ASSY, clutch rear control

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

607891R1

WASHER

15/32x 1 x 16 ga C-Z

2шт.

32

91051R1

SPRING, clutch rear control strap stud

1шт.

33

153445C91

LEVER ASSY, clutch pivot

1шт.

21395R1

SCREW,Hex, 1/2"-13 x 5 1/4", G5

BOLT, 1/2-13 x 5-1/4 C-Z type 2

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374

SPARE PART

WASHER, 17/32 x 1-1/4 x 16 ga C-Z

1шт.

34

23885K

SPACER,3/4" Tube x 2 1/16"

clutch pivot lever

1шт.

35

153627C91

GUIDE ASSY, jackshaft belt retainer

1шт.

36

153624C91

GUIDE ASSY, jackshaft belt retainer, Serial no, Serial Range: 501-2297

1шт.

37

153620C1

STRIP, tightener pulley belt

1шт.

38

153621C91

STRIP ASSY, idler pulley belt

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

39

155825C1

BRACE, drive belt control

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach.

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

40

568005R1

SPACER,7/8" Tube x 1 3/8"

rotor drive idler pulley

1шт.

41

156221C91

PULLEY ASSY.

PULLEY ASSY, rotor drive idler

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

4шт.

42

140347R2

WASHER, pivot spacer backup

1шт.

43

48193K

SPACER, upper clutch control rod

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2 x 1-3/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

44

153535C1

PLATE, jackshaft

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

3шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

45

168009C1

GUIDE ASSY, jackshaft belt retainer, Serial no 2298 and above

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20893R1

WASHER

11/32 x 1 x 11 ga C-Z

1шт.

46

153626C1

BRACE, jackshaft upper belt retainer, Serial no 2298 and above

1шт.

47

153460C1

PLATE, jackshaft drive idler

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

3шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 C-Z hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20893R1

WASHER

11/32 x 1 x 11 ga C-Z

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

4шт.
