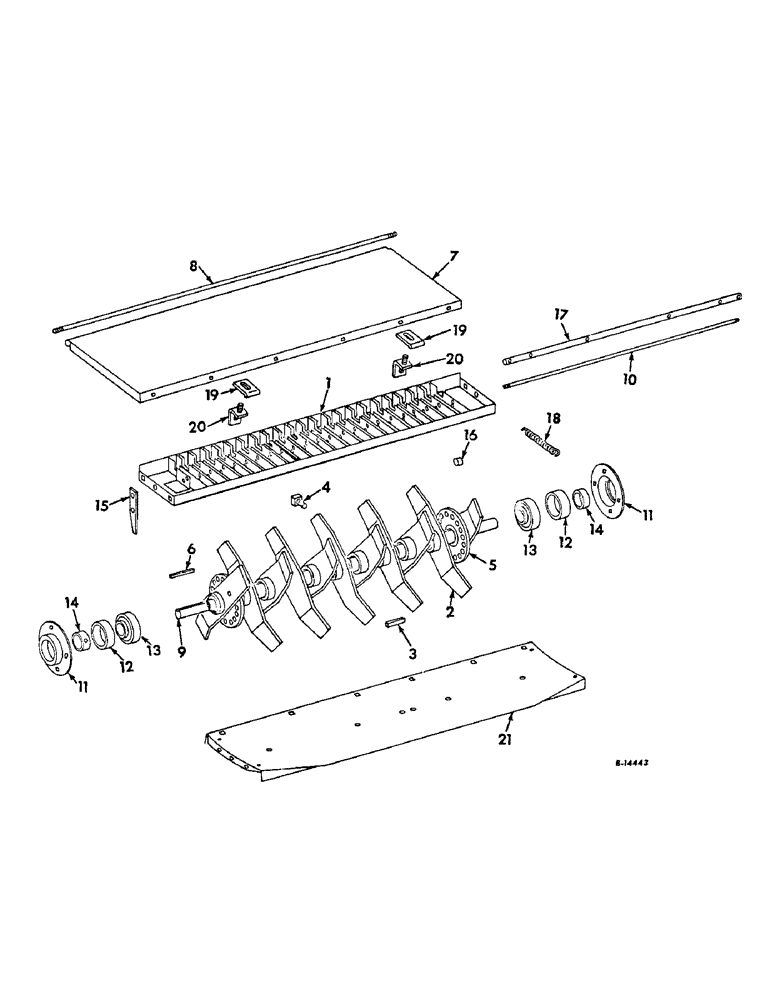

Запчасти Case IH 315 (R-39) - SEPARATOR, STRAW CHOPPER CUTTING PARTS Separation

1

153430C91

PANEL ASSY, knife support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

12шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

23шт.

120376

NUT,5/16"-18, G5

35шт.

120376

NUT,5/16"-18, G5

34шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

35шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

150988C91

BLADE

ROTOR ASSY, straw chopper

11шт.

3

572824R1

KEY, 1/4 x 3 sq parallel

11шт.

4

937499R1

SCREW, rotor hub set

52шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

52шт.

5

150991C91

ROTOR ASSY, outer

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach.

2шт.

121376

BUTTERFLY

NUT, 5/16 C-Z hex.

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

6

126

KEY,1/4" Sq x 2 1/2", Par

1/4 x 2-1/2 sq parallel

2шт.

7

153476C1

SECTION, front upper

1шт.

8

153462C1

ROD, upper front deflector

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

153473C1

SHAFT, rotor

1шт.

10

159701C1

ROD, knife pivot

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

11

936130R1

FLANGE

brg

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

12

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

brg

2шт.

13

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSY, rotor shaft ball

2шт.

14

455112R11

COLLAR

W/SET SCREW, lkg

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd cup-pt set

2шт.

15

936135R1

BLADE

chopper

23шт.

16

567532R1

WASHER

RING, locating

23шт.

17

153469C1

ROD, blade spring

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

6шт.

18

622016R1

SPRING

blade

4шт.

19

151199C1

STRIP, spring rod retainer

2шт.

20

151200C11

BRACKET ASSY, spring rod retainer

2шт.

159700C1

NUT

5/16 wing

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

21

153449C91

DEFLECTOR ASSY, lower

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

263308R1

CLIP, tail light wire

1шт.

23

702903R1

STRAP, relay wire tire

1шт.
