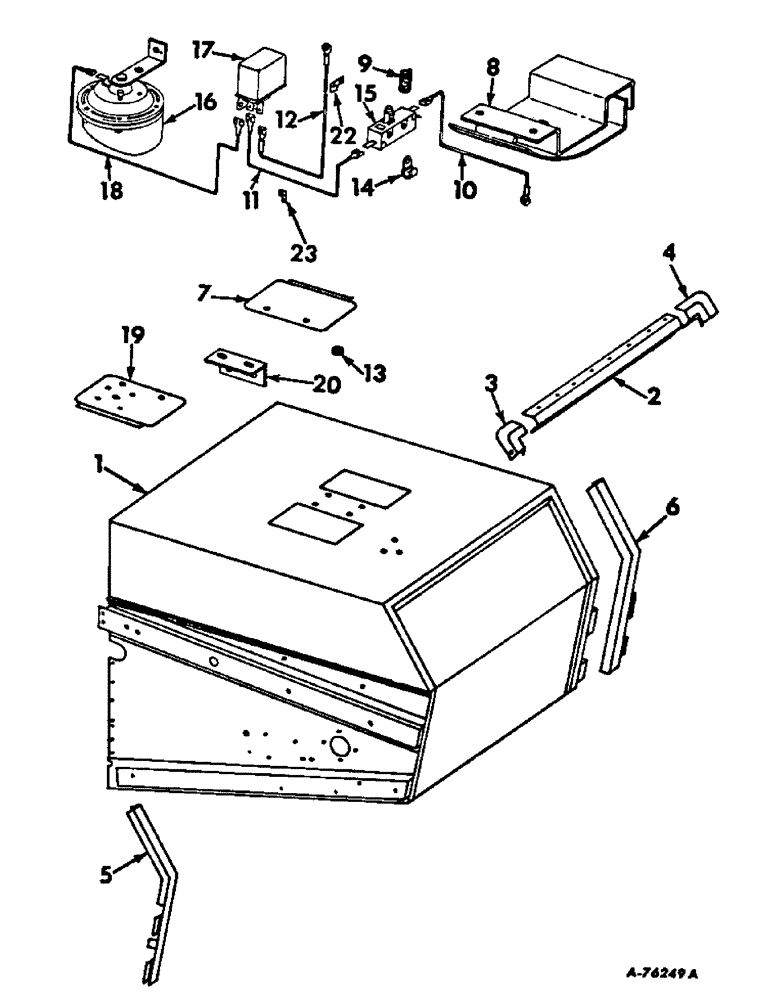

Запчасти Case IH 315 (R-35) - SEPARATOR, STRAW CHOPPER HOOD, WARNING HORN Separation

1

153481C91

HOOD ASSY, separator

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

3шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

7шт.

NLS

NO LONGER SERVICED

1/4 flat spring

4шт.

152830C1

RIVET,Pop, 1/8" x 1/4"

1/8 pop

8шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 washer face hex-hd-tap

6шт.

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

SCREW, 5/16 x 1 C-Z hex-hd tapping

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

6шт.

2

152149C1

MOLDING, separator hood rear top trim

1шт.

152830C1

RIVET,Pop, 1/8" x 1/4"

1/8 pop

8шт.

3

152184C1

BRACKET, separator hood corner trim molding LH

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 whiz lock

4шт.

4

152185C1

BRACKET, separator hood corner trim molding RH

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 whiz lock

4шт.

5

155803C91

MOLDING ASSY, hood left rear side

1шт.

152830C1

RIVET,Pop, 1/8" x 1/4"

1/8 pop

7шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z whiz lock

3шт.

6

155804C91

MOLDING ASSY, hood right rear side

1шт.

152830C1

RIVET,Pop, 1/8" x 1/4"

1/8 pop

7шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z whiz lock

3шт.

7

939773R91

COVER ASSY, hood top RH

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

8

153453C91

BRACKET ASSY, warning switch mounting

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach.

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

9

372649R1

SPRING

warning switch

1шт.

10

CABLE ASSY, ground, Use 3.5 in. of 14 ga wire from 100 ft roll marked 995055R1 and one 54772R2 terminal and one 879552R1 terminal

1шт.

11

CABLE ASSY, micro switch to relay, Use 200 in. of 14 ga wire from 100 ft roll marked 995055R1 and two 879552R1 terminal

1шт.

12

CABLE ASSY, relay to starter, Use 50 in. of 14 ga wire from 100 ft roll marked 995055R1 and one 54772R2 terminal and one 879552R1 terminal

1шт.

13

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

rubber

1шт.

14

362127R1

CLIP

wire

8шт.

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd tap

2шт.

15

633643R91

SWITCH

ASSY, micro

1шт.

68107H

LOCK NUT

micro switch

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

16

166166R91

HORN

ASSY, warning

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd whiz lock

1шт.

17

241120R91

RELAY

ASSY, warning horn

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

1шт.

18

CABLE ASSY, relay to horn, Use 18 in. of 14 ga wire from 100 ft roll marked 995055R1 and two 879552R1 terminals

1шт.

19

165782C91

COVER ASSY, hood top LH

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

20

161480C1

ANGLE, connecting RH

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
