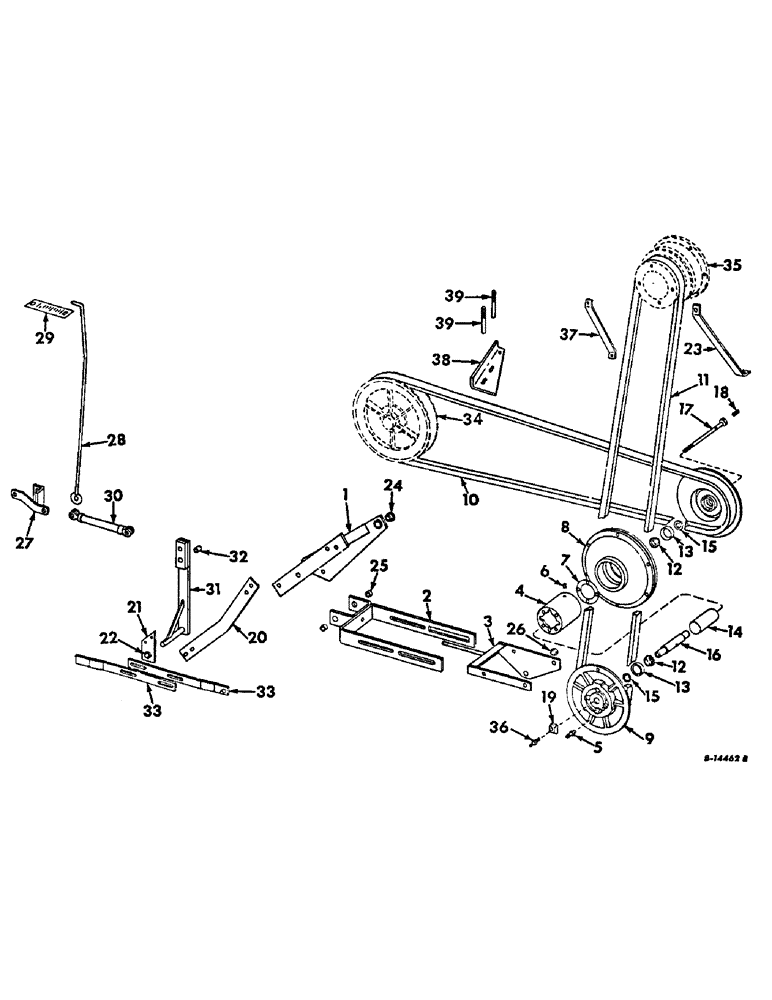

Запчасти Case IH 315 (R-31) - SEPARATOR, PROPULSION DRIVE Separation

1

151776C91

BRACKET ASSY, variator pivot, Includes ref no 24

1шт.

2

153767C93

BRACKET ASSY, variator outer, belt drive transmission

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 C-Z hex-hd mach.

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga C-Z

2шт.

3

154010C91

FRAME ASSY, variator inner, Serial no 700 and below

1шт.

3

164396C91

FRAME ASSY, variator inner, Serial no 701 and above, belt drive transmission, Includes ref no 26

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

4

617078R1

HUB, propulsion drive variable pulley, For belt drive transmission

1шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, For belt drive transmission 1/8"-27 x .66 lg

1шт.

6

617077R1

WICK

variable pitch pulley grease, For belt drive transmission

2шт.

7

617081R1

SHIM, variable drive .010

5шт.

7

617082R1

SHIM, variable drive .003, For belt drive transmission

4шт.

8

935966R1

PULLEY, propulsion drive inner, For belt drive transmission, 11-3/16 OD, 1 in. bore

1шт.

9

617075R1

PULLEY, propulsion drive outer, For belt drive transmission, 11-13/16 OD, 1 in. bore

2шт.

21333R1

NUT,3/8"-16, G8

3/8 type 4 C-Z hex

4шт.

21771R1

SCREW, 3/8 x 6 type 4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

152359C1

V-BELT,1.50" W x 147.40" L

Propulsion Drive Lower, For Belt Drive Transmission 1.50" W x 147.40" L

1шт.

11

152454C1

V-BELT,1.50" W x 138.98" L

Propulsion Drive Upper, For Belt Drive Transmission 1.50" W x 138.98" L

1шт.

12

463911R91

ROLLER BEARING,1" ID x 0.58"

BEARING ASSY, propulsion drive pulley cone, For belt drive transmission

2шт.

13

572564R1

BEARING CUP

BEARING, propulsion drive pulley cup, For belt drive transmission

2шт.

14

617079R1

PIPE, grease retainer, For belt drive transmission

1шт.

15

617159R91

SEAL, propulsion drive pulley oil, For belt drive transmission

2шт.

16

617080R1

SLEEVE, propulsion drive pulley, For belt drive transmission

1шт.

17

163540C1

BOLT, propulsion drive pulley mounting, For belt drive transmission

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga C-Z

1шт.

18

446623

SCREW

1/4-28 x 1/4 C-Z hex-soc-hd set cup-pt, For belt drive transmission

1шт.

19

156148C1

NUT, propulsion drive pulley, For belt drive transmission

1шт.

20

152453C1

BAR, pivot support bracket lower brg

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach.

2шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach.

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

21

153148C11

BLOCK ASSY, lower variator frame, Includes ref no 22

1шт.

22

617136R1

BUSHING, lower variator frame bar

1шт.

23

153508C1

BRACE, upper variator pivot rear

1шт.

24

606936R1

PIVOT ASSY.

BUSHING, variator linkage lever

1шт.

25

153769C1

BUSHING, variator frame, Serial no, Serial Range: 501-2297

2шт.

25

169262C1

BUSHING, variator frame, Serial no 2298 and above

1шт.

26

154012C1

BUSHING, variator inner frame

1шт.

27

152752C91

BRACE ASSY, propulsion hyd cyl, For belt drive transmission

1шт.

28

153747C11

ROD ASSY, propulsion indicator, For belt drive transmission

1шт.

29

938815R1

INDICATOR, propulsion, For belt drive transmission

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

30

387864C91

CYLINDER ASSY, hydraulic propulsion control, For belt drive transmission, For components see list of parts under details of propulsion control cylinder

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

472635R1

WASHER

19/32 x 1 x 16 ga C-Z

2шт.

31

152755C91

ROCKSHAFT ASSY, variable speed, belt drive transmission, Includes ref no 32

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

32

154013C1

BUSHING, variable speed link, belt drive transmission

1шт.

33

152758C91

BRACE ASSY, variable speed, belt drive transmission

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

34

PULLEY, propulsion driven, Refer to main axle clutch and propulsion drive for listing

1шт.

35

PULLEY, separator drive, Refer to power take-off unit for listing

1шт.

36

16964R91

FITTING

1/4-28NS 3/4 taper 90 deg lub

1шт.

37

152197C1

BRACE, pivot support bracket upper

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

1шт.

38

165131C1

SUPPORT, propulsion belt finger guide

1шт.

39

570072R1

STUD, propulsion belt finger guide

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.
