Запчасти Case IH 315 (R-27) - SEPARATOR, FAN AND FAN DRIVE Separation

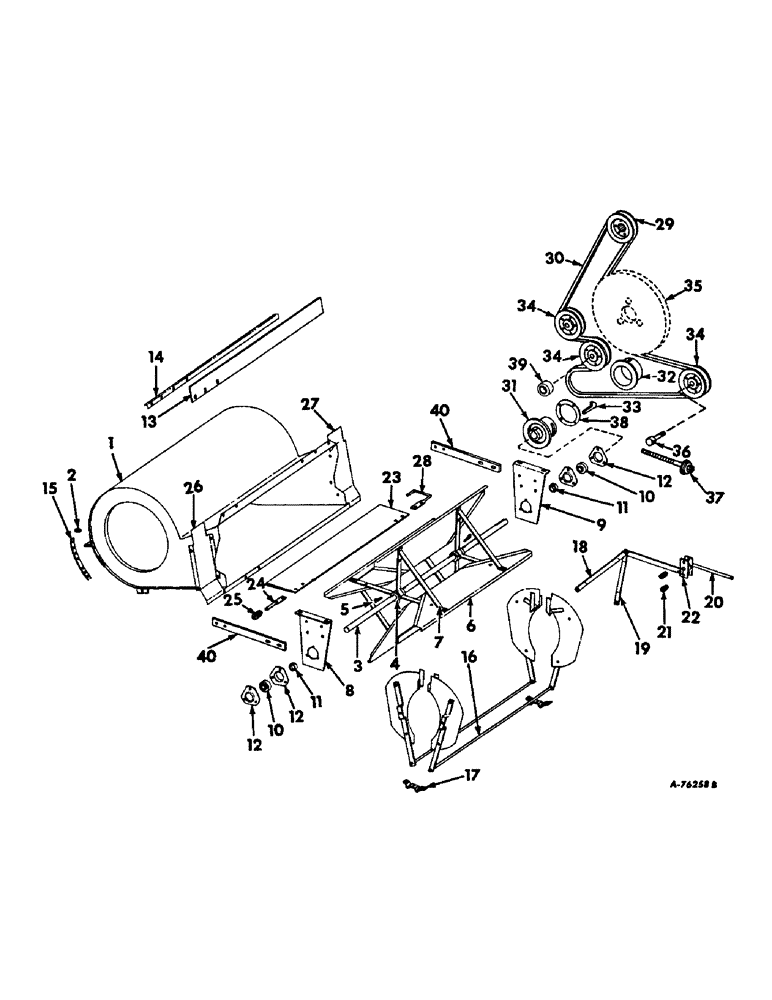

Схема запчастей Case IH 315 - (R-27) - SEPARATOR, FAN AND FAN DRIVE Separation
38
23
14
17
32
3
9
10
22
27
31
30
19
40
8
13
12
15
21
12
36
7
18
5
33
20
11
34
37
6
40
24
26
1
16
39
28
34
34
4
29
2
10
25
12
35
11

Артикул

Название

Примечание

Количество

1

607035R91

HOUSING ASSY, fan

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 1/4 x 3/4 C-Z hex-hd mach

7шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

231-1435

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 ESNA stop

4шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 C-Z slt-pan-hd mach

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

2

611352R1

WASHER

fan housing support bolt

4шт.

3

158776C1

SHAFT, fan

1шт.

4

572021R1

SPIDER ASSY, fan

2шт.

5

Q3933

KEY,Gib, 5/16" Sq x 2 1/8"

5/16 x 2-1/8 gib

2шт.

6

937585R1

BLADE, fan

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

7

572024R1

SUPPORT

BRACE, fan spoke

8шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

168141C1

BRACKET ASSY, fan shaft LH brg

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 C-Z hex-hd mach.

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

9

168142C1

BRACKET ASSY, fan shaft RH brg

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach.

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

10

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

fan shaft ball

2шт.

11

455102R11

COLLAR

ASSY, fan shaft brg lkg

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd cup-pt set

2шт.

12

571424R1

FLANGE

fan shaft brg mounting

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

151094C1

SEAL, fan housing to grain pan

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

11шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4-20 x 3/4 C-Z slt-pan-hd mach.

11шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

11шт.

22236R1

WASHER

17/64 x 1 x 16 ga C-Z

2шт.

14

553204R1

REINFORCEMENT

STRIP, fan housing to grain pan seal reinforcement

1шт.

15

610384R1

STRIP, fan housing reinforcing

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

10шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 C-Z slt-pan-hd mach.

10шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

10шт.

16

935158R92

REGULATOR ASSY, fan wind

2шт.

17

14688K

PLATE, fan wind regulator rod hold down

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4-20 x 3/4 C-Z slt-pan-hd mach.

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

18

610381R1

STRAP, fan wind regulator front connection

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23080R1

PIN, 5/16 x 5/8 C-Z std-hd

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

19

610382R1

STRAP, fan wind regulator rear connection

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

W6185

PIN, 5/16 x 9/16 std-hd

1шт.

23080R1

PIN, 5/16 x 5/8 C-Z std-hd

1шт.

20

607033R91

LEVER ASSY, fan wind regulator

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 C-Z hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

23080R1

PIN, 5/16 x 5/8 C-Z std-hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

21

22683VA

SPRING FAN WIND REGULATOR LEVER

2шт.

22

610386R1

PLATE, fan wind regulator lever spring pressure outer

1шт.

23

562761R1

BLADE, fan wind deflector

1шт.

24

553460R1

ROD

fan wind deflector blade LH

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach.

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

25

7422T

SPRING

fan wind deflector blade

1шт.

26

607041R1

SHIELD, fan LH

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

27

607042R1

SHIELD, fan RH

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

28

553461R1

ROD, fan wind deflector blade RH

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

167342C11

PULLEY W/PINS ASSY, fan drive, 7-9/32 OD, splined bore

1шт.

20138R1

PIN

3/8 x 1-1/4 dowel

6шт.

30

554627R1

BELT

Fan and Pitman drive, Standard

1шт.

30

554485R1

BELT 0.63" W, Fan and Pitman drive, Special slow speed 630 to 781 RPM 0.63" W

1шт.

31

153853C1

PULLEY, fan driven inner half, 6-13/16 OD, 1 in. bore, standard

1шт.

31

634078R1

PULLEY, fan driven inner half, 9-1/2 OD, 1 in. bore, special slow speed 630 to 781 RPM

1шт.

31

607068R1

PULLEY, fan driven inner half, 5-13/32 OD, 1 in. bore, special fast speed 1011 to 1355 RPM

1шт.

32

153854C1

PULLEY, fan driven outer half, 6-13/16 OD, 4-1/2 bore, standard

1шт.

475954R1

NUT

3/8 C-Z whiz lock

1шт.

236481R1

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 8

SCREW, 3/8 x 1-1/8 C-Z hex-hd cap

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

32

569811R2

PULLEY, fan driven outer half, 9-1/2 OD, 6-13/32 in. bore, special slow speed 630 to 781 RPM

1шт.

32

607069R1

PULLEY, fan driven outer half, 5-13/32 OD, 5-1/4 in. bore, special fast speed 1011 to 1355 RPM

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

33

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 x 1-1/2 gib

1шт.

34

574051R91

PULLEY

ASSY, fan drive tightener, 7 in bore, 7/8 bore, 3 used standard, 2 used special slow speed 630 to 781 RPM

3шт.

34

607071R91

PULLEY ASSY, fan drive tightener, Includes ref no 39, 6 in OD, 1-27/32 in. bore, 1 used special slow speed 630 to 781 RPM

1шт.

35

PULLEY ASSY, shaker shaft driven, standard

1шт.

35

PULLEY ASSY, shaker shaft driven, special fast speed, Refer to grain pan shoe and sieve for listing

1шт.

36

156113C1

STUD, fan drive tightener pulley

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

3шт.

37

155147C1

BOLT, fan drive tightener

1шт.

38

607070R1

RING, fan driven pulley spacer, special fast speed 1011 to 1355 RPM

5шт.

39

626899R91

NYLON BEARING,16.13mm ID x 47mm OD x 18.29mm W

BEARING ASSY, fan drive tightener, special slow speed 630 to 781 RPM, For use w/tightener pulley 607071R91 ref no 34

1шт.

40

168143C1

BRACKET, fan shaft, Serial no 2298 and above

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga C-Z

2шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

4шт.
