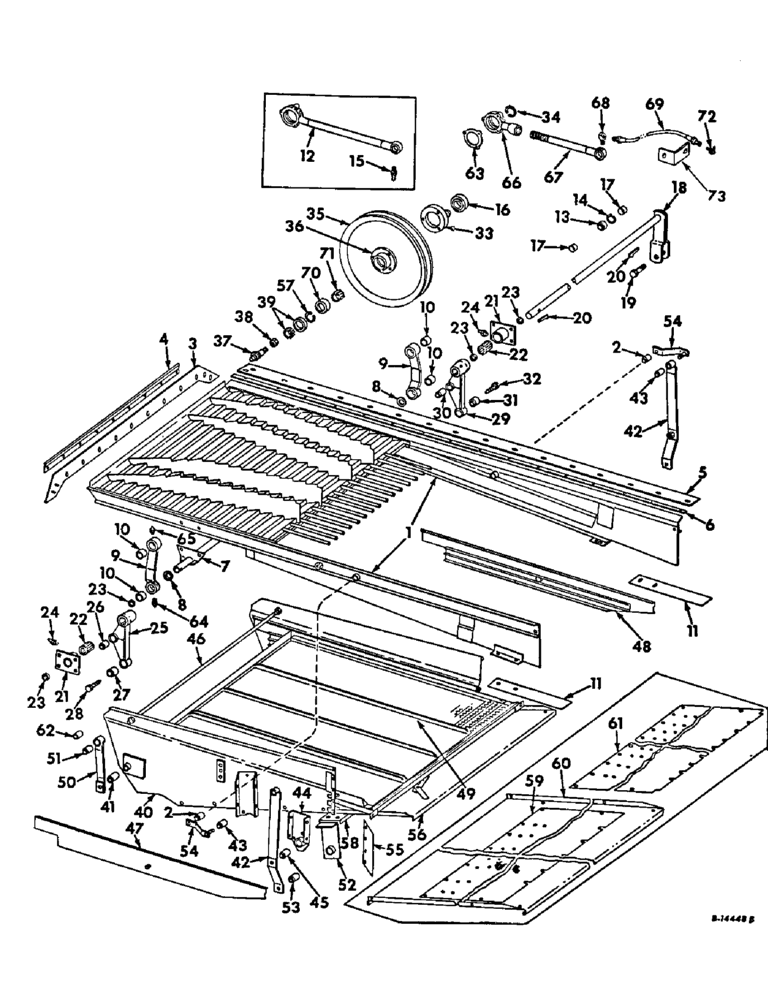

Запчасти Case IH 315 (R-23) - SEPARATOR, GRAIN PAN, SHOE AND SIEVE Separation

1

152515C91

PAN ASSY, grain, Includes ref no 2

1шт.

18797R1

BOLT

7/16 x 1-3/4 C-Z hex-hd mach

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

2

554547R91

COMPOSITE RING

BUSHING, shoe hanger rear strap upper

2шт.

3

935901R1

SEAL

grain pan front

1шт.

4

152979C1

REINFORCEMENT, grain pan front seal backing

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

9шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4-20 x 3/4 C-Z slt-pan-hd mach.

9шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

5

152518C1

SEAL

grain pan side rail

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 C-Z hex-hd self-tap

30шт.

451195

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

1/4 x 1 C-Z slt-pan-hd mach.

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

22236R1

WASHER

17/64 x 1 x 16 ga C-Z

6шт.

6

152519C1

STRAP, grain pan side rail

2шт.

7

152451C91

SUPPORT ASSY, grain pan front

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach.

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

22767R1

WASHER

1-3/32 x 1-1/2 x 11 ga C-Z

2шт.

8

617065R1

WASHER, grain pan front support tube

2шт.

9

617066R21

HANGER ASSY, grain pan front, Includes ref no 10

2шт.

10

617067R2

BUSHING

grain pan front hange r

4шт.

11

154281C1

SEAL

grain pan rear

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach.

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

22361R1

WASHER, 17/64 x 1 x 16 ga C-Z

4шт.

12

152699C91

PITMAN

ASSY, grain pan, Includes ref nos 13 and 14, Order 168543C1 housing ref no 66, 168545C91 housing ref no 67 and 219760 nut

1шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 C-Z hex-hd mach

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

13

607054R91

BUSHING

grain pan Pitman

1шт.

14

324000R1

RING

Pitman bushing retaining

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28NF taper thread str lub, For use w/Pitman 152699C91, Serial no 501 to 2297

1шт.

16

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING ASSY, grain pan Pitman ball

1шт.

17

607050R1

SPACER

grain pan Pitman

2шт.

18

152704C92

SHAFT

ASSY, rocker

1шт.

19

152780C1

BOLT, rocker shaft arm.

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 C-Z hex jam

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

20

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 taper gib

2шт.

21

152701C11

HUB ASSY, rocker shaft support, Includes ref nos 22 and 23

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

5шт.

20897R1

BOLT,Short NK, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 znd sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

22

577978R91

NEEDLE BEARING

ASSY, rocker shaft hub needle

2шт.

23

460551R91

OIL SEAL

SEAL, rocker shaft support hub oil

4шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 28NF taper thread str lub

2шт.

25

152702C11

LEVER ASSY, grain pan drive LH, Includes ref nos 26 and 27

1шт.

142523

DRIVING SPROCKET

Pin, Grooved, 1/4" x 2", Type A

1шт.

26

564103R91

COMPOSITE RING

BUSHING, return pan front pivot

1шт.

27

583768R91

COMPOSITE RING

BUSHING, grain pan

1шт.

28

152781C1

BOLT, grain pan hanger

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

169256C1

DISC

WASHER, grain pan lever

1шт.

29

152703C11

LEVER ASSY, grain pan drive RH, Includes ref nos 30 and 31

1шт.

30

564103R91

COMPOSITE RING

BUSHING, return pan front pivot

1шт.

31

583768R91

COMPOSITE RING

BUSHING, grain pan

1шт.

32

152781C1

BOLT, grain pan hanger

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

169256C1

DISC

WASHER, grain pan lever

1шт.

33

607045R1

CRANK, rocker shaft Pitman

1шт.

34

26540D

RING, SNAP

RING, Pitman crank snap

1шт.

35

155760C92

PULLEY ASSY, shaker shaft driven, 20 in. OD, 2-7/8 bore

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach.

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

36

607046R1

HUB, Pitman drive

1шт.

37

168190C2

STUD

Pitman idler arm

1шт.

19766R1

LOCK NUT,3/4"-10

NUT, 3/4 nylon insert

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

23245R1

WASHER

25/32 x 1-3/4 x 7 ga C-Z

1шт.

38

161386C1

NUT

Pitman stud

1шт.

39

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

Pitman drive pulley stud roller

1шт.

40

155578C91

SECTION ASSY, shoe LH

1шт.

40

155579C91

SECTION ASSY, shoe RH, Includes ref no 41

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

8шт.

935736R1

NUT, WING

NUT, 5/16-18 wing

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z truss-hd whiz lock

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

41

554547R91

COMPOSITE RING

BUSHING ASSY, shoe rear hanger hub

2шт.

42

152628C92

LEVER ASSY, rear shoe hanger, Includes ref no 43

2шт.

43

554547R91

COMPOSITE RING

BUSHING, shoe rear hanger arm

2шт.

44

152640C91

CHANNEL ASSY, rear shoe hanger, Includes ref no 45

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

12шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2 x 2 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

12шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

45

564103R91

COMPOSITE RING

BUSHING, shoe rear hanger

2шт.

46

617243R1

ROD, shoe tie

1шт.

120376

NUT,5/16"-18, G5

4шт.

106969R1

WASHER

11/32 x 1-1/4 x 16 ga C-Z

4шт.

47

617229R11

SLIDE ASSY, shoe LH

1шт.

18253R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 ESNA stop

1шт.

48

617230R11

SLIDE ASSY, shoe RH

1шт.

18253R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 ESNA stop

1шт.

49

614879R92

SIEVE ASSY, adj shoe

1шт.

50

617227R11

HANGER ASSY, shoe front, Includes ref no 51

2шт.

18802R1

SCREW,Hex, 7/16"-14 x 3", G8

BOLT, 7/16 x 3 C-Z hex-hd mach

2шт.

18798R1

BOLT,Hex, 7/16"-14 x 2", G2

7/16 x 2 C-Z hex-hd mach

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

22196R1

WASHER

15/32 x 7/8 x 16 ga C-Z

2шт.

51

554547R91

COMPOSITE RING

BUSHING, shoe front hanger upper

2шт.

52

617224R11

PIVOT ASSY, shoe rear hanger LH

1шт.

52

617225R11

PIVOT ASSY, shoe rear hanger RH, Includes ref no 53

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

4шт.

169257C1

WASHER, shoe hanger

1шт.

53

583768R91

COMPOSITE RING

BUSHING ASSY, shoe hanger rear pivot

2шт.

54

617222R22

STRAP ASSY, shoe rear hanger

2шт.

18797R1

BOLT

7/16 x 1-3/4 C-Z hex-hd mach.

2шт.

272683

SPINDLE

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

169256C1

DISC

WASHER, shoe hanger

2шт.

55

154284C1

SEAL, shoe side rear

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4 x 5/8 C-Z slt-pan-hd mach

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

8шт.

56

152692C1

SECTION, shoe bottom, grain and rice

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

20шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z tr-hd whiz lock

20шт.

57

564405R1

RING, SNAP

SNAP RING, Pitman drive hub

2шт.

58

152691C1

SECTION, shoe bottom cross

1шт.

59

935340R11

SECTION ASSY, shoe bottom, perforated screen attach and edible beans

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

6шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z tr-hd whiz lock

6шт.

60

153198C11

SIEVE ASSY, shoe bottom, perforated screen attach and edible beans

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

11шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

7шт.

61

153197C11

SECTION ASSY, shoe, perforated screen attach and edible beans

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

11шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

14шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan hd

7шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

SCREW, 1/4 x 3/4 C-Z truss-hd whiz lock

14шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

18шт.

62

M22613

SPACER,1/2" X-Strng Pipe x 1"

shoe hanger bolt pipe

2шт.

63

572139R1

RETAINER

Pitman brg

1шт.

64

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF 90 deg angle lub

3шт.

65

1094545

FITTING, 1/8-27 PTF 30 deg angle lub

1шт.

66

168543C1

HOUSING ASSY, Pitman bearing front

1шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 C-Z hex-hd mach

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

67

168545C91

HOUSING ASSY, Pitman bearing rear, Includes ref nos 13 and 14

1шт.

425-1516

JAM NUT,Jam, 1"-14, G5

1-14 C-Z hex jam

1шт.

68

21450R1

ADAPTER,1/4"-1/8 NPTF

1/4-28 str lub fitting, For use w/housing assy 168545C91, Serial no 2298 and above

1шт.

69

937777R91

HOSE ASSY, grain pan 16 inches, For use w/housing assy 168545C91, Serial no 2298 and above

1шт.

144574

RIGID TUBE

NUT, 1/8 pipe lock

1шт.

70

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, Pitman drive pulley stud roller

1шт.

70

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

71

651814R1

BEARING CUP

CUP, Pitman drive pulley stud bearing

1шт.

72

16964R91

FITTING

1/4 90 deg angle lub, For use w/housing assy 168545C91, Serial no 2298 and above

1шт.

73

168333C1

ANGLE, lub fitting support, Serial no 2298 and above

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
